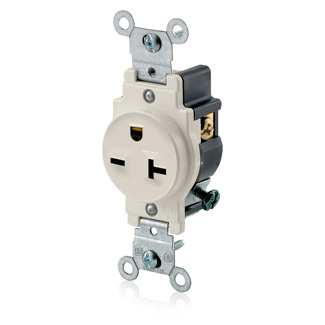

Leviton 5821-T Straight Blade Single Receptacle 20A 250V Light Almond

Product Description

Leviton 5821-T is a 20 amp, 250-volt single receptacle designed for commercial use. This model features a side-wired connection and is made of durable nylon in light almond color. It is built for strength and reliability in demanding environments like hotels and offices.

• 20 amp, 250 volt rating
• Self-grounding with side wired connection
• Designed for installation in wall boxes

Product Highlights

This receptacle meets NEMA 6-20R standards and can handle two poles and three wires. It is UL listed and CSA certified for safety and performance.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5821-T

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• NEMA Rating: 6-20R
• Material: Nylon
• Ground Type: Grounding
• Connection Type: Side Wired
• Dimensions: 4.06 inches H x 1.38 inches W x 1.06 inches D
• Temperature Rating: -40 to +60 degrees C
• Dielectric Strength: 2000 V
• Warranty: 10 years
