Product Description

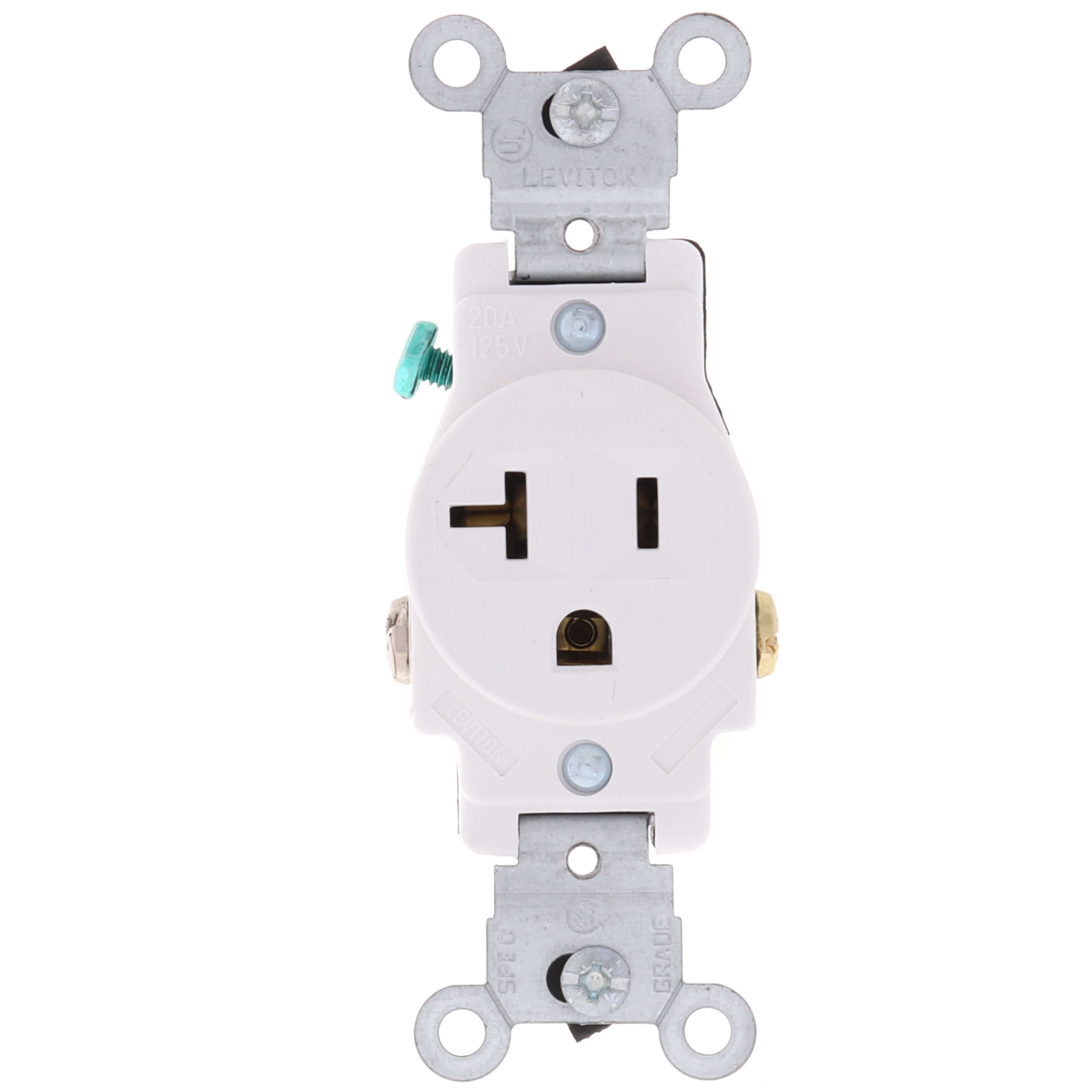

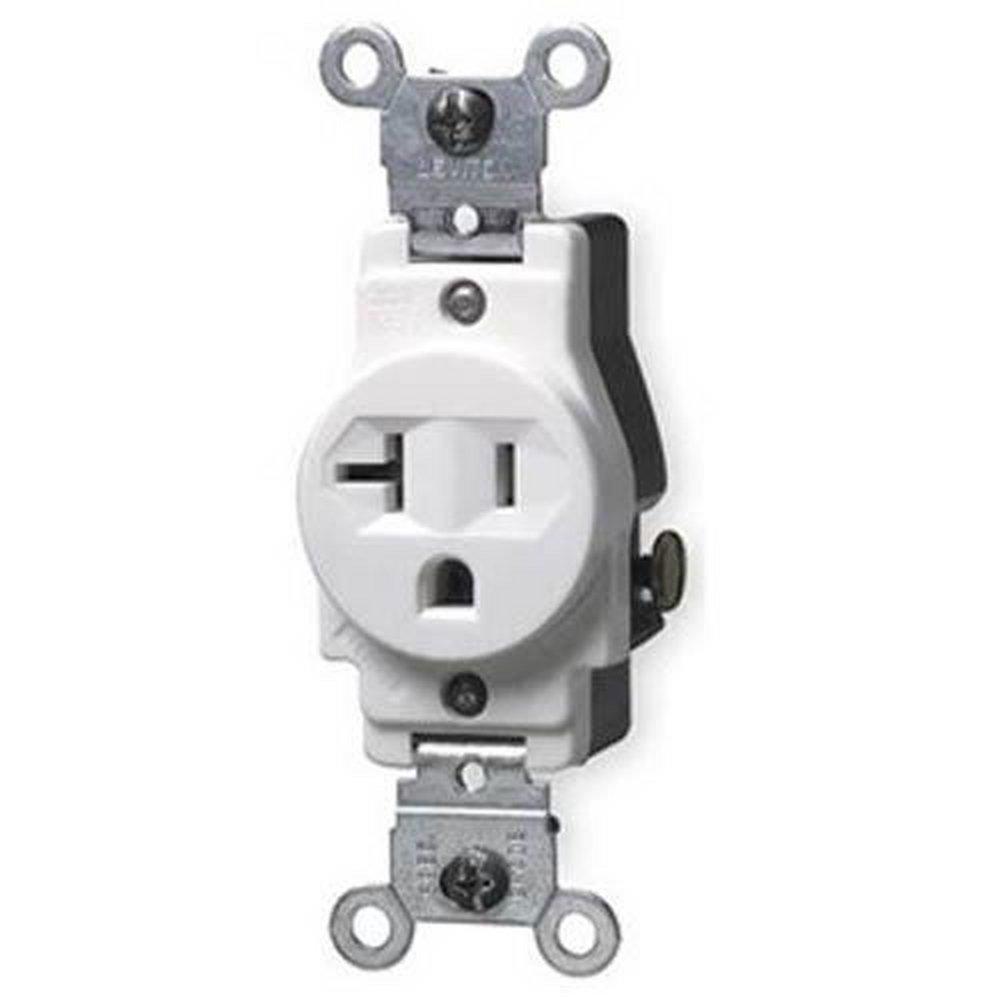

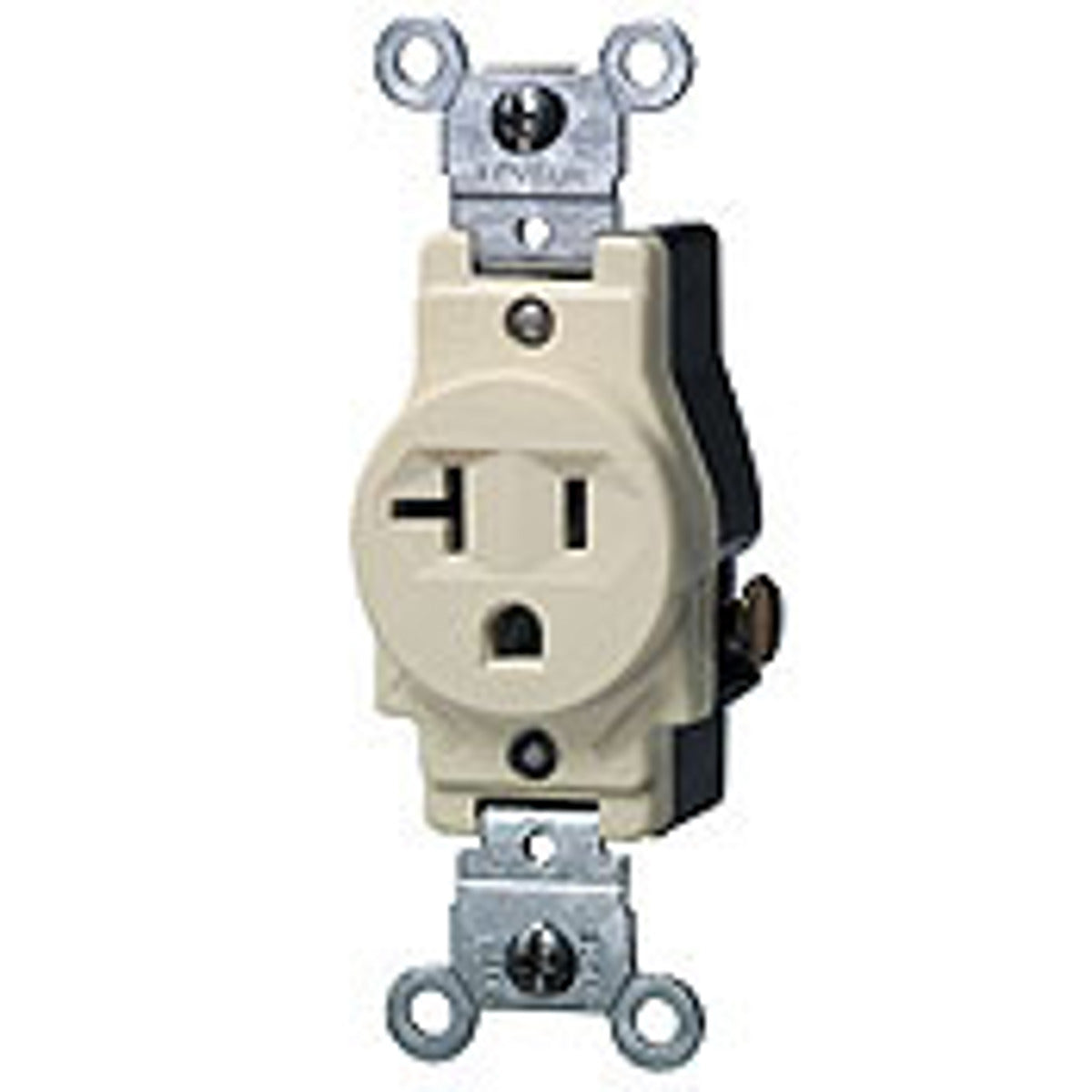

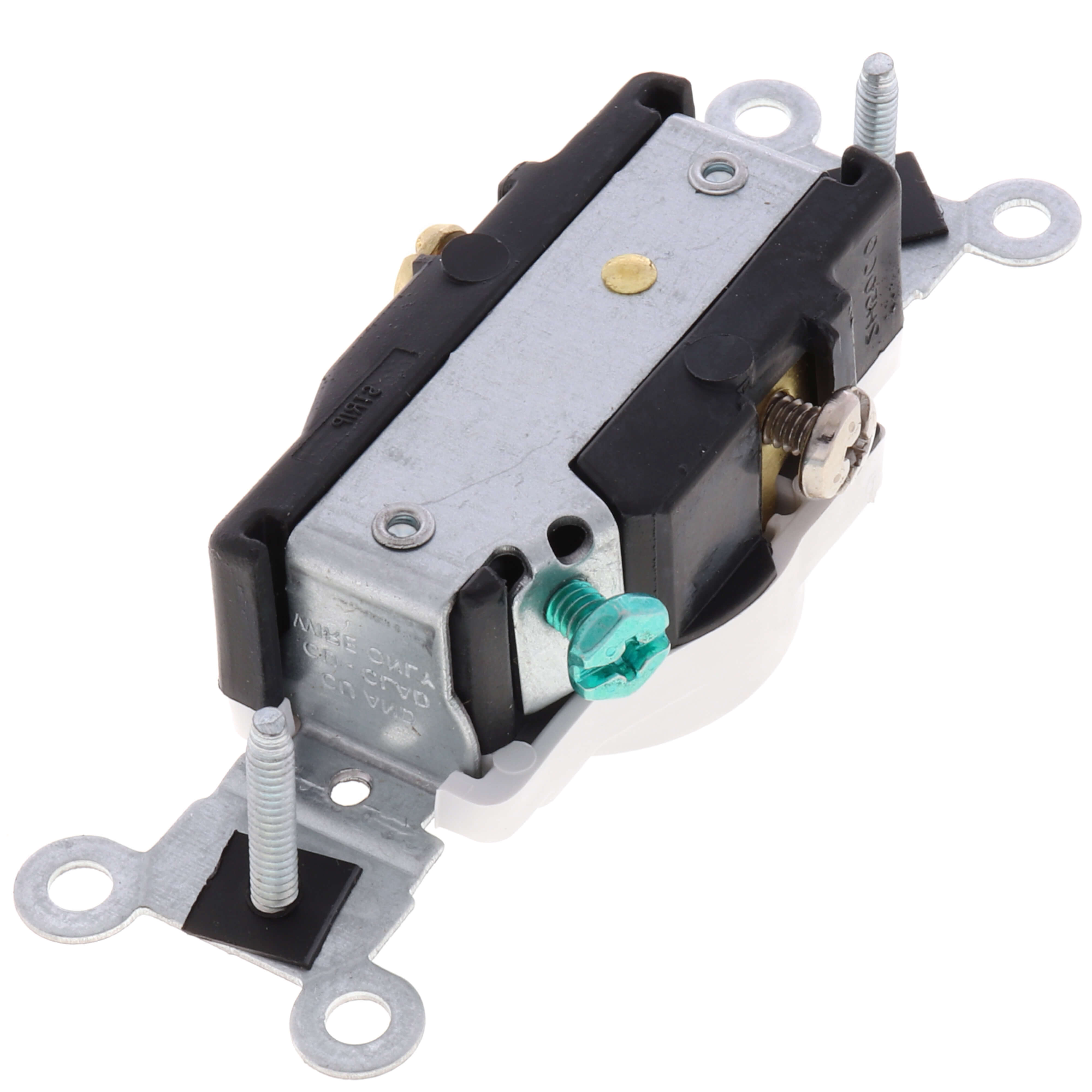

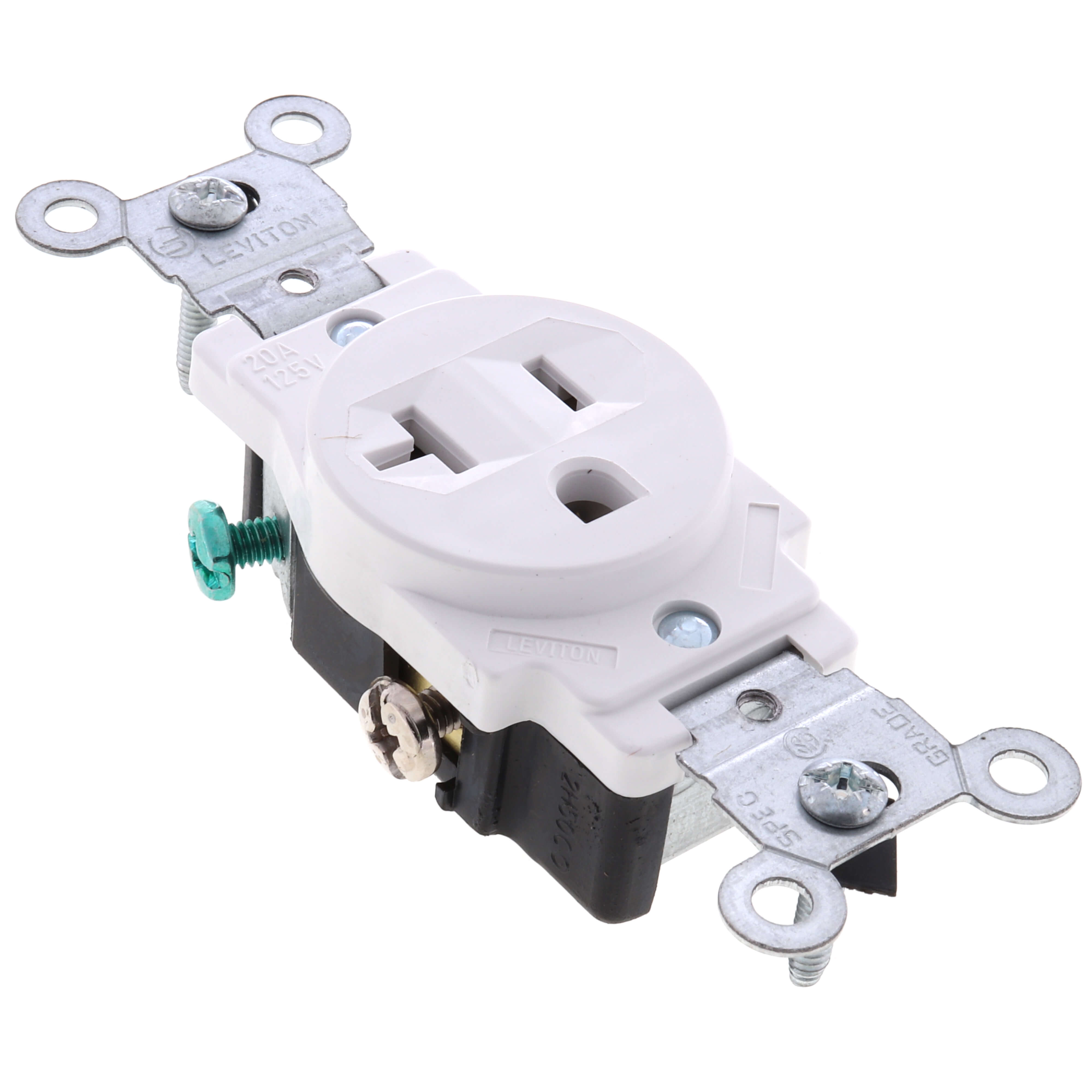

The Leviton 5801-W is a 20-Amp, 125-Volt, narrow body single receptacle with a straight blade, designed for commercial use and grounding. This heavy-duty receptacle is widely specified for commercial building projects. It is suitable for hotels, schools, hospitals and commercial office buildings.
- 20-Amp
- 125-Volt
- Narrow Body
Product Highlights
This receptacle is built to withstand demanding environments and provide a reliable, durable electrical connection.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5801-W
-
Country of Origin: Mexico
Technical Specifications
-
Color: White
-
Voltage: 125 Volts
-
Material: Steel
-
Compatible Devices: Television
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: 5801-W
-
Type: Single, Narrow
-
Constructional Feature: Impact Resistant
-
Configuration: 5-20R
-
Voltage Rating: 125 V
-
Current Rating: 20 Ampere
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
Wiring: Side
-
Grade: Commercial, Specification
-
Approval: UL 498, CSA C22.2, NOM 057
-
Applicable Standard: ANSI C73, NEMA WD-6
-
Power Rating: 1 HP
-
Contact Material: Brass
-
Strap Material: Zinc Plated Steel
-
Temperature Rating: -40 to 60 Deg C
-
Amperage: 20 A
-
NEMA Rating: 5-20R
-
Enclosure: NEMA WD-2/WD-6
-
Terminal: Side Wire
-
Phase: 1-Phase
-
Horsepower: 1 hp
-
Terminal Type: Side Wired
-
Operating Temperature: -40 degrees C
-
Dielectric Strength: 2000 V
-
Flammability: Rated V-2 per UL 94
-
Body Material: Nylon
-
Face Material: Nylon
-
Line Contacts: Brass Double Wipe .031 Thick
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Side Wire
-
Grounding Screw: Brass 8-32
-
Terminal Screws: Brass 8-32
-
Terminal Accom.: 14-10 AWG
-
Current Limiting: Full Rated Current
-
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Screw Terminal Torque: 14-18 in-lbs
-
Mounting Type: Wallbox, Flush
-
Connection Type: Side Wire
-
Number of Phases: 1 Phase
-
Wire Count: 3
-
Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
-
Wire Size: 14-10
-
Manufacturer: LEVITON
-
Application: Commercial Applications
-
Country Of Origin: MX
-
Standards/Approvals: ANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM 057|Federal Specification WC-596|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
GTIN: 00078477249208
-
UPC: 078477249208
-
Brand Name: Leviton
-
Sub Brand: Commercial Receptacles
-
12-Digit UPC: 078477249208
-
Finish: Matte
-
Product ID: Ratings are permanently marked on device
-
RoHS Compliant: True
-
Pole: 2
-
Wire: 3
-
Feature: Indented Face
-
Device Type: Single Receptacle Outlet
-
Catalog Description (MFR): 20-Amp, 125-Volt, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding, White
-
Invoice Description (MFR): SINGLE OUTLET
-
Safety Data Sheet (SDS) Flag: Y
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: SINGLE OUTLET
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UNSPSC: 39121406
-
Color Family: White
-
Ground: Grounded
-
Amperage Rating: 20A
-
No. of Poles: 2
-
No. of Wires: 3
-
At Rated Voltage: 1 HP
-
ANSI: C-73
-
CSA C22.2 No. 42: File 152105
-
NOM: 057
-
UL Fed Spec WC-596: File E13399
-
UL498: File E13399
-
Brand Part Number: 5801-W
-
Connector Type: Plug In
-
Catalog Number: 5801-W
-
Made in USA: No
-
Number of Outlets: 1
-
Cross Reference Products: RR201W, RR201W, 5351W
-
IGCC: 4536
-
Vendor: 78477
-
Family group: WIRING DEVICES
-
WES Product code: 2734314780
-
Alternative Part Number: 7366056
-
Amperage Rating UOM: A
-
Horsepower UOM: hp
-
IDEA Index ID: 7366056
-
Voltage Rating UOM: VAC
-
Blade Type: Straight Blade
