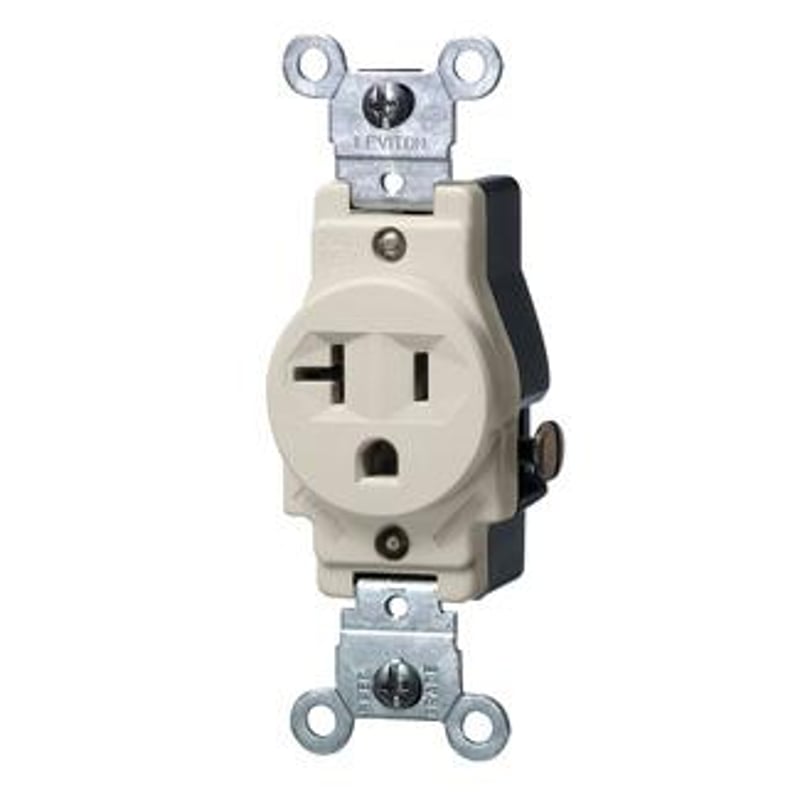

Leviton 5801-T Single Receptacle 20 Amp 125 Volt

Product Description

The LEVITON 5801-T is a straight blade single receptacle. This commercial grade receptacle is designed to withstand demanding environments. It has a voltage rating of 125 VAC and amperage of 20 A. Suitable for hotels, schools, hospitals and commercial office buildings.

• 20-Amp-125-Volt
• Narrow Body Single Receptacle
• Straight Blade

Product Highlights

The Leviton 5801-T is ideal for commercial applications. It features heavy duty brass power contacts for maximum conductivity and plug retention.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5801-T
• Country of Origin: Mexico

Technical Specifications

• Color: Light Almond
• Voltage: 125 VAC
• Total Power Outlets: 1
• Type: Single
• Grade: Commercial Specification Grade
• Material: Nylon
• Enclosure: NEMA WD-2/WD-6
• Horsepower: 1 hp
• NEMA Rating: NEMA 5-20R
• Terminal Type: Side Wire
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Blade Type: Straight Blade
• Grounding: Grounding
• Body Type: Narrow
• Manufacturer Part Number: 5801-T
• Standards/Approvals: ANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL 498 File No. E13399|UL Federal Specification WC-596 File No. E13399|UL 94 Flammability Rating
• Wire Size: 14-10
• Dielectric Strength: 2000 (Min.)
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Connection: Side Wired
• Application: Commercial
• Phase: 1
• Mounting: Wallbox
• Current Rating: 20 Ampere
• Wiring: Side
• Approval: UL 498, CSA C22.2, NOM 057
• Applicable Standard: ANSI C73, NEMA WD-6
• Power Rating: 1 HP
• Contact Material: Brass
• Strap Material: Zinc Plated Steel
• Configuration: 5-20R
• Constructional Feature: Impact Resistant
• Ground Type: Grounding
• Operating Temperature: -40 0C to 60 0C
• Flammability: Rated V-2 per UL 94
• AC Horsepower Ratings At Rated Voltage: 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Single Receptacle Outlet
• Feature 4: Smooth Face
• NEMA: WD-2 WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Wiring Method: Side
• Brand Name: Leviton
• Product Name: 20 Amp Single Receptacle/Outlet, Commercial Grade
• Product Type: Power Socket
• Receptacle Type: NEMA 5-20R
• Poles: 2
• Wires: 3
• Voltage Rating: 125 V
