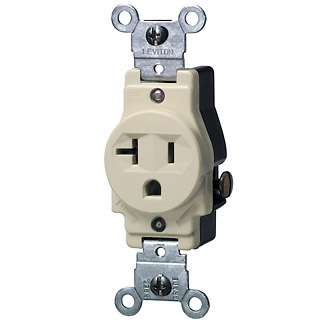

Leviton 5801-I 20A 125V Nema 5-20R Single Receptacle Ivory

Product Description

The LEVITON 5801-I is a commercial specification grade single receptacle rated at 20 amps and 125 volts. It carries a NEMA 5-20R configuration with a 2-pole, 3-wire grounding design and a smooth face finish in ivory. Side-wiring terminals allow for straightforward conductor termination during rough-in or device replacement. This receptacle is built for commercial and light industrial applications where a durable, code-compliant outlet is required. Electricians install this device in commercial offices, healthcare facilities, schools, and similar occupancies where a dedicated 20-amp circuit and single-outlet configuration are specified.

The 5801-I suits branch circuits wired with 12 AWG conductors on 20-amp breakers, consistent with NEC requirements for commercial wiring. Its single-outlet format is commonly specified where dedicated equipment loads are anticipated, such as medical devices, lab equipment, or commercial appliances. The ivory finish blends with standard commercial wall plate colors. This device is appropriate for new construction and retrofit installations in commercial and institutional settings.

Key Features

• Commercial specification grade construction for demanding installation environments
• 20-amp, 125-volt rating supports dedicated equipment branch circuits
• NEMA 5-20R configuration accepts both 15-amp and 20-amp plugs
• 2-pole, 3-wire grounding design for safe equipment grounding
• Side-wire terminals for reliable conductor termination
• Smooth face finish in ivory for a clean, professional appearance

Compatibility

Designed as an OEM-style commercial specification grade single receptacle compatible with standard single-gang electrical boxes on 20-amp, 125-volt branch circuits wired to NEMA 5-20R requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning any wiring work. Use side-wire terminals with properly torqued connections per the terminal markings on the device. Do not exceed the 20-amp or 125-volt ratings marked on the receptacle.

Technical Specifications

• Amperage: 20 amps
• Voltage: 125 volts
• NEMA Configuration: 5-20R
• Poles: 2-pole
• Wires: 3-wire
• Grounding: Yes
• Wiring Method: Side wire
• Grade: Commercial Specification Grade
• Color: Ivory
• UPC: 078477249109

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5801-I
