Product Description

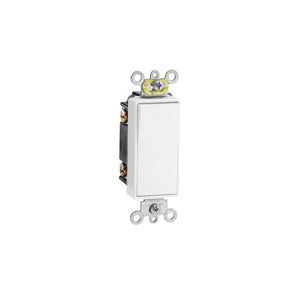

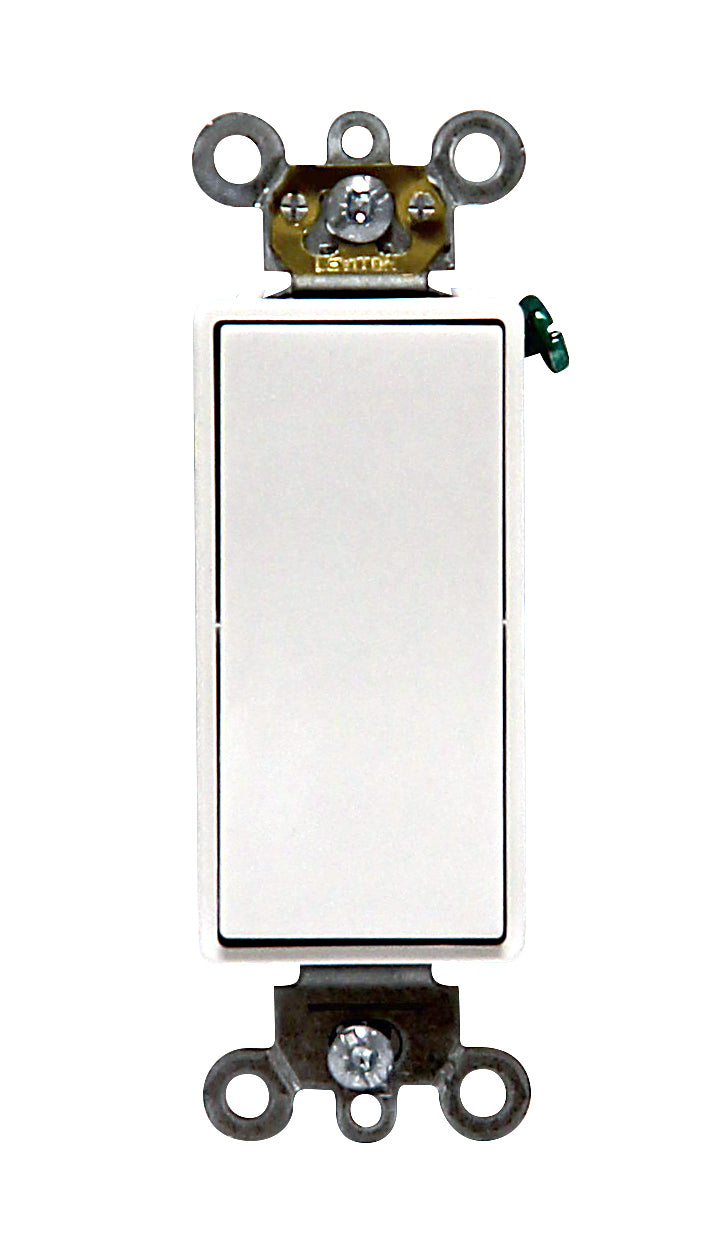

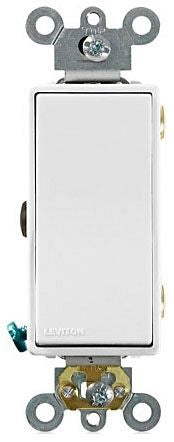

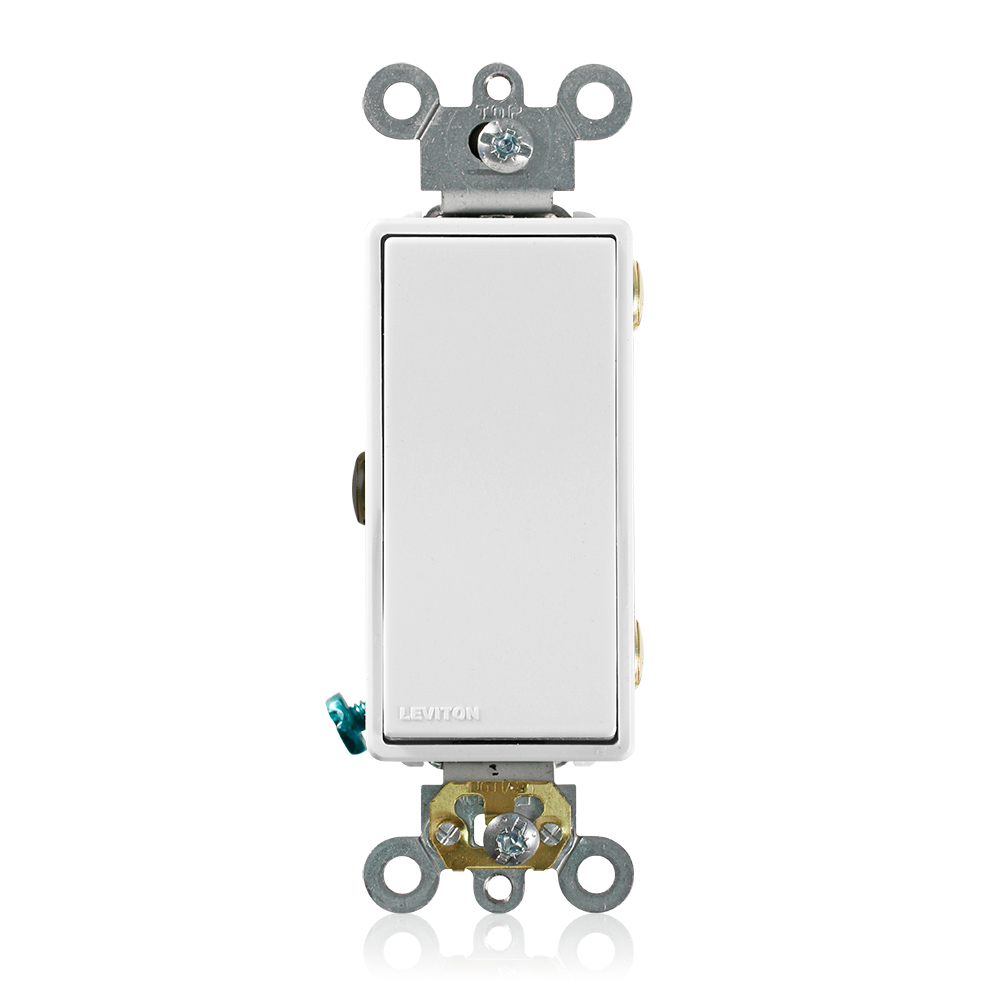

The Leviton 5693-2W is a self-grounding AC quiet switch with a voltage range of 120 to 277 volts and a current rating of 15 amps. This switch is designed for commercial applications and is ideal for controlling lighting from multiple locations. It is compatible with both back and side wiring, enhancing installation flexibility.
- Self-grounding clip for easy installation
- Rated for commercial use with a 10-year warranty
- AC quiet switch minimizes noise during operation
Product Highlights
Rocker switch with a low-profile design suitable for any space. Meets commercial grade specifications with high durability, ensuring long-lasting performance.
Product Information
Standard Information
-
Catalog Number: 5693-2W
-
Brand: Leviton
Technical Specifications
-
Type: 3-Way Rocker Switch
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Horsepower Rating: 1/2 hp at 120 VAC, 2 hp at 277 VAC
-
Material: Impact Resistant Thermoplastic
-
Environmental Conditions: -40 to 120 degrees C
-
Operating Cycles: 50,000 cycles
-
Mounting Type: Box
-
Connection Type: Back Wired; Side Wired
-
Standards: UL/CSA certified
