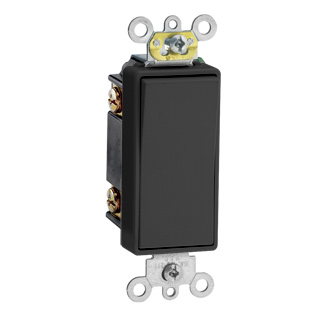

Leviton 5693-2E 120/277 Vac 15 Amp 2 Hp 3-Way Black Thermoplastic Self Grounding Rocker Quiet Switch

Product Description

The Leviton 5693-2E is a rocker switch designed for commercial applications. It operates at voltages ranging from one hundred twenty to two hundred seventy-seven volts, with a current capacity of fifteen amps. This switch is suitable for use with both conventional and fluorescent lights, offering versatility in installation.

• Three-way design allows control of the same device from multiple locations.
• Self-grounding feature enables simple installation.
• Constructed from thermoplastic for durability in various environments.

Product Highlights

Engineered for commercial use, this switch combines reliability with user-friendly features, making it ideal for both residential and commercial setups.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5693-2E

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Horsepower Rating: 1/2 hp at 120 VAC; 2 hp at 240/277 VAC
• Dimensions: 4.06 inches H x 1.76 inches W x 1.42 inches D
• Material: Thermoplastic
• Operating Temperature: -40 to 120 degrees C
• Contact Rating: 15 A at 120/277 VAC
• Number of Poles: 3
• Mounting Type: Box
• Grounding: Self-grounding
• Standard: UL Listed, CSA Certified
