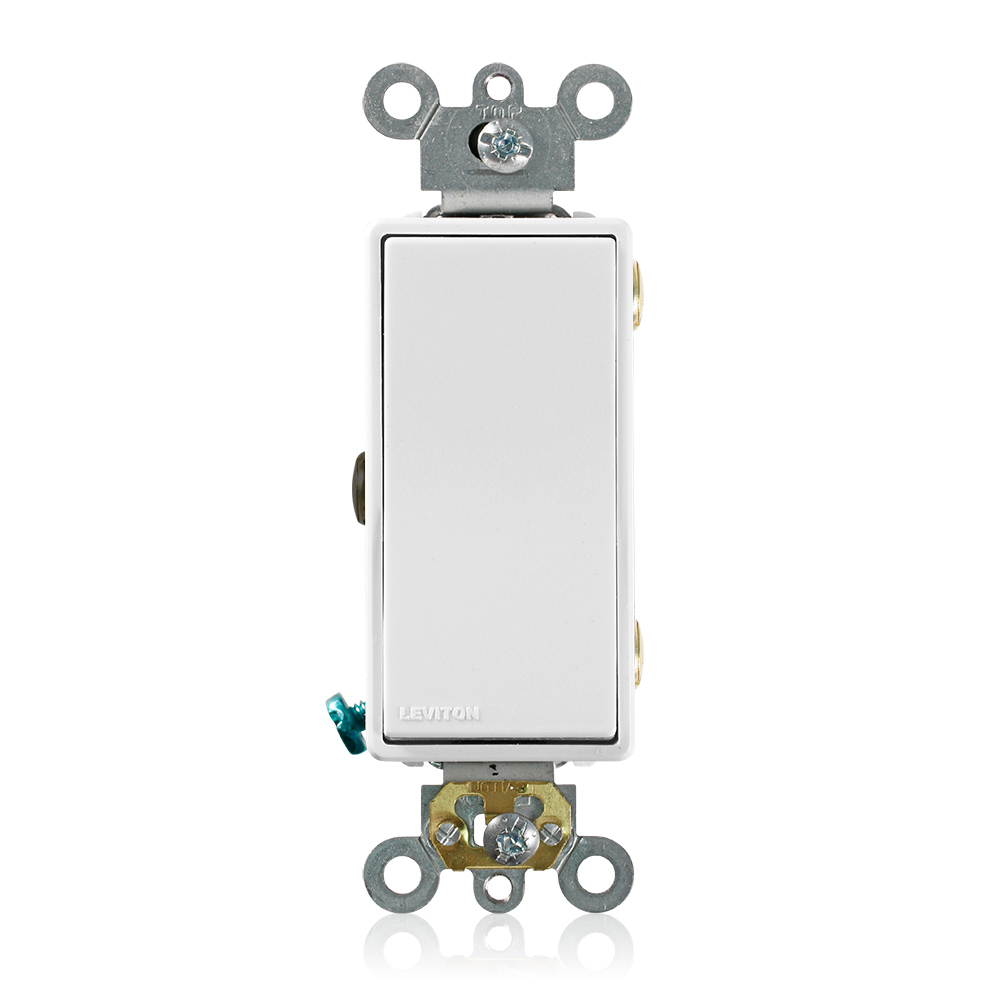

Leviton 5693-02W 3-way Rocker Switch 15A 120/277V White

Product Description

The LEVITON 5693-02W is a Decora Plus Rocker 3-Way AC Quiet Switch rated for commercial and residential wiring applications. Built to Commercial Spec Grade standards, this switch delivers reliable performance at 15 amps and 120/277 volts, making it suitable for both standard 120-volt residential branch circuits and 277-volt commercial lighting loads. The self-grounding design simplifies installation by eliminating the need for a separate ground wire connection to the device. Back and side wiring options provide flexibility for different box configurations. The rocker-style Decora face accepts standard Decora wallplates. Licensed electricians and commercial electrical contractors are the primary installers of this device.

This switch is intended for 3-way switching applications where a load must be controlled from two locations, a common setup in stairwells, hallways, and large commercial rooms. The 120/277-volt dual voltage rating makes it appropriate for use in commercial lighting circuits fed from either standard residential panels or 277-volt commercial distribution systems. The 15-amp rating covers the majority of general lighting branch circuit loads encountered in both light commercial and residential construction.

Key Features

• 15-amp, 120/277-volt rating supports both residential and commercial lighting circuits
• 3-way configuration allows control of a single load from two switch locations
• Commercial Spec Grade construction for durability in high-use environments
• Self-grounding design reduces installation steps
• Back and side wiring options accommodate varied box and conduit configurations
• Decora rocker face accepts standard Decora-style wallplates

Compatibility

Designed as an OEM-style replacement or new-installation 3-way switch compatible with standard single-gang Decora wallplates and residential or commercial electrical boxes requiring a 15-amp, 120/277-volt 3-way switching device.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off and lock out the circuit breaker supplying the branch circuit before wiring or replacing this device. Verify correct 3-way traveler and common terminal wiring before energizing the circuit. Do not exceed the 15-amp current rating of this switch when sizing branch circuit loads.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Type: 3-Way AC Quiet
• Grade: Commercial Spec Grade
• Grounding: Self-Grounding
• Wiring Method: Back and Side Wired
• Color: White
• UPC: 078477789629

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5693-02W
