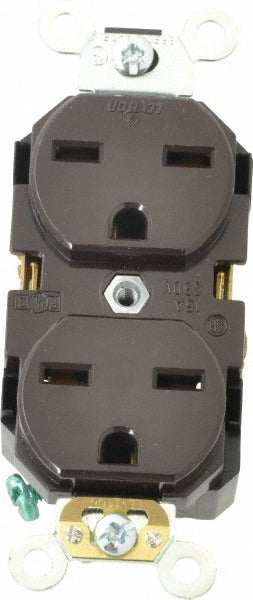

Leviton 5662 Duplex Receptacle 15A 250V Nema 6-15R Industrial

Product Description

The LEVITON 5662 is a straight blade duplex receptacle rated for 15 amps at 250 volts AC, configured to NEMA 6-15R. Built to industrial grade standards, this flush-mount outlet features a self-grounding design and a brown thermoplastic body that is impact-resistant. It is a two-pole, three-wire, single-phase device wired via back and side wiring methods. Electricians install this receptacle in commercial and industrial settings where 250-volt, 15-amp service is required, such as equipment rooms, workshops, and light manufacturing environments.

The LEVITON 5662 is suited for flush-mount installations in standard electrical boxes in industrial and commercial facilities. Its NEMA 6-15R configuration makes it appropriate for 250-volt equipment loads that do not exceed 15 amps. The self-grounding feature simplifies installation by establishing a ground connection through contact with a properly grounded metal mounting strap, reducing the need for a separate ground pigtail wire.

Key Features

• NEMA 6-15R configuration rated at 15 amps, 250 volts AC
• Industrial grade with impact-resistant thermoplastic body
• Self-grounding design for simplified grounding during installation
• Back and side wiring method for flexible installation options
• Flush mount style fits standard electrical boxes
• Meets multiple standards including UL 498, CSA C22.2 No. 42, ANSI C-73, NEMA WD-6, and NOM 057

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for industrial and commercial electrical systems requiring a NEMA 6-15R, 15-amp, 250-volt flush-mount outlet.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify with a non-contact voltage tester before beginning work. The self-grounding feature requires a properly grounded metal mounting strap to function correctly. Do not install on circuits exceeding 15 amps or 250 volts AC.
