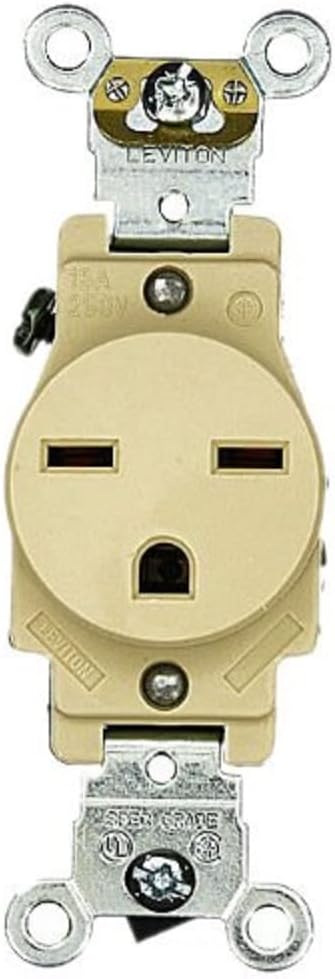

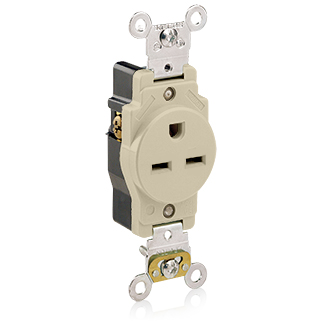

Leviton 5661-I Single Receptacle 15 Amp 250 Volt NEMA 6-15R

Product Description

Leviton 5661-I is a single receptacle rated for fifteen amps and two hundred fifty volts. The NEMA six-fifteen-R configuration suits various heavy-duty applications. This receptacle features a straight blade design, is self-grounding, and made from durable thermoplastic material.

• Compatible with 14 to 10 AWG wire terminals.
• Back and side wiring options for flexible installation.
• Rated for use in commercial and institutional settings.

Product Highlights

Leviton's industrial-grade receptacles are built for reliability in demanding environments. The solid construction minimizes wear in high-usage settings, ensuring long-lasting performance.

Product Information

Standard Information

• Catalog Number: 5661-I
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• NEMA Rating: 6-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 degrees Celsius
• Material: Thermoplastic
• Dimensions: 46 inches H x 1.31 inches W x 16 inches D
