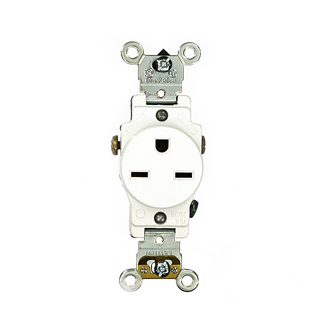

Leviton 5651-W Single Receptacle 15 Amp 250 Volt NEMA 6-15R

Product Description

Leviton 5651-W is a single receptacle designed for industrial and commercial use. This receptacle is built to handle 15 amps at 250 volts. It features a NEMA 6-15R configuration and is suitable for demanding environments.

• Heavy-duty design for robustness and reliability.
• Self-grounding and side wired for easy installation.
• Rated for use in commercial applications.

Product Highlights

This receptacle is an ideal choice for electrical contractors. It delivers both durability and safety in operation. The self-grounding feature enhances installation ease while ensuring secure electrical connections.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5651-W

Technical Specifications

• Catalog Number: 5651-W
• Voltage Rating: 250 Volt
• Amperage Rating: 15 Amp
• NEMA Rating: 6-15R
• Color: White
• Material: Thermoplastic Nylon
• Dimensions: 46 inches H x 1.31 inches W x 16 inches D
• Installation Type: Side Wired
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Warranty Length: 10 years
• Environmental Rating: Flammability (Rated V-2 per UL 94)
• Temperature Rating: -40 to +60 degrees Celsius
