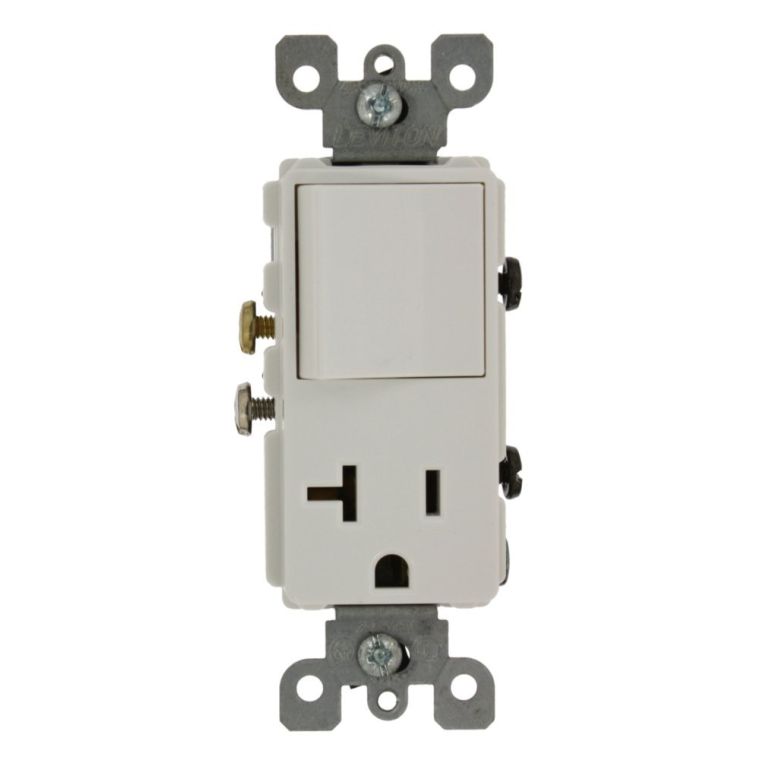

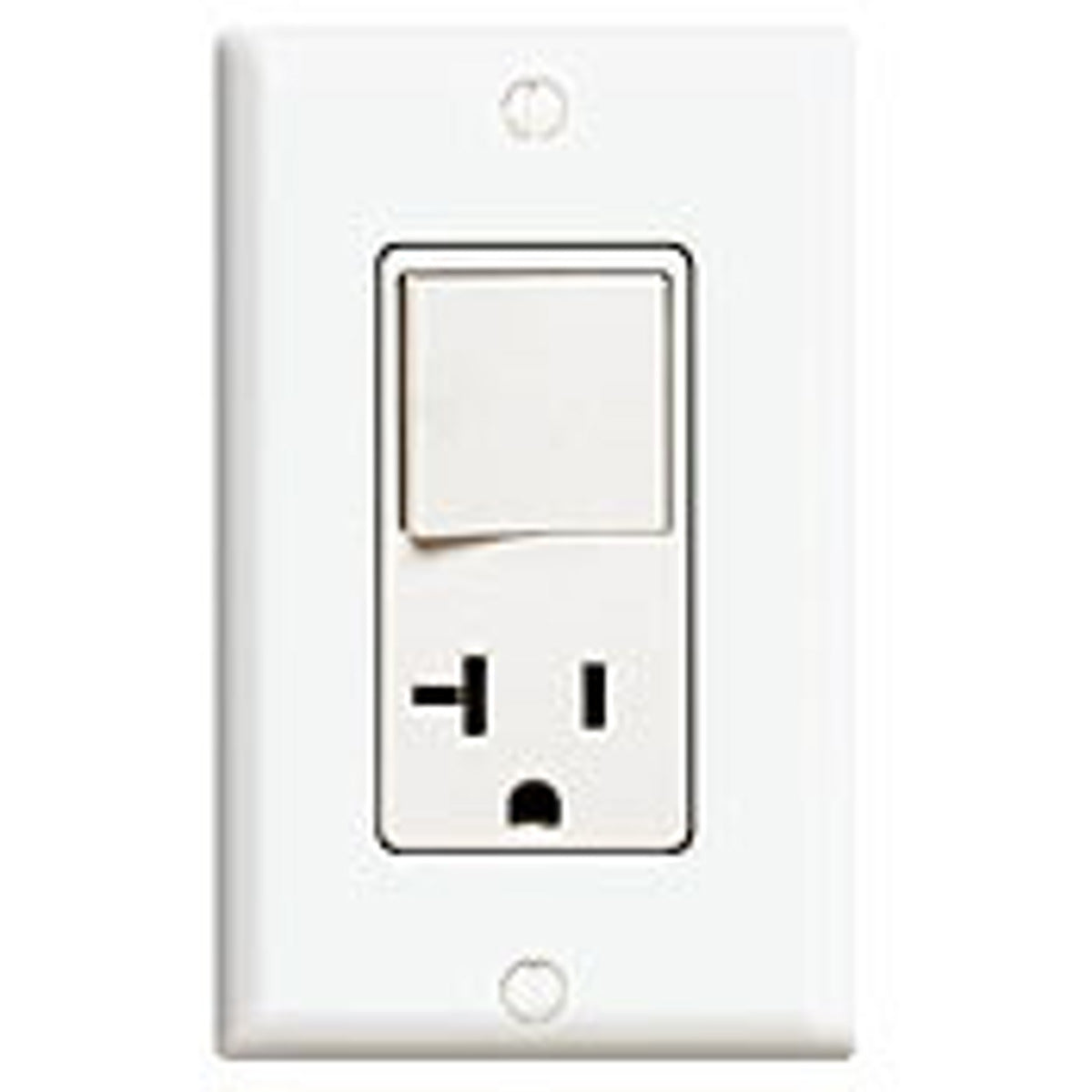

Leviton 5636-W Decora 1-Pole AC Combination Switch 20 Amp 120 Volt NEMA 5-20R

Product Description

The Leviton 5636-W Decora Combination Switch is suitable for any area in a home. This 20 Amp, 120 Volt, Decora Single-Pole AC combination switch features a simple, functional design that saves space wherever it is installed. Its impact-resistant exterior ensures damage protection and a long service life.

• Elegant Decora styling provides multiple control in a single gang wallbox.
• Impact resistant.
• Common shunted internally to all switches.

Product Highlights

This Decora combination switch is ideal for commercial applications. It features side wiring and a thermoplastic body material.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5636-W
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• MPN: 5636-W
• NEMA: 5-20R
• Type: Decora Combination Switch
• Voltage: 120 Volt
• Actuator: Rocker
• Amperage: 20 Amp
• Material: Thermoplastic
• Standard: CSA,UL
• Grounding: Grounding
• Sub Brand: Decora®
• Horsepower: 1 hp
• Product UPC: 07847788468
• Switch Type: Rocker
• 12-Digit UPC: 078477884683
• Applications: Commercial
• Product Type: COMBINATION SWITCH AND RECEPTACLE
• Body Material: Thermoplastic
• Mounting Type: Wallplate
• TC Connection: Side Wired
• Contact Rating: 120 V
• Connection Type: Side Wired
• Number of Poles: 1 Pole
• Number of Wires: 3 Wire
• Termination Type: Side Wire
• Country of Origin: Mexico
• Operating Temperature: -40 to 120 degrees C
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Application: Commercial
• Mounting: Wall
• Item Type: Switch With Receptacle
• Voltage Rating: 120 VAC (Switch);125 V (Receptacle)
• Electrical Ratings: 15 A, 125 VAC
• Enclosure: NEMA 5-20R
• HP Rating: 1/2HP-120V 2HP-240V
• Termination: Side
• Strap Material: Steel
• Standards and Certifications: UL/CSA
• Wiring: Side Wiring
• Wall Plate Included: Yes
• 1-Pole Switch Type: 120 VAC 20 Ampere
