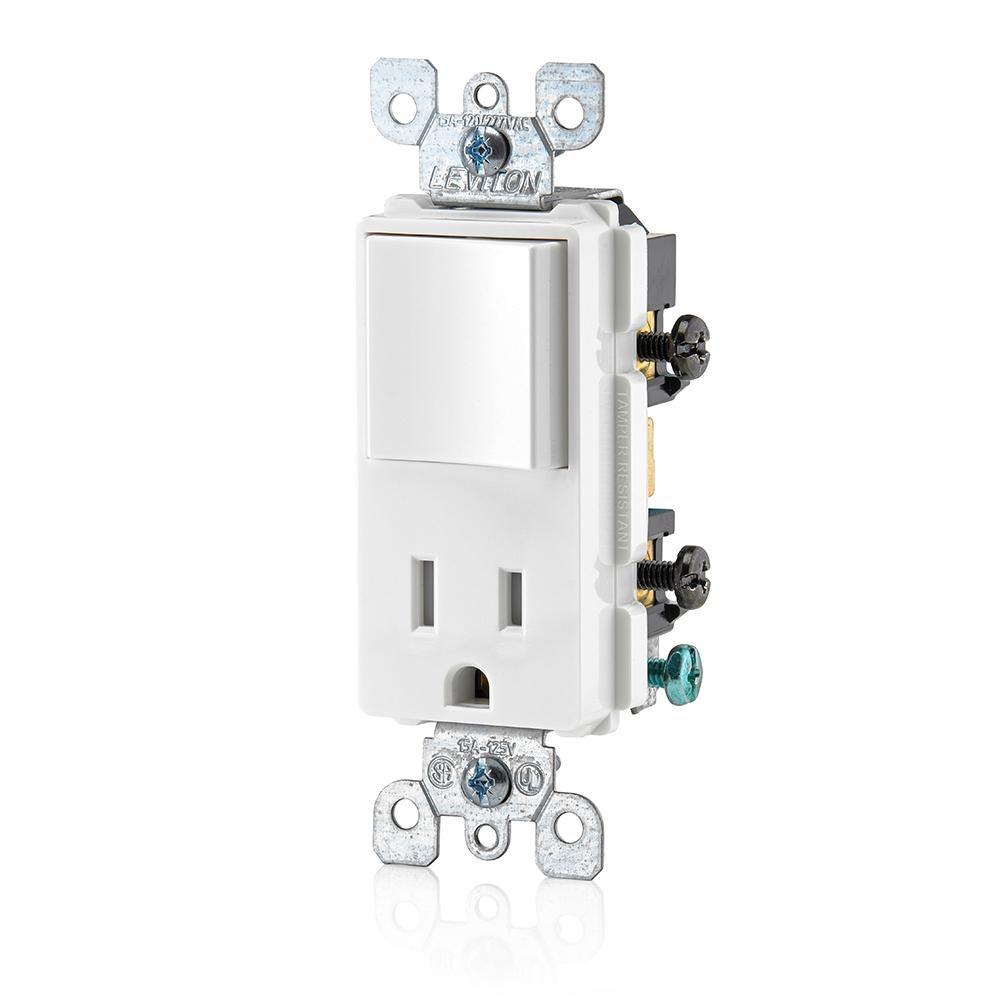

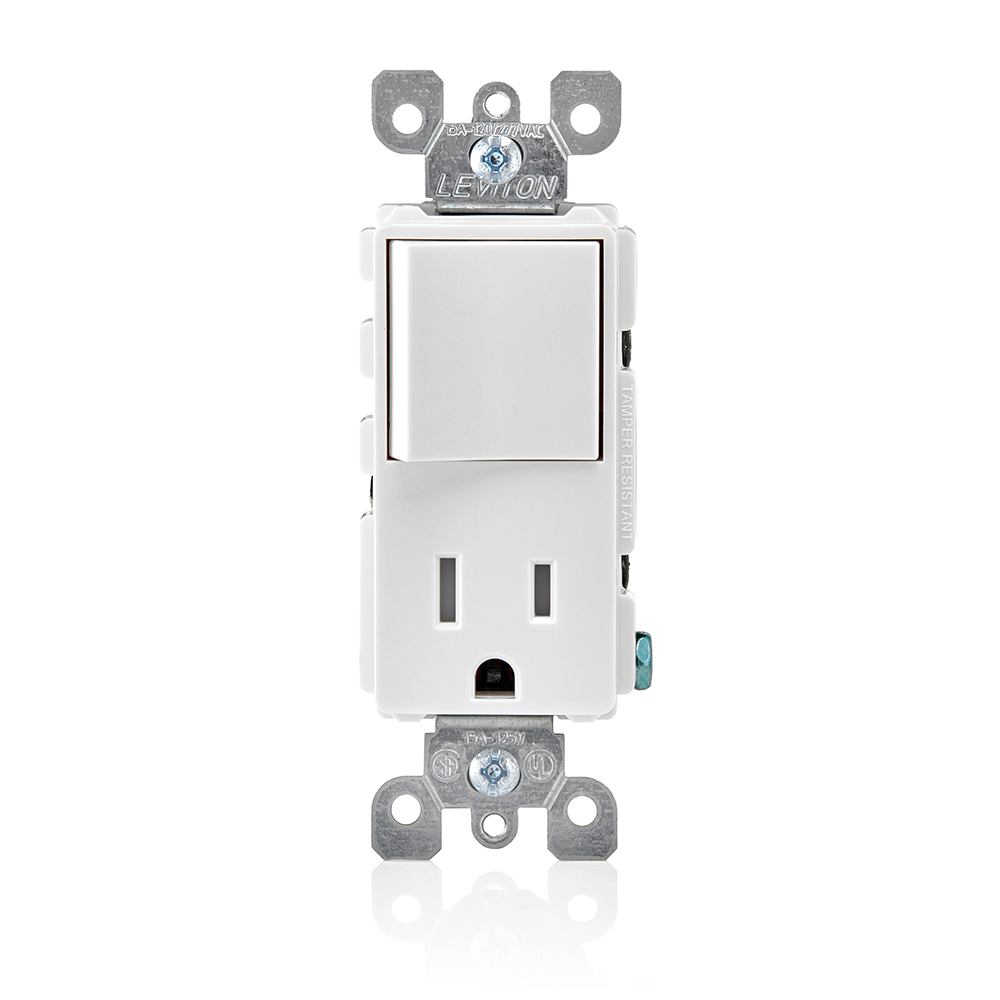

Leviton 5625-W Decora 120 Volt 15 Amp 1-Pole NEMA 5-15R AC Combination Switch and Receptacle

Product Description

The Leviton 5625-W is a 120 Volt, 15 Amp, single-pole AC combination switch and receptacle. This device combines the functionality of a switch and a receptacle in one unit. It is suitable for use in various applications where space is limited, such as in kitchens and bathrooms.

• Combination switch and receptacle design saves space.
• Used in commercial grade applications.
• Side wired for easy installation.

Product Highlights

The elegant Decora style provides a modern look while ensuring durability and functionality. It's ideal for high-use areas and is backed by a limited two-year warranty.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5625-W

Technical Specifications

• Voltage: 120 Volt
• Amperage: 15 Amp
• Horsepower Rating: 1/2 hp
• Material: Thermoplastic
• Width: 1.31 inches
• Height: 4.20 inches
• Depth: 0.93 inches
• Operating Temperature: -40 to 120 degrees C
• Standards: UL Listed, CSA Certified
• Connection Type: Side Wired
• Color: White
