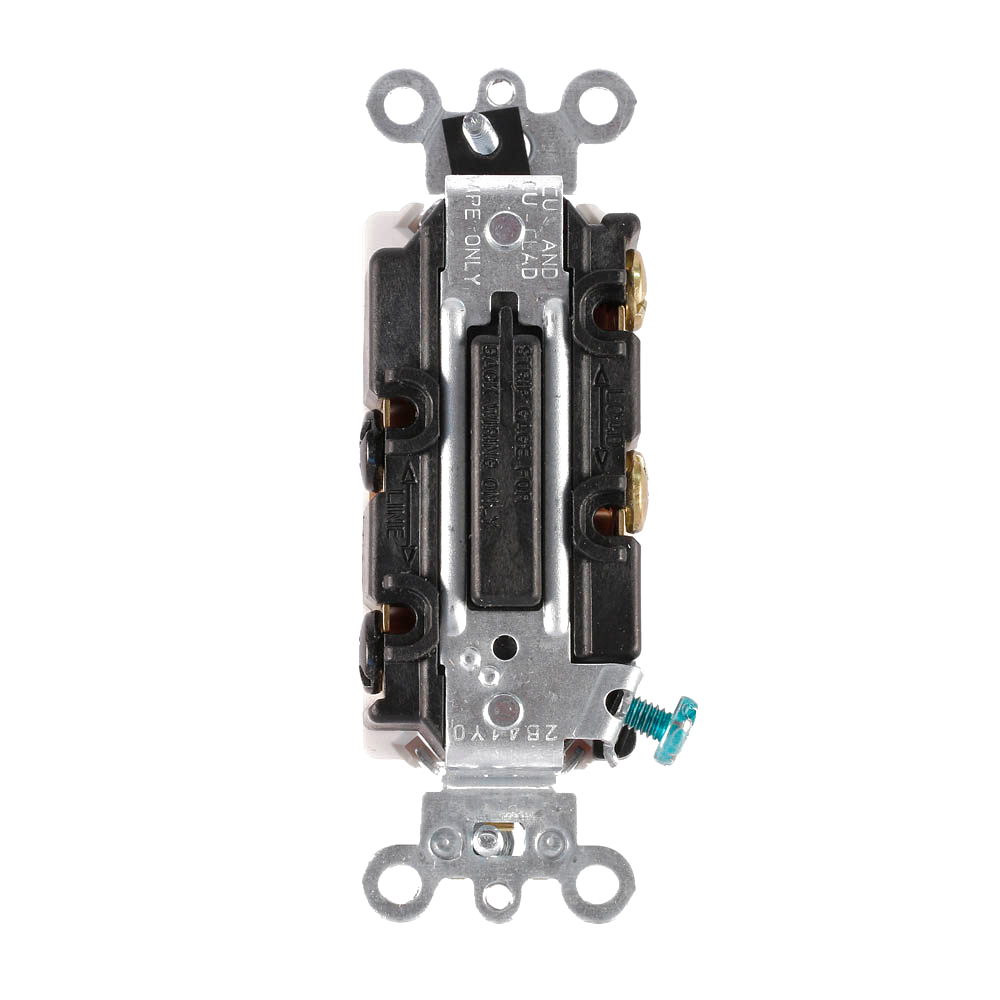

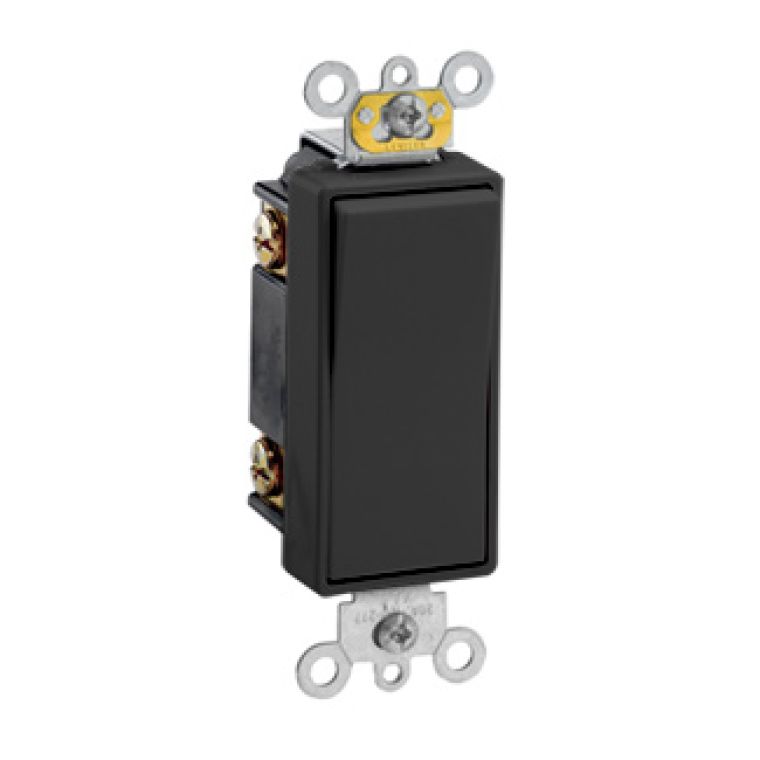

Leviton 5622-2E Decora Plus Rocker Double-Pole AC Quiet Switch 20A 120/277V

Product Description

The LEVITON 5622-2E is a Decora Plus rocker double-pole AC quiet switch. This commercial specification grade switch is rated for 20 amps and 120/277 volts. It features self-grounding and can be back and side wired for versatile installation options. Decora Plus devices combine designer styling with rugged commercial grade construction.

• Commercial grade
• Polyester construction
• 20 Amps

Product Highlights

The LEVITON 5622-2E is ideal for commercial applications requiring a durable and reliable double-pole switch.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5622-2E
• Country of Origin: Mexico

Technical Specifications

• Grade: Commercial Specification Grade
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• UL Standard: UL 20
• Grounding Screw: Plated Steel
• UL Fed Spec WS896E: File #E7458
• Function: Double-Pole
• Operating Temperature: -40 0C to 65 0C
• Temperature Rise: Maximum 30 degrees C rise
• Device Type: Rocker Switch
• Country of Origin: Mexico
• HP Rating: 1HP-120V 2HP-240V
• Amperage: 20 A
• Product ID: Stamped on Strap
• Strap Material: Steel
• CSA C22.2 No. 111: File #152105
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Termination: Back or Side Wire
• NOM: 057
• Brand: Decora Plus
• Terminal Screws: Brass
• Grounding: Self-Grounding
• Body Material: Thermoplastic Polyester
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• RoHS Compliant: FALSE
• Ground Clips: Brass
• Actuator Material: Thermoplastic
• Voltage: 120/277 VAC
• ANSI: C-73
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Screw Terminal Torque: 14-18 in-lbs
• Flammability: Rated V-2 per UL 94
• NEMA: WD-1 & WD-6
• Series: Decora Plus
• NEMA Rating: WD-1
• Material: Polyester
• AC Horsepower Ratings: HP Rating : 1HP-120V 2HP-240V
• Brand Name: Leviton
• Brand Part Number: 5622-2E
• Actuator: Rocker
• Applications: Commercial
• Connection Type: Back Wired,Side Wired
• Contact Rating: 20 A, 120/277 VAC
• Dielectric: 1500 V
• Enclosure: WD-6
• Flamability Class: Rated V-2 Per UL 94
• Horsepower: 1 hp
• Mounting Type: Box
• Number of Poles: 2 Pole
• Standard: ANSI C-73
• TC Connection: Back and Side Wired
• Temperature Rating: -40 to 120 degrees C
• Torque: 12 lb-in
• Type: Rocker Switch
• Sub Brand: Decora Plus M
• 12-Digit UPC: 078477788905
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• GTiN: 00078477788905
• Product UPC: 07847778890
