Product Description

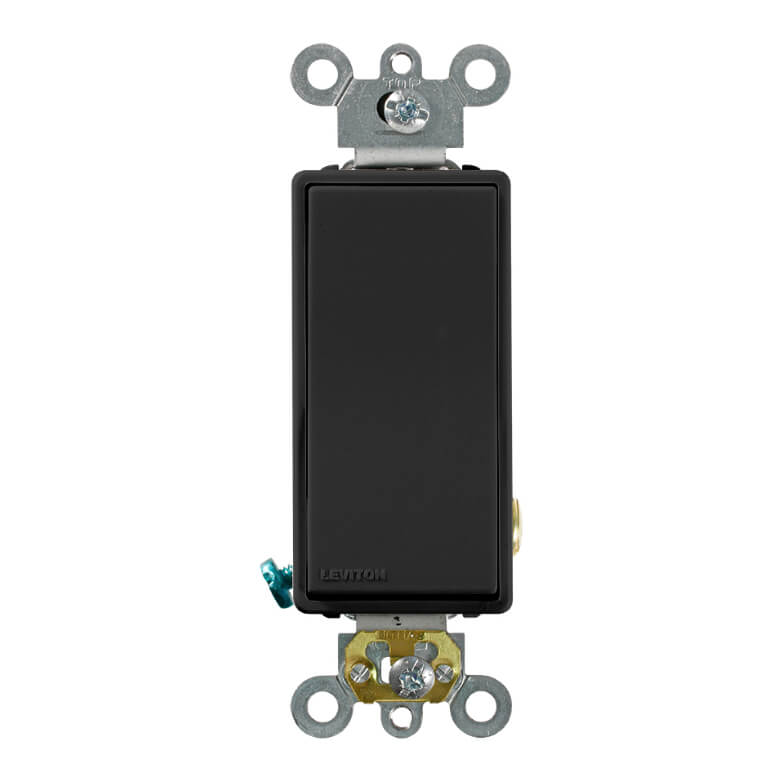

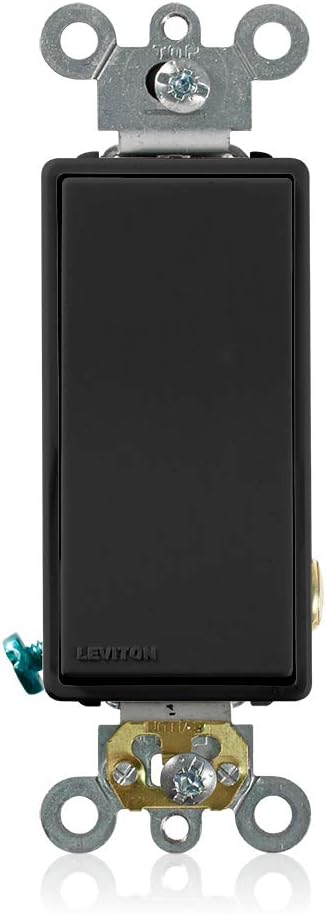

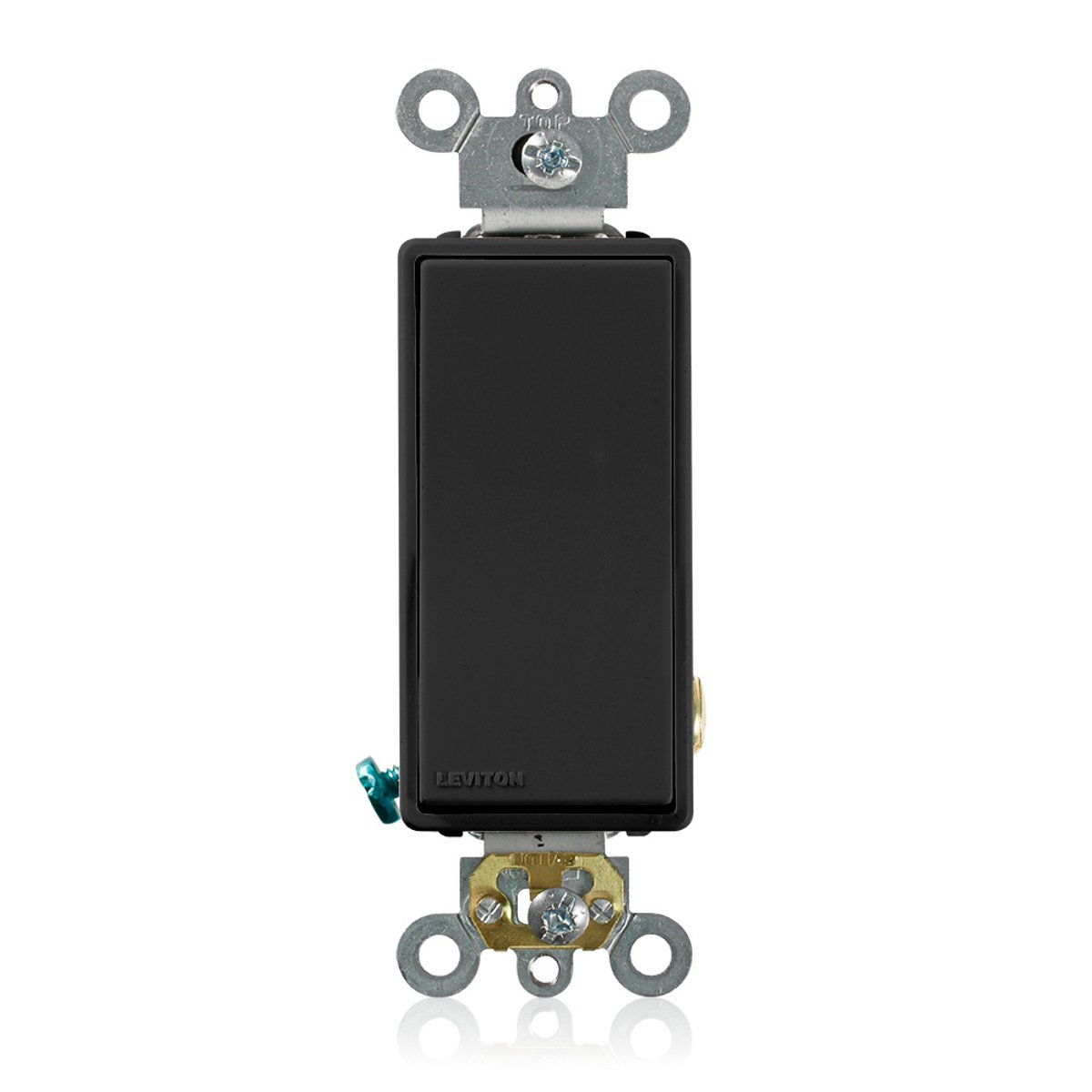

The Leviton 5621-2E is a 20-Amp, 120/277-Volt Decora Plus rocker single-pole AC quiet switch. This commercial-grade switch combines designer styling with rugged construction. Ideal for commercial applications, it features back and side wiring terminals for easy installation and provides full-rated current capacity for various loads.
- Full rated current capacity with tungsten, fluorescent, or resistive loads.
- Motor capacity is 80% of switch rating.
- Heavy-duty impact-resistant thermoplastic construction for long service life.
Product Highlights
This Leviton Decora Plus switch offers a blend of style and durability for commercial use, ensuring reliable performance and easy installation.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5621-2E
-
Country of Origin: Mexico
Technical Specifications
-
Color: Black
-
Terminal: Screw
-
Unit Count: 1 Count
-
Circuit Type: Single Pole
-
Actuator Type: Rocker
-
Connector Type: Screw
-
Current Rating: 20 Amps
-
Amperage Capacity: 16 Amps
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: 5621-2E
-
NEMA: WD-1
-
Type: Rocker Switch
-
Brand: Leviton
-
Grade: Commercial Specification
-
Voltage: 120/277 Volt
-
Actuator: Rocker
-
Amperage: 16 Amp
-
Material: Thermoplastic
-
Standard: ANSI C-73
-
Enclosure: WD-6
-
Grounding: Self-Grounding
-
Sub Brand: Decora Plus���
-
Dielectric: 1500 V
-
Horsepower: 1 hp
-
Device Type: Rocker Switch
-
Max Current: 16 A
-
Applications: Commercial
-
Body Material: Thermoplastic
-
Mounting Type: Box
-

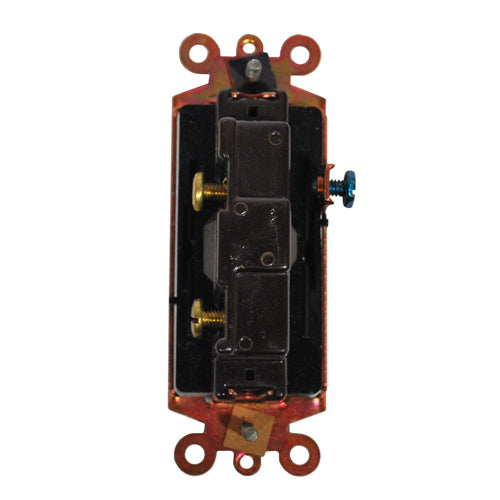

TC Connection: Back and Side Wired
-
Contact Rating: 20 A at 120/277 VAC
-
Connection Type: Back Wired,Side Wired
-
Number of Poles: 1 Pole
-
Temperature Rise: 30 degrees C
-
Termination Type: Back Wire,Side Wire
-
Flamability Class: Rated V-2 Per UL 94
-
Temperature Rating: -40 to 120 degrees C
-
Operating Temperature: -40 degrees C
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Action: Maintained/Momentary
-
Alternative Part Number: 7332350
-
Amperage Rating UOM: A
-
Application: Commercial Applications
-
Country: USA|Canada
-
Country Of Origin: MX
-
Power Rating: 1 hp, 2 hp
-
Voltage Rating: 120/277
-
Voltage Rating UOM: VAC
-
Catalog Number: 5621-2E
-
Made in USA: No
-
Connection: Back Wired;Side Wired
-
Item Type: Rocker Switch
-
Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
-
Terminal Accommodations: 14-10 AWG Back, 14-12 AWG Side Wire
-
Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
-
Function: Single-Pole
-
Endurance: 50,000 cycles minimum
-
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
-
Termination: Back & Side
-
UL Standard: UL 20
-
Screw Terminal Torque: 14-18 in-lbs
-
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
-
AC Horsepower Ratings: HP Rating : 1HP-120V 2HP-240V-277V
-
CSA C22.2 No. 111: File #152105
-
NOM: 057
-
HP Rating: 1HP-120V 2HP-240V-277V
-
Style: Decora
-
Amps (A): 20
-
Pole Config: Single-Pole
-
Height (In.): 4.06
-
Width (In.): 1.3
-
Depth( In.): 1.16
