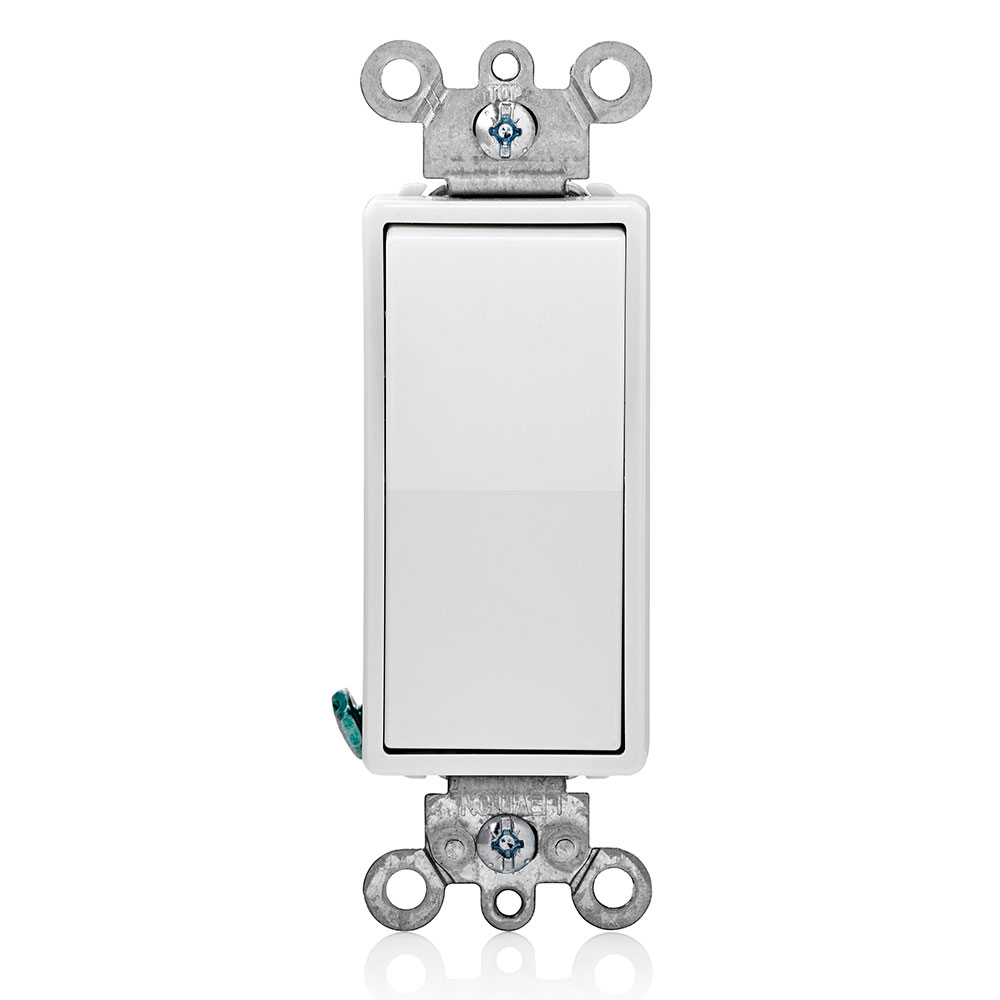

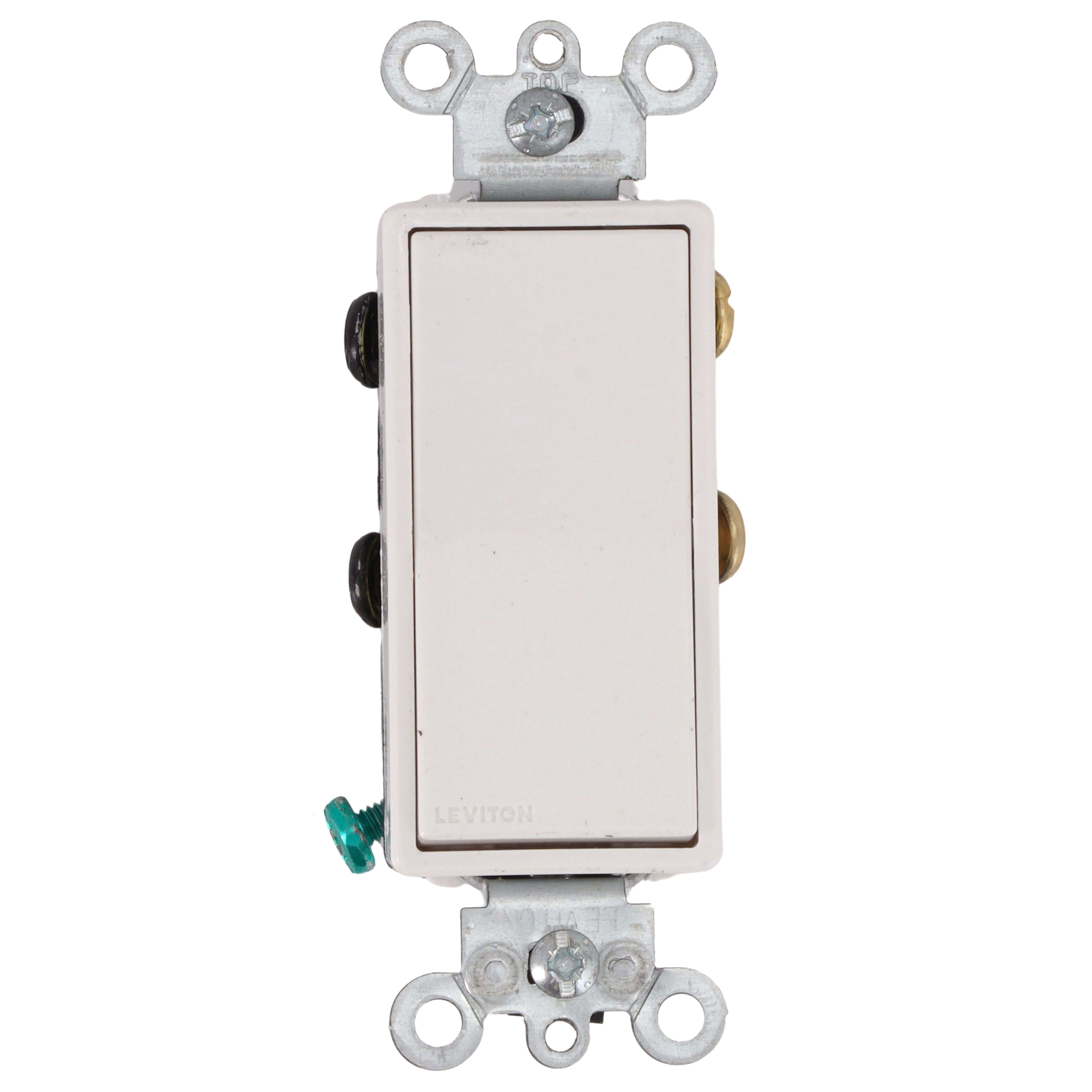

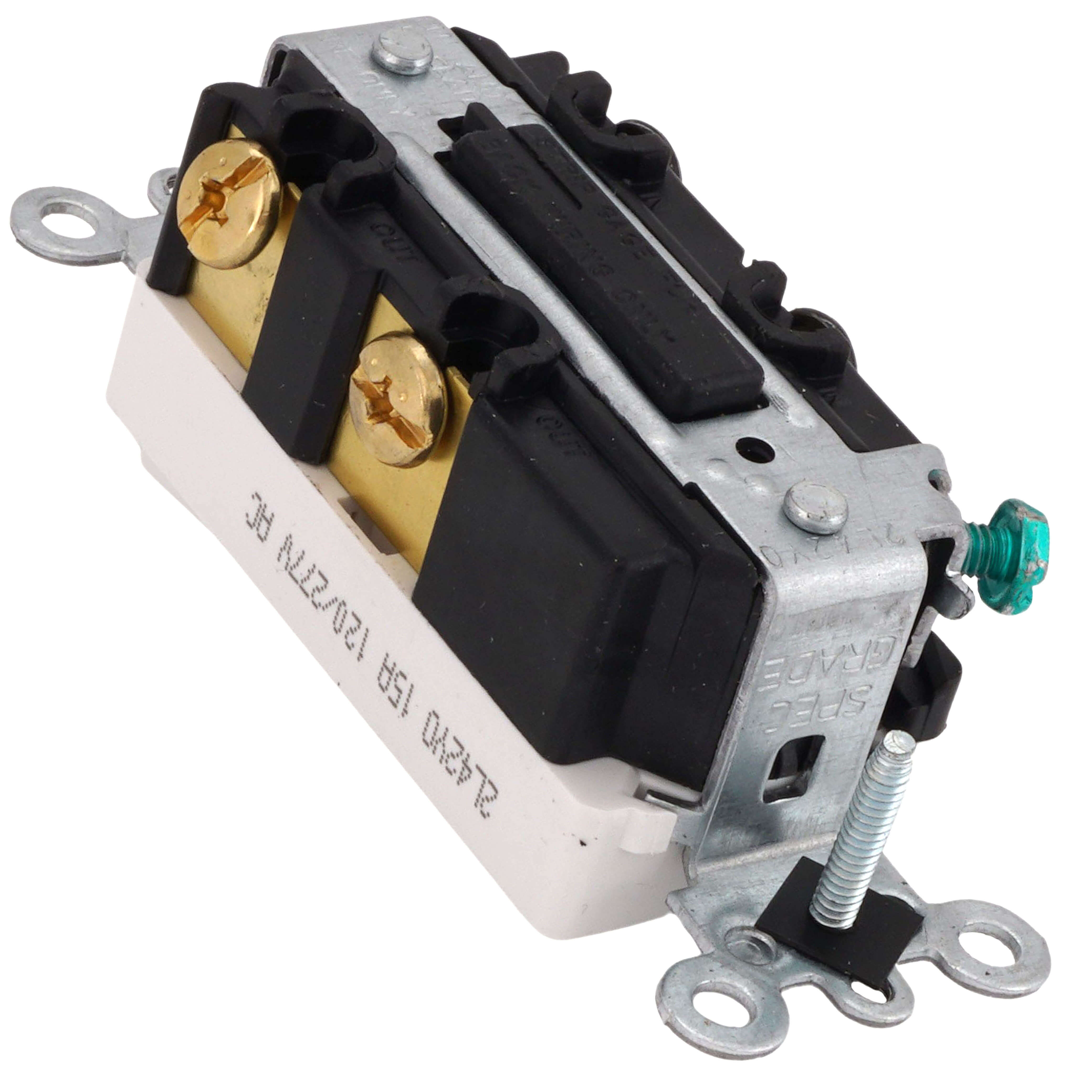

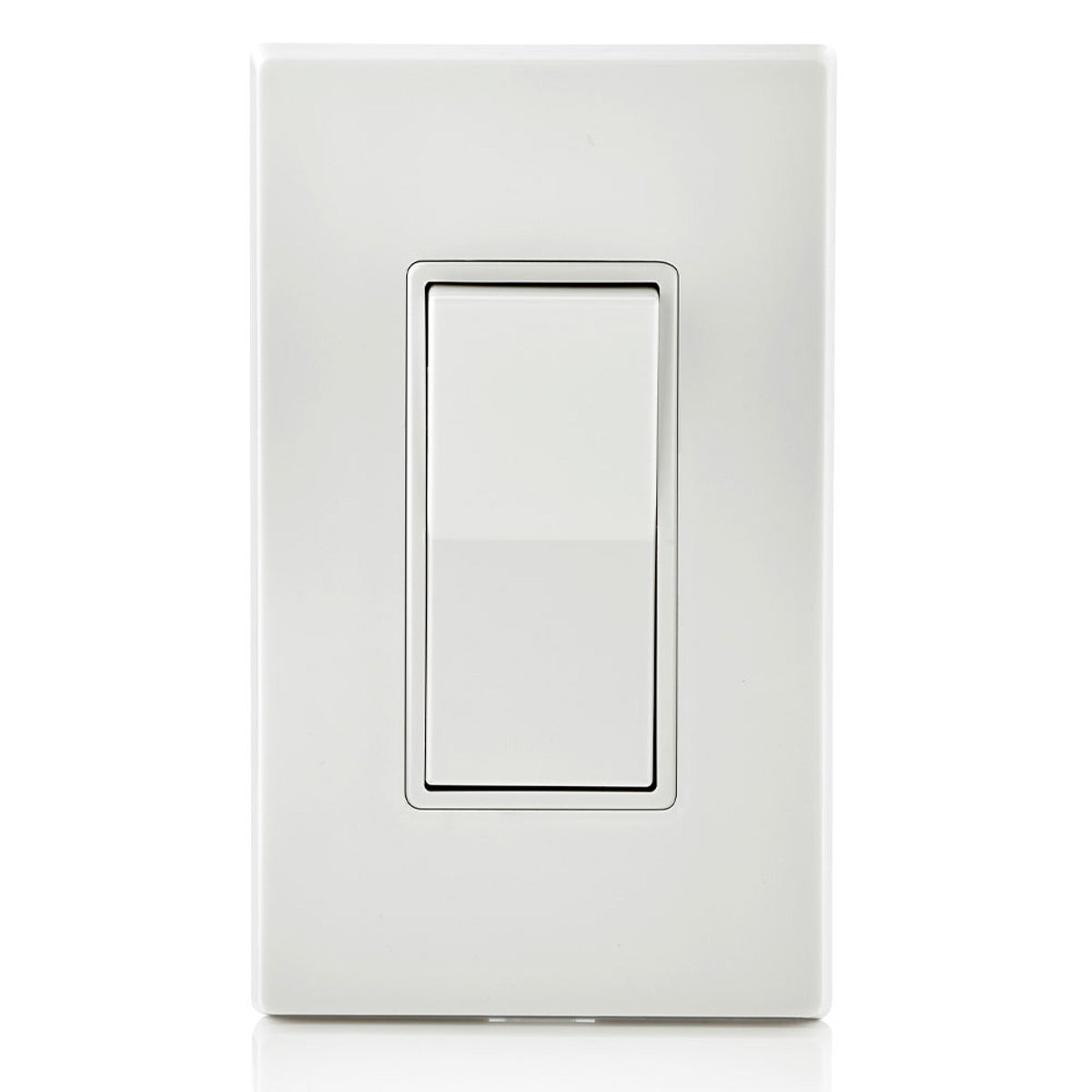

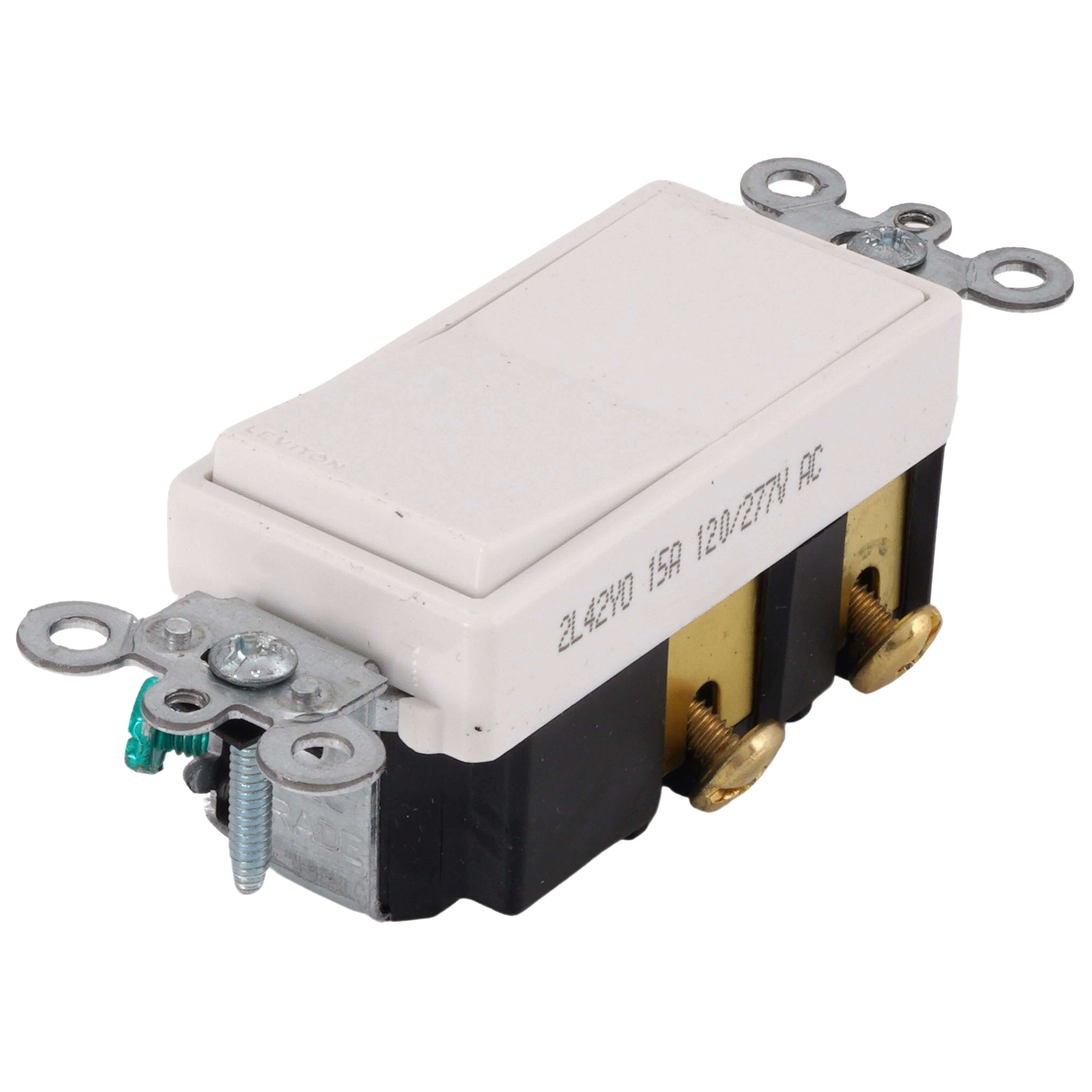

Leviton 5604-2W Decora Rocker 4-Way AC Switch 15 Amp, 120/277 Volt

Product Description

The Leviton 5604-2W is a 15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Switch designed for residential use. This grounding switch features a durable thermoplastic polyester construction and a switch frame that shields against dust. It has Quickwire push-in and side-wiring options for easy installation. The switch ensures full rated current capacity with tungsten, fluorescent, and resistive loads.

• 15 Amp, 120/277 Volt
• Decora Rocker, 4-Way AC Switch
• Residential Grade, Grounding

Product Highlights

This Leviton Decora rocker switch is ideal for residential applications requiring a reliable and easy-to-install 4-way switch.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5604-2W
• Country of Origin: Mexico

Technical Specifications

• Circuit Type: 4-way
• Actuator Type: Rocker
• Connector Type: Screw
• Current Rating: 15 Amp
• Operation Mode: OFF-NONE-ON
• Operating Voltage: 120/277 Volt
• Manufacturer Part Number: 5604-2W
• UPC: 07847788267
• Manufacturer Name: Leviton
• Country Of Origin: Mexico
• GTIN: 00078477882672
• UNSPSC: 39122226
• Energy Star Flag: No
• Type: 4-Way, Residential Grade
• Mounting: Wall
• Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 - 277 Volt
• Material: Thermoplastic Polyester
• Item Name: Rocker AC Quiet Switch
• Grounding: Grounding
• Environmental Conditions: V2 Flammability Rated Per UL94
• Brand Name: Leviton
• Action: Maintained
• Sub Brand: Decora
• Terminal Connection: Quickwire Push-In and Side Wired
• Temperature Rating: -40 to 120 deg C
• Standards: UL E7458 Listed, CSA LR3413 Certified, NOM 057
• Application: Residential
• Approval: UL, CSA
• Wiring: Side, Push-In
• Wall Plate Included: No
