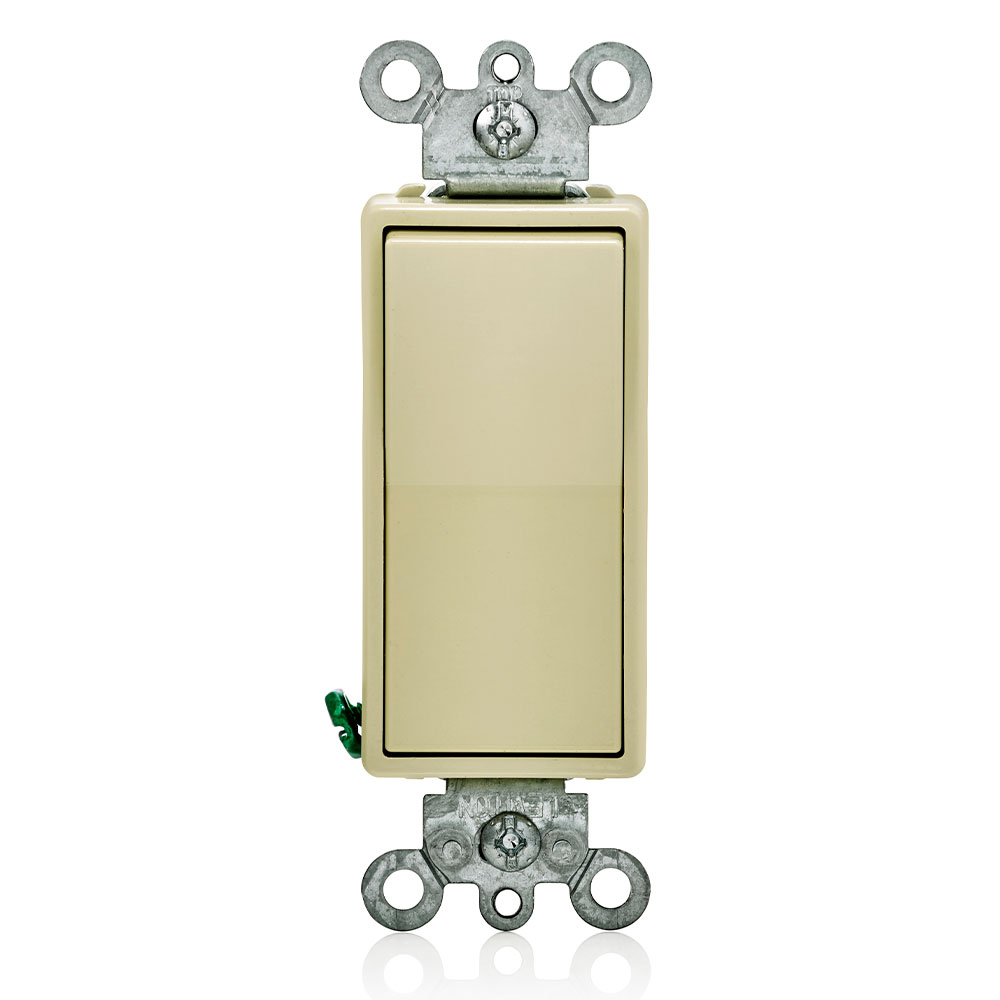

Leviton 5604-2I 4-way Decora Rocker Switch 15A 120/277V

Product Description

The LEVITON 5604-2I is a 4-way Decora rocker AC quiet switch rated for 15 amps at 120/277 volts. It is designed for residential-grade wiring applications where three or more switching locations are required for a single load. The switch features a grounding terminal and the familiar Decora rocker face that mounts flush with standard Decora-style wallplates. Electricians use this switch as the middle switch in a multi-location switching circuit, installed between two 3-way switches. The ivory finish suits standard residential interiors.

This switch is suited for residential installations where a stairwell, hallway, or large room requires control of lighting from three or more locations. It operates on both 120-volt and 277-volt circuits, making it usable in light commercial settings as well. The AC quiet switch mechanism reduces audible click noise during operation. Installation follows standard 4-way wiring practice, with the switch wired in series between two 3-way switches in the circuit.

Key Features

• 15 amp, 120/277 volt rating supports both residential and light commercial circuits
• 4-way configuration allows multi-location switching from three or more points
• AC quiet switch mechanism minimizes operational noise
• Grounding terminal included for code-compliant installations
• Decora rocker face is compatible with standard Decora-style wallplates
• Ivory finish for standard residential interiors

Compatibility

Designed as an OEM-style replacement for residential and light commercial 4-way Decora rocker switches in standard single-gang wallbox installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before wiring. This switch must be wired as the middle device between two 3-way switches in a multi-location circuit — it is not a substitute for a 3-way switch. Use appropriate wire connectors and ensure the grounding terminal is connected to the circuit ground conductor.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Type: 4-Way AC Quiet Rocker
• Grade: Residential
• Grounding: Yes
• Color/Finish: Ivory
• UPC: 078477882665

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5604-2I
