Product Description

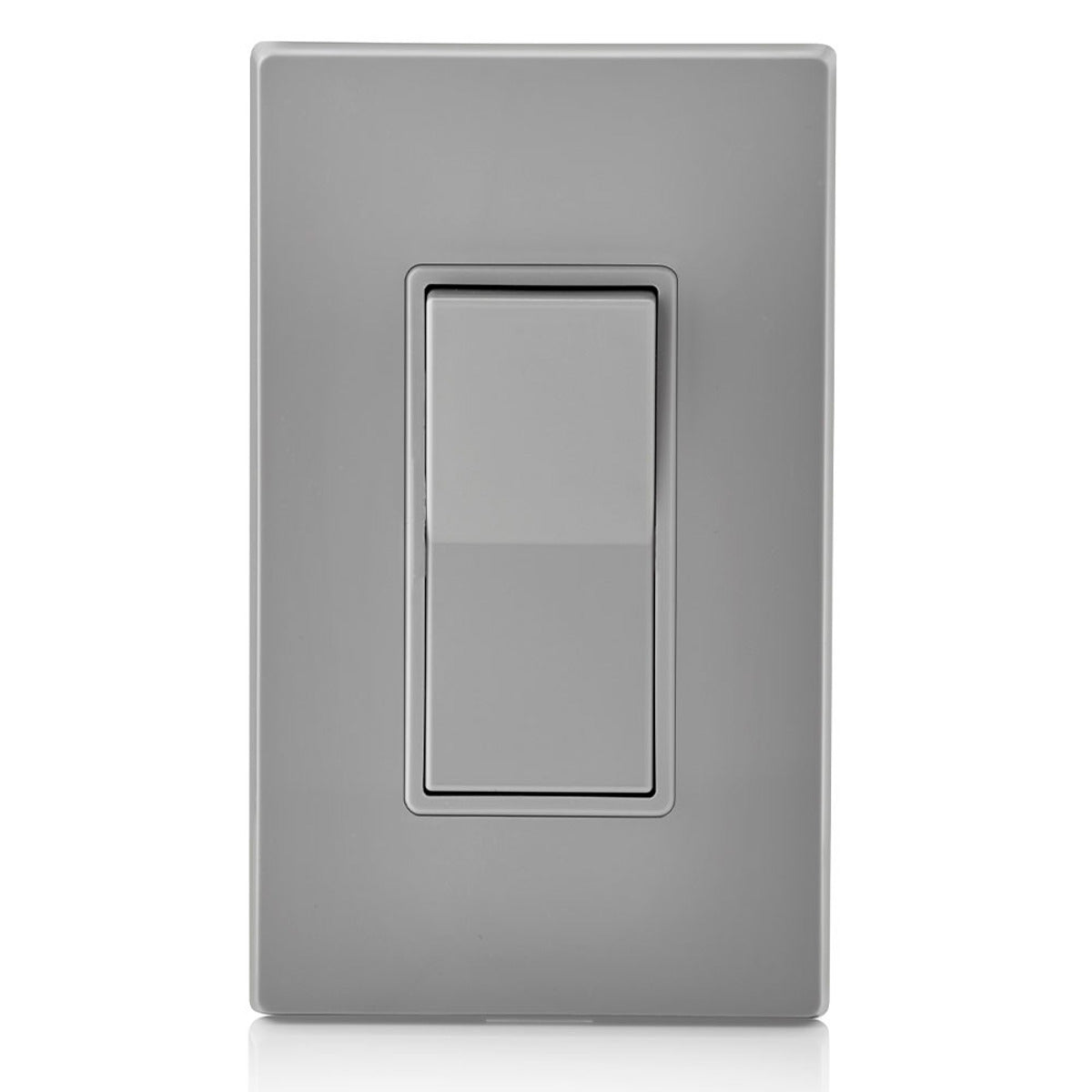

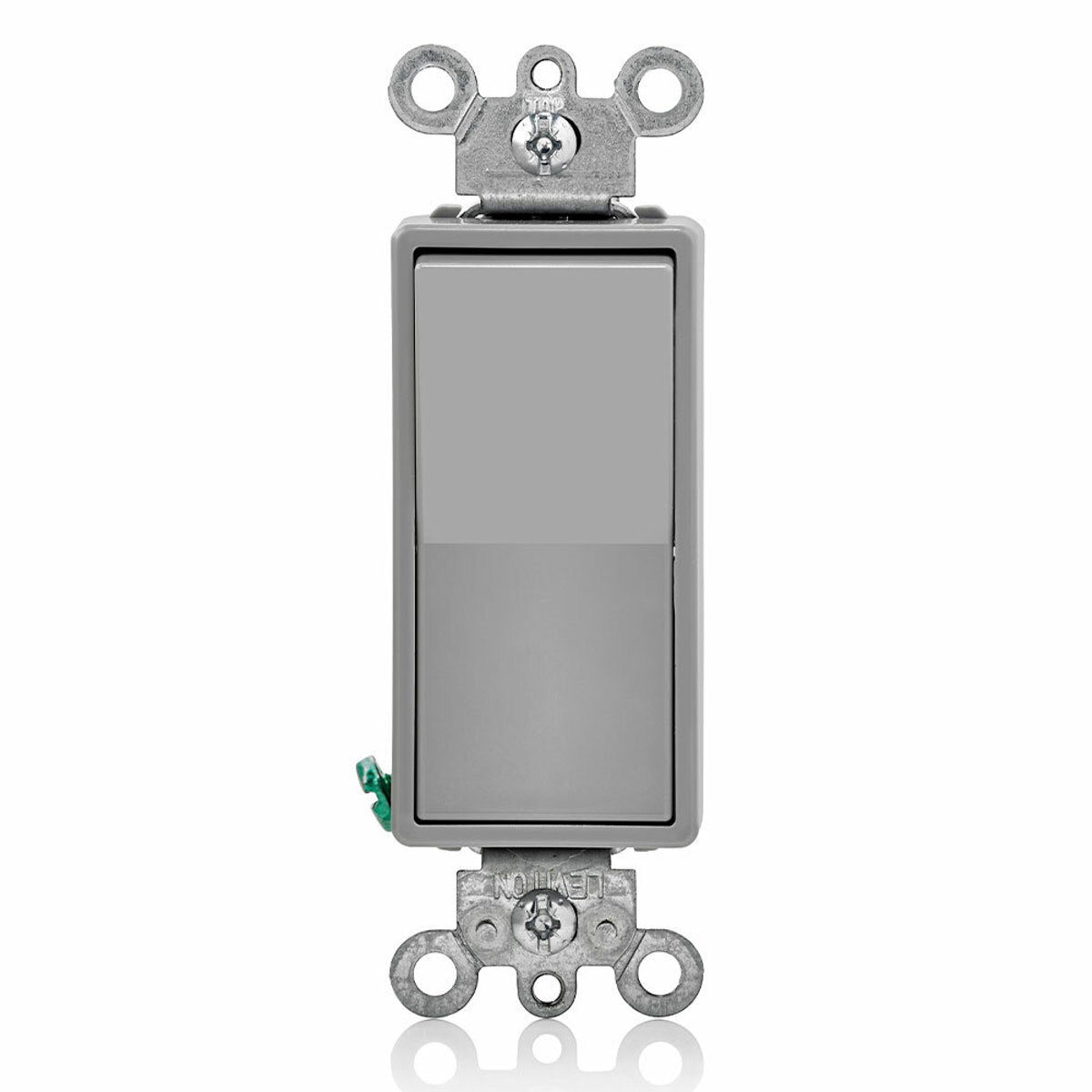

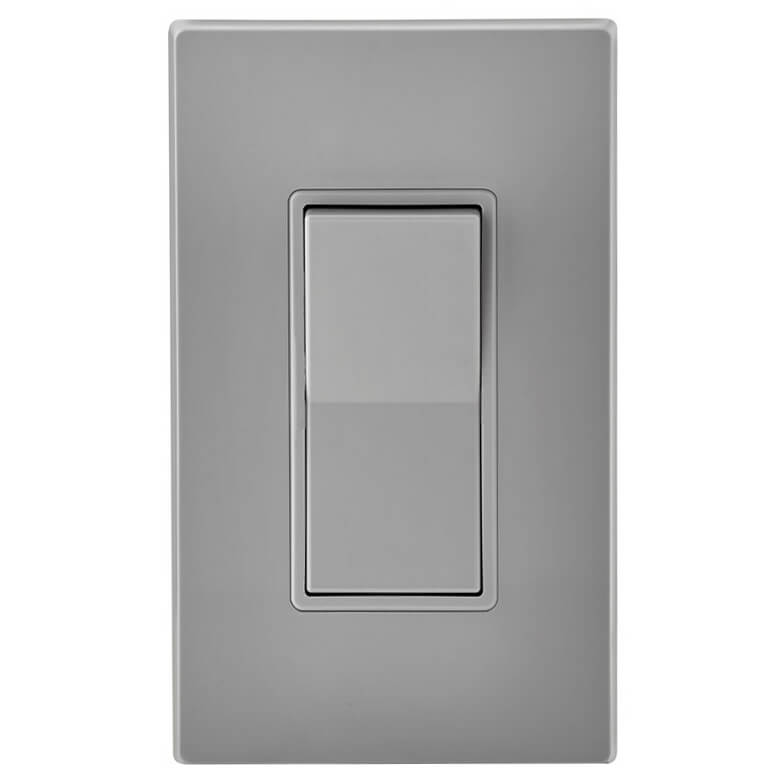

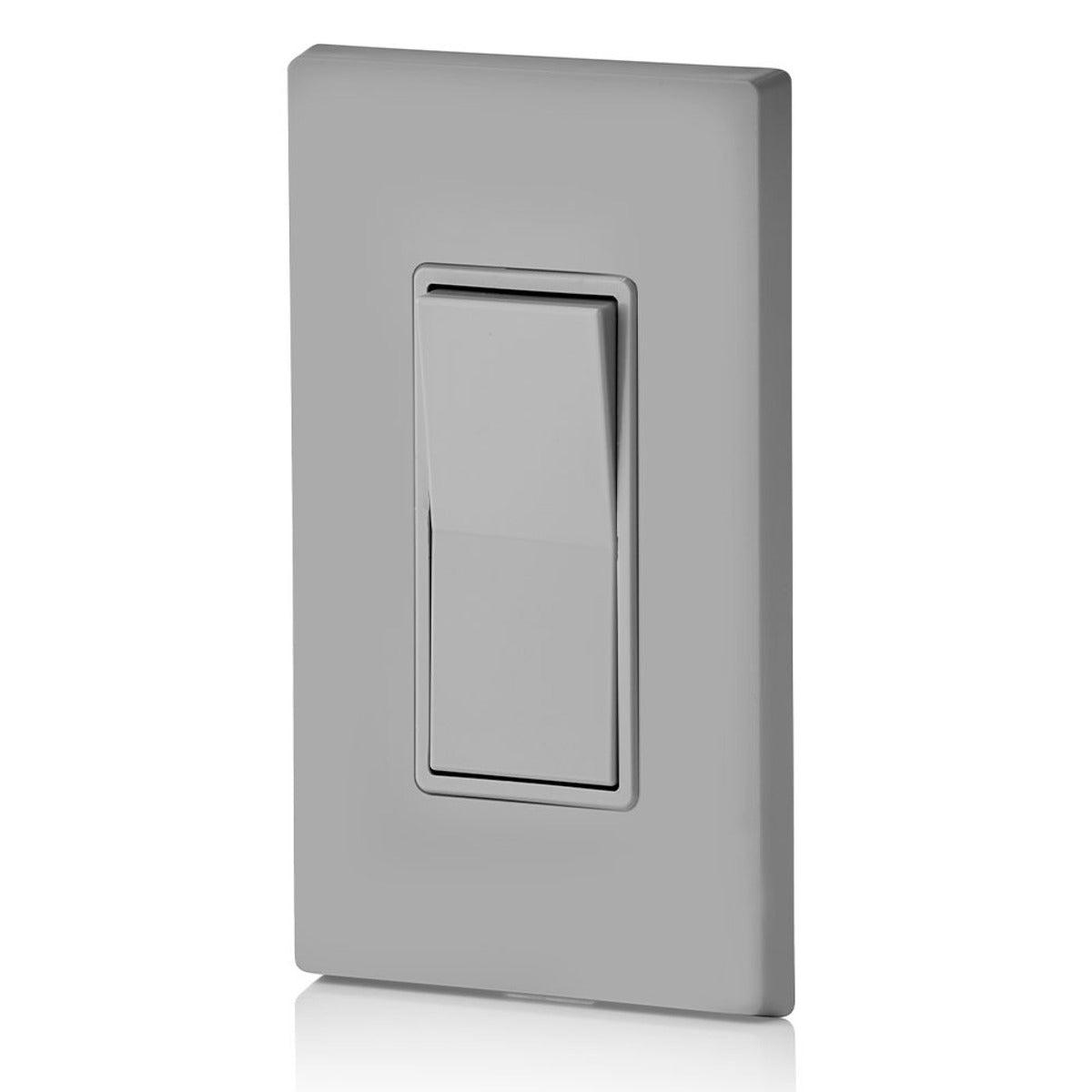

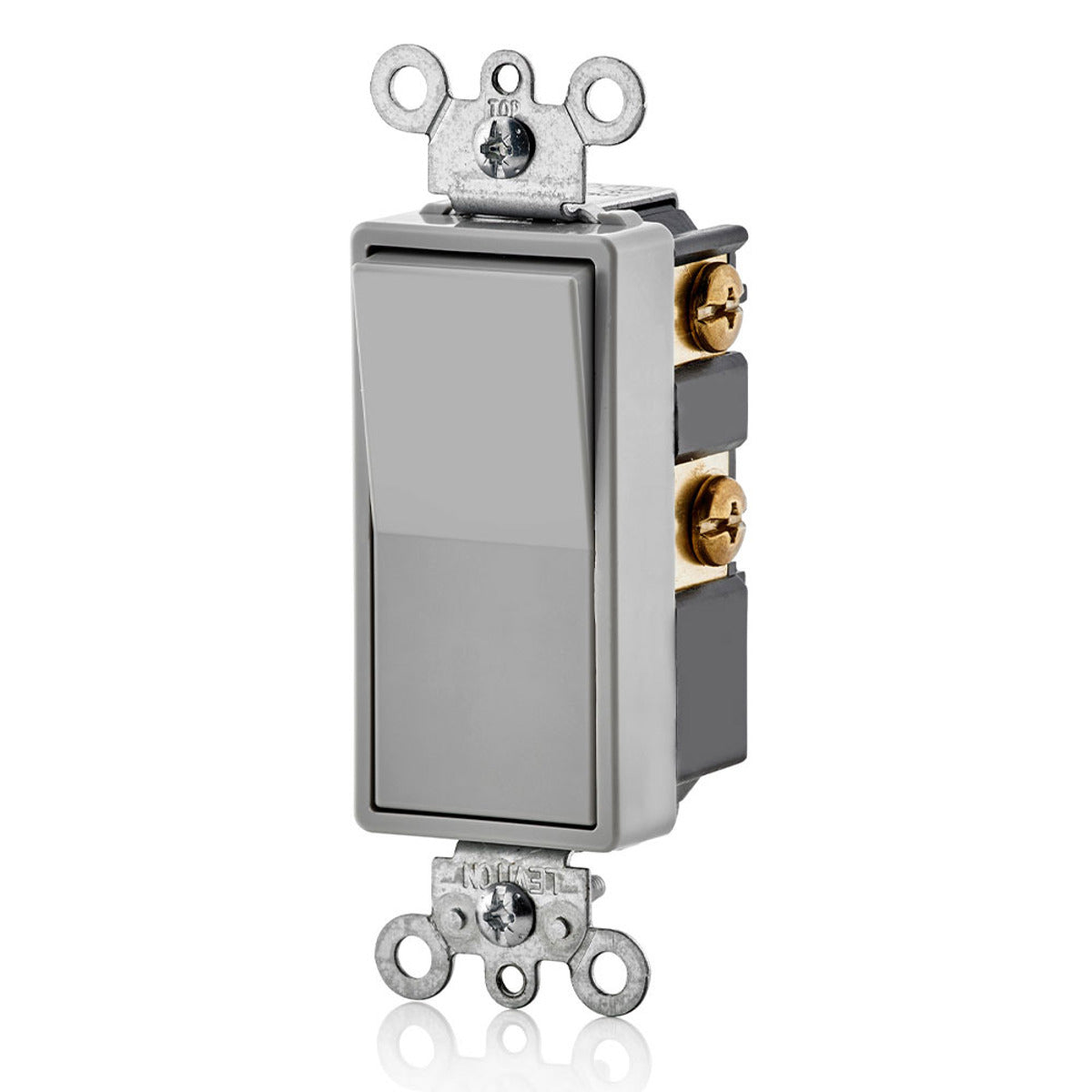

The LEVITON 5604-2GY is a Decora Rocker 4-Way AC Quiet Switch. This switch is rated for 15 Amp and 120/277 Volt, suitable for residential applications. It features a thermoplastic body material and provides quiet switching operation. The switch is designed for easy installation with side and back wiring options.
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Sturdy construction for long service life
Product Highlights
This Decora rocker switch offers a blend of modern aesthetics and reliable performance, suitable for any residential setting. It ensures quiet operation and easy installation.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5604-2GY
-
Country of Origin: Mexico
Technical Specifications
-
Type: 4-Way
-
Brand: Leviton
-
Voltage: 120/277 Volt
-
Actuator: Rocker
-
Material: Thermoplastic
-
Standard: CSA,UL
-
Grounding: Grounding
-
Sub Brand: Decora
-
Horsepower: 1/2 hp
-
Applications: Residential
-
Body Material: Thermoplastic
-
Mounting Type: Wallplate
-
TC Connection: Quickwired Push-In, Side Wire
-
Terminal Type: Screw
-
Contact Rating: 15 A at 120/277 VAC
-
Connection Type: Quickwired Push-In,Side Wired
-
Termination Type: Back Wire,Side Wire
-
Country of Origin: Mexico
-
Temperature Rating: -40 to 120 degrees C
-
Operating Temperature: -40 to 120 degrees C
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Amperage: 15 Amp
-
Amperage Rating: 15 A
-
Mounting: Wall
-
Power Rating: 1/2 hp, 2 hp
-
Voltage Rating: 120/277 VAC
-
Action: On-Off
-
Includes: Ground Screw
-
Current Rating: 15 Ampere
-
Operation Type: 4-Way
-
Wiring: Side, Push-In
-
Wall Plate Included: No
-
Strap Material: Steel
-
Actuator Material: Thermoplastic
