Product Description

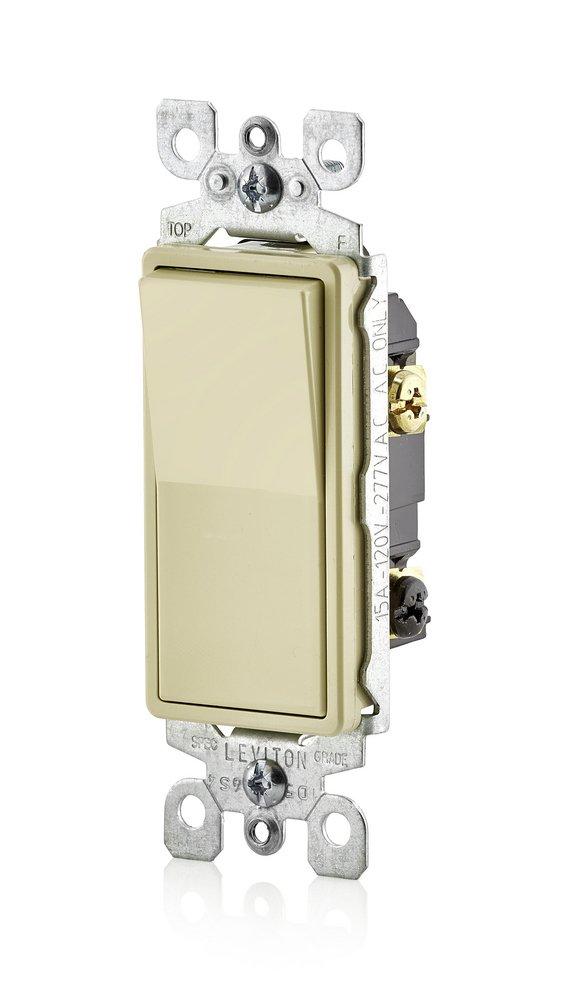

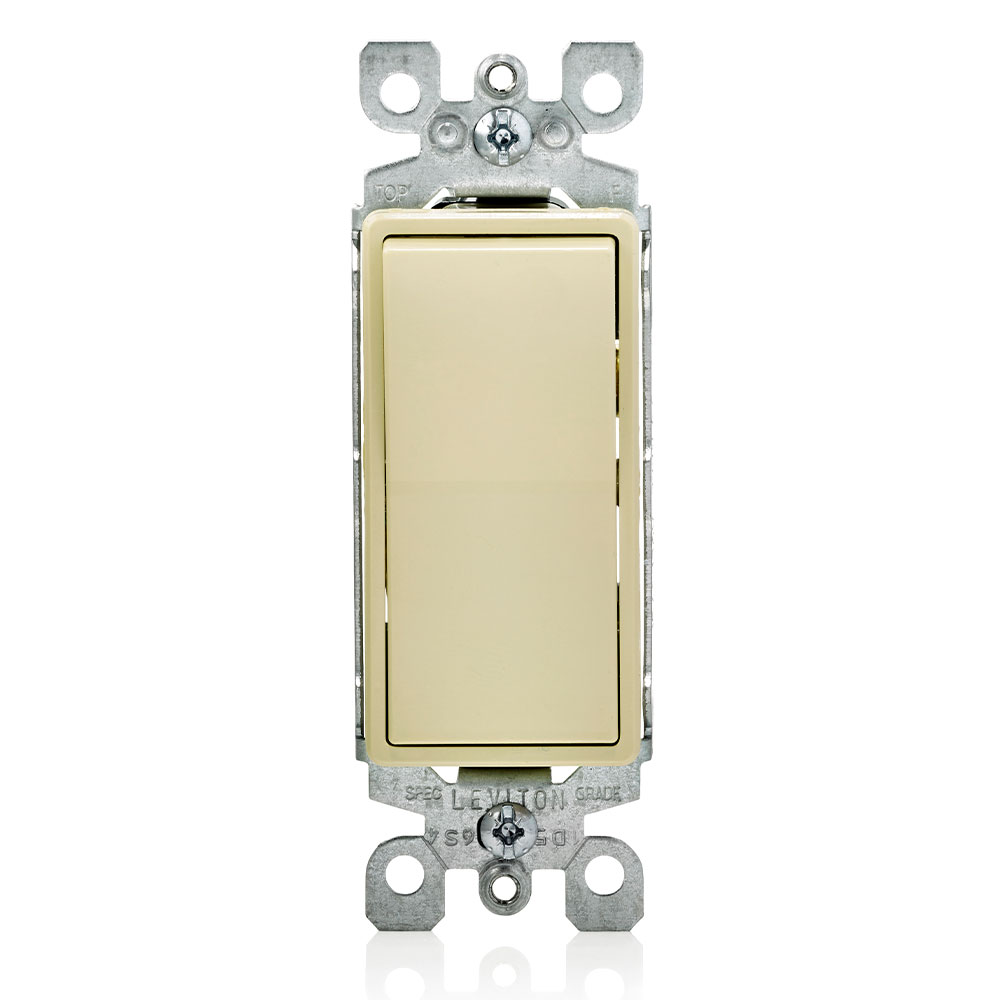

The Leviton 5603-2I is a 3-Way AC Quiet Switch designed for residential use. Operating at 15 Amps with a voltage range of 120 to 277 volts, this switch provides reliable performance. The switch features Quick-Wire push-in and side wire terminals to simplify installation.
- Works with tungsten, fluorescent, and resistive loads.
- Made from thermoplastic for durability.
- Meets UL and CSA standards for electrical safety.
Product Highlights
Ideal for residential applications, this switch combines modern design and functionality. It is easy to wire, making it suitable for various wiring configurations.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part No: 5603-2I
Technical Specifications
-
Type: 3-Way Grounding
-
Color: Ivory
-
Amperage Rating: 15 A
-
Voltage Rating: 120/277 VAC
-
Power Rating: 1/2 hp, 2 hp
-
Material: Thermoplastic
-
Dimensions: 4.2 in H x 1.399 in W x 1.453 in D
-
Environmental Conditions: -40 to 120 deg C Operating Temperature
-
Standards/Approvals: UL File No. E7458; CSA Certified (LR3413); NOM 057
