Product Description

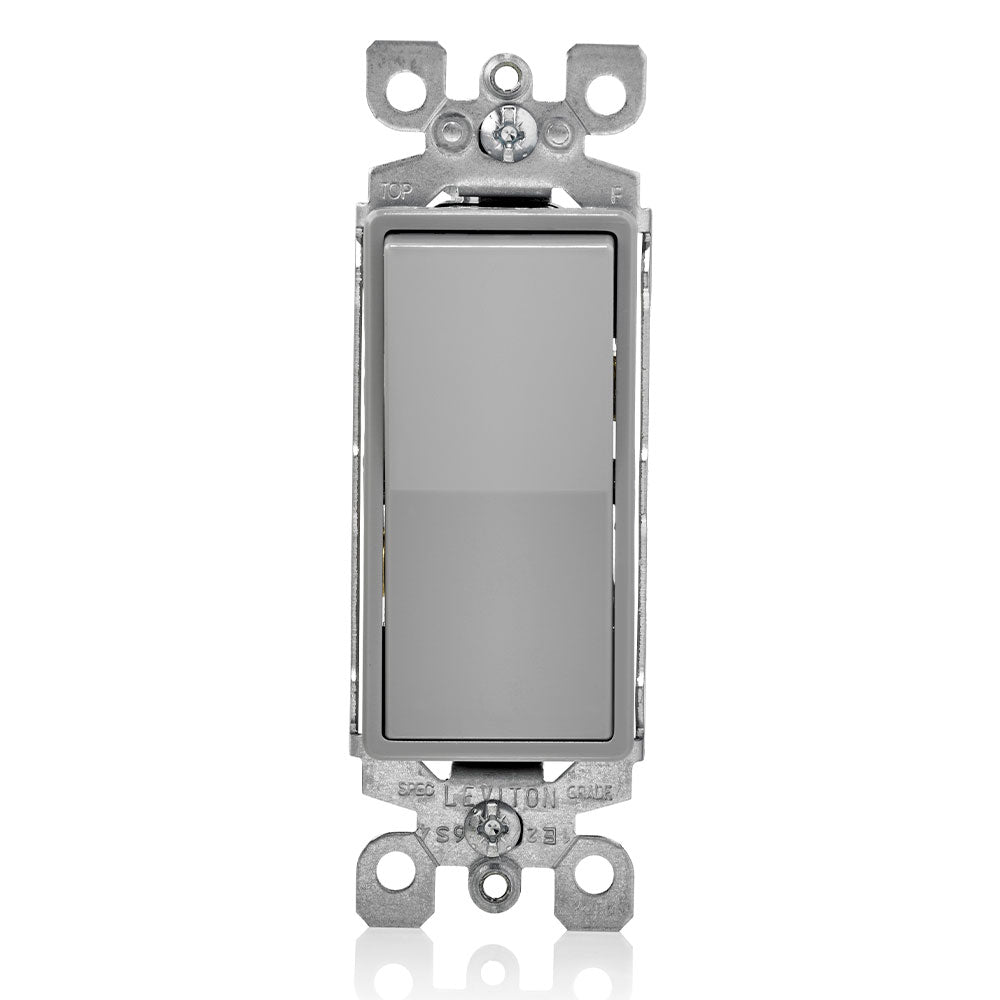

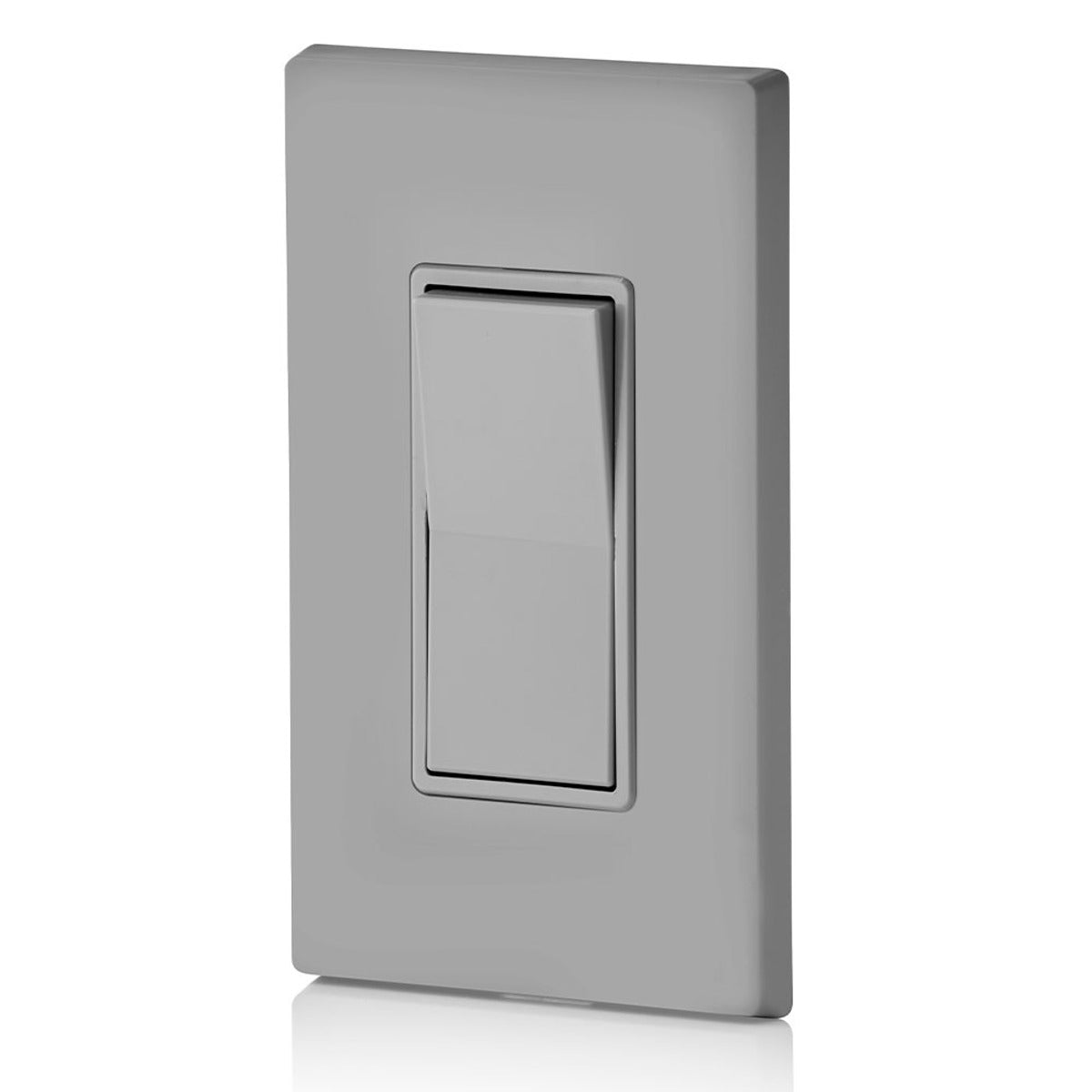

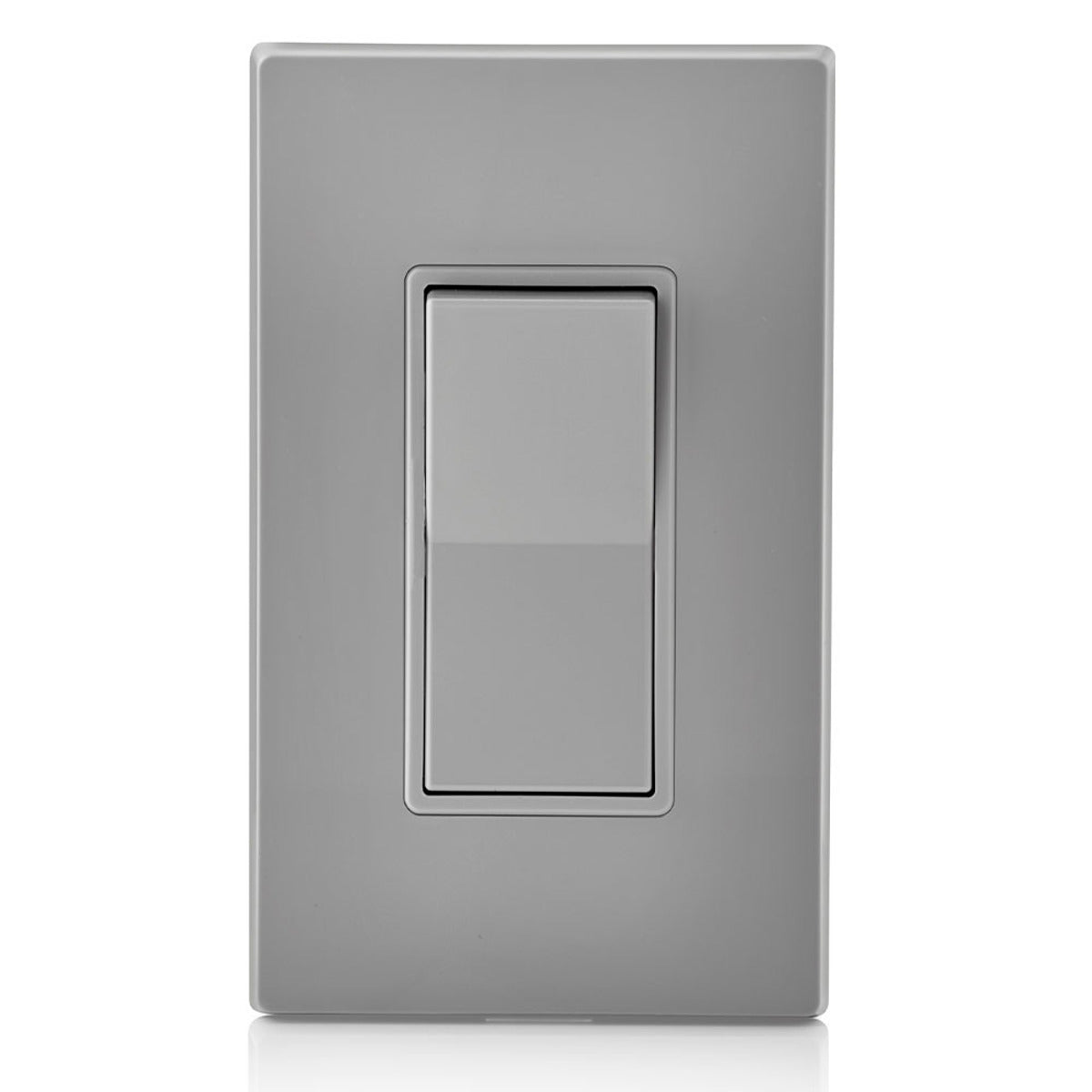

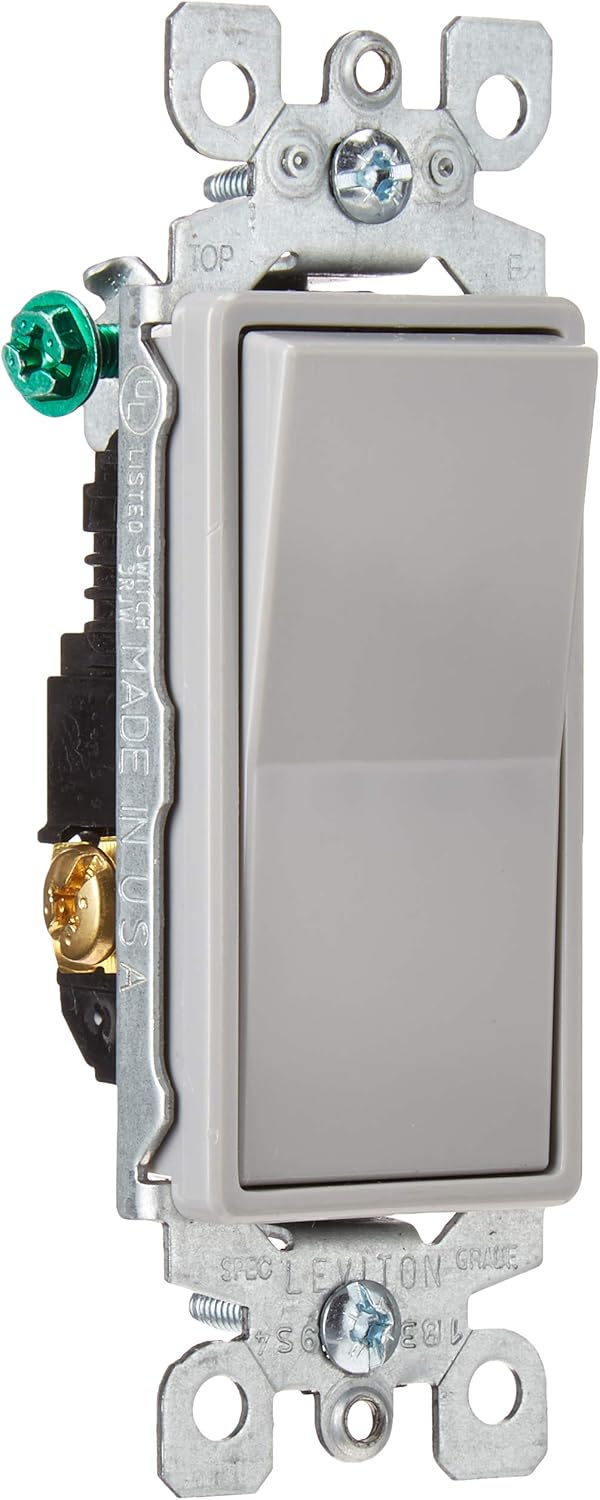

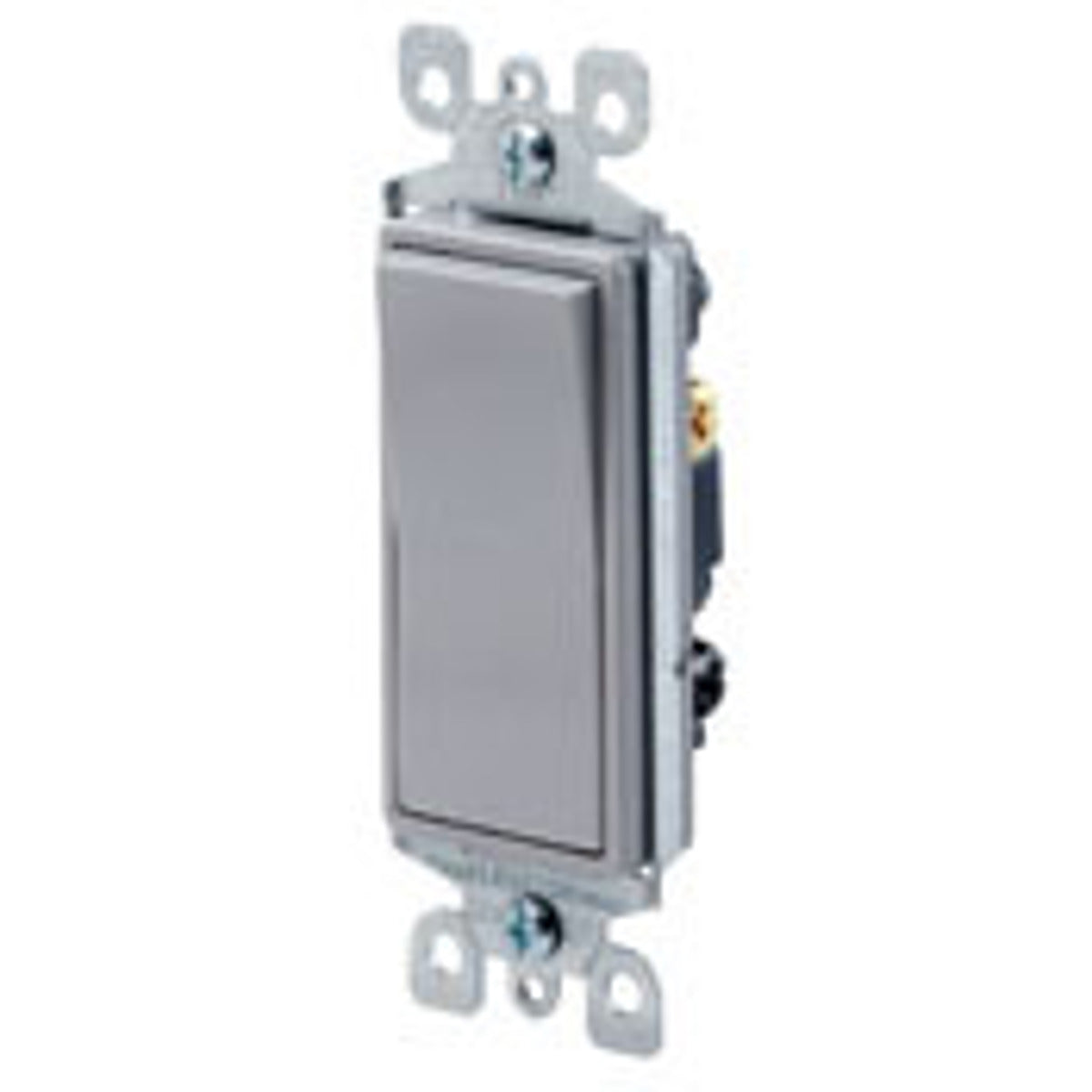

The Leviton 5603-2GY is a 15 Amp, 120/277 Volt Decora rocker 3-way AC quiet switch. This residential grade switch is designed for grounding. It features a rocker actuator and screw terminals. Ideal for residential applications, this switch ensures reliable performance and easy installation. The switch frame shields against dust and fits in wallplate to prevent rocker binding.
- Decora Rocker
- 3-Way
- AC Quiet Switch
Product Highlights
The Leviton Decora AC quiet switch is easy to wire and complements every Decora style.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5603-2GY
-
Country of Origin: USA
Technical Specifications
-
Color: Gray
-
Style: 1 Pack
-
Pattern: Grounding
-
Voltage: 120/277 VAC
-
Terminal: Quickwire" Or "Side
-
Thickness: 1 Inches
-
Unit Count: 1.0 Count
-
Circuit Type: 3-way
-
Actuator Type: Rocker
-
Connector Type: Plug In
-
Current Rating: 15 Amps
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: 5603-2GY
-
Number of Positions: 3
-
Connectivity Protocol: X-10
-
International Protection Rating: IP00
-
Amperage: 15 Amp
-
Switch Type: Rocker
-
Grade: Residential Grade
-
Grounding: Grounding
-
Amperage Rating: 15 A
-
Dimensions: 4.2 in H x 1.399 in W x 1.453 in D
-
Environmental Conditions: -40 to 120 deg C Operating Temperature
-
Includes: Ground Screw
-
Material: Thermoplastic
-
Mounting: Surface
-
Power Rating: 1/2 hp, 2 hp
-
Standards/Approvals: UL File No. E7458|CSA File No. LR3413|NOM 057|UL94 V-2 Flammability Rating
-
Terminal Type: Quick-Wire
Push-In/Side Wire
-
Type: 3-Way Grounding
-
Action: On-Off
-
Manufacturer: LEVITON
-
Country of Origin: US
-
Environment: -40 to 120 deg C
-
Mfg Standards/Approvals: CSA File No. LR-3413 Certified, NOM 057, RoHS Complaint, UL File No. E-7458 Listed
-
Mounting Type: Wallplate
-
Operating Temperature: -40 to +120 DEG C
-
Safety Data Sheet (SDS) Flag: Y
-
Buy American Act (BAA) Compliant: C
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
HP Rating: 1/2HP-120V
-
Max Amp: 12 Amp
-
Termination: Quickwire Push-In & Side
-
Actuator Material: Thermoplastic
-
Body Material: Thermoplastic
-
Strap Material: Steel
-
Standards and Certifications: UL/CSA
-
Torque: 14 lb-in
-
Horsepower: 1/2 hp
-
Max Current: 12 A
-
Applications: Residential
-
Contact Rating: 120/277 V
-
Connection Type: Quickwired Push-In,Side Wired
-
Number of Poles: 3 Pole
-
Warranty Length: 2 yr
-
Termination Type: Quickwire Push-In,Slide Wire
-
Special Features: Grounding, Switch Frame Shields Against Dust and Fits in Wallplate to Prevent Rocker Binding, Terminal Screws Accept Up to No 12 AWG Copper or Copper-Clad Wire, Quickwire Push-In Terminals Accept No 14 AWG Solid Copper Wire Only, Sturdy Construction for Long Service Life, Full-Rated Current Capacity with Tungsten, Fluorescent or Resistive Loads, Motor Capacity is 80% of Switch Rating, Complements Every DTcor, Limited Two-Year Warranty, Made in USA
-
Stripped Catalog Number: 56032GY
-
Catalog Description (MFR): 15 Amp, 120/277 Volt, Decora Rocker 3-Way AC Quiet Switch, Residential Grade, Grounding, Gray
-
Invoice Description (MFR): 15A 120/277V DEC 3-WAY SW GRAY.
-
Concatenated Invoice Description: 15A 120/277V DEC 3-WAY SW GRAY.
-
Size: 4.200 H x 1.399 W x 1.453 D IN
-
Sub Brand: Decora
-
Brand Name: LEVITON
-
Connection: Quickwired Push-In;Side Wired
-
Product Name: AC Quiet Switch
-
Commodity Code: 5110
-
Voltage Rating: 120-277V
-
Number Of Poles: 3 Way
-
Item Type: Rocker Switch;Quiet
-
Width: 1.399
-
Width UOM: Inch
-
Height: 4.2
-
Height UOM: Inch
-
Depth: 1.453
-
Depth UOM: Inch
-
Cross Reference Products: RSD315GY, TM873GRY, TM873GRY
-
Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 - 277 Volt
-
Item Name: Rocker AC Quiet Switch
-
Temperature Rating: -40 to 120 deg C
-
Standards: UL E7458 Listed, CSA LR3413 Certified, NOM 057
-
Operation Mode: manual
-
Contact Type: Normally Open
-
Controller Type: Push Button" or "Mechanical knob
-
Control Method: Touch
-
Wattage: 1800 watts
-
Control Type: dual-point
-
Compatible Devices: All
-
Smart Home Compatibility: Not Smart Home Compatible
-
Installation: Push-in or side wire installation
-
Listing: UL listed
-
Switch Style: Rocker style switch
-
Rating: Quite rated
-
Approval: CSA approved for Canada
-
Installation Recommendation: Install using a licensed electrician
-
Warranty: 2 year warranty
-
Wallplate: Wallplate sold separately
-
Electrical Ratings: 1/2HP-120V 2HP-240V-277V Max 12 Amp
-
Device Type: Rocker Switch
-
Feature: Weather-Resistant
-
Pole: 3
-
UL Standard: cULus
-
NOM: NOM
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Torque Range: 14 – 18 in.-lbs
