Product Description

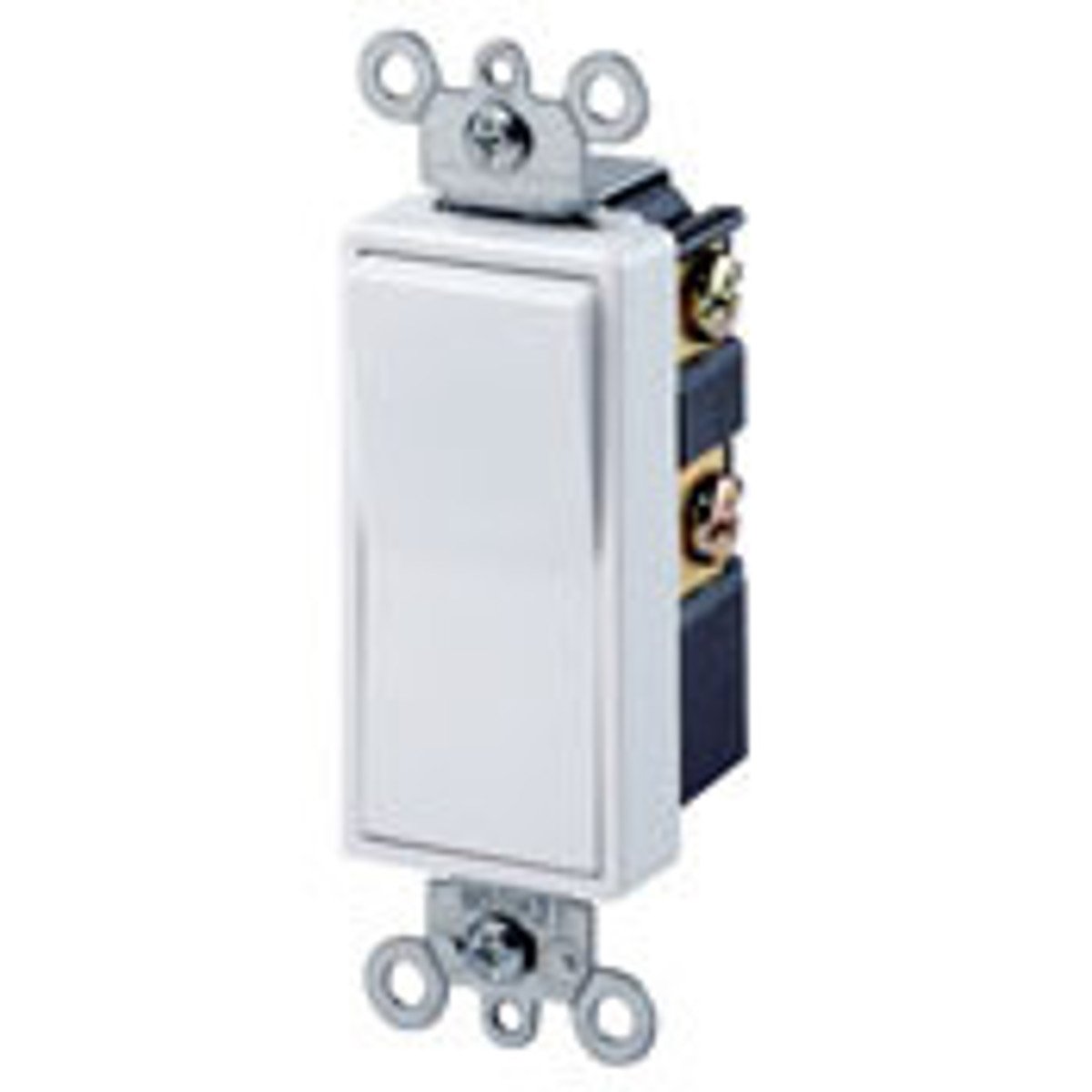

The Leviton 5602-2W is a rocker switch designed for residential use. This switch operates at 120/277 VAC with a 15 Amp rating and features a double-pole configuration. Designed with a thermoplastic body, this switch provides durability and safety for residential electrical applications. It also includes a quickwire push-in and side wired terminal for easy installation.
- Operates at 120/277 VAC, 15 Amps
- Quickwire push-in and side wired terminals
- UL Listed and CSA Certified
Product Highlights
This switch is suitable for residential applications and is perfect for controlling lighting or appliances across various power loads. Its smooth rocker action provides a quiet operation, making it ideal for locations where noise is a concern.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: 5602-2W
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 Amps
-
Power Rating: 1/2 hp at 120 VAC, 2 hp at 277 VAC
-
Material: Thermoplastic
-
Dimensions: 4.2 inches H x 1.3 inches W x 0.99 inches D
-
Operating Temperature: -40 to 120 degrees C
-
Number of Poles: 2
-
Mounting Type: Surface
-
Special Features: Grounding, quickwire connection
