Product Description

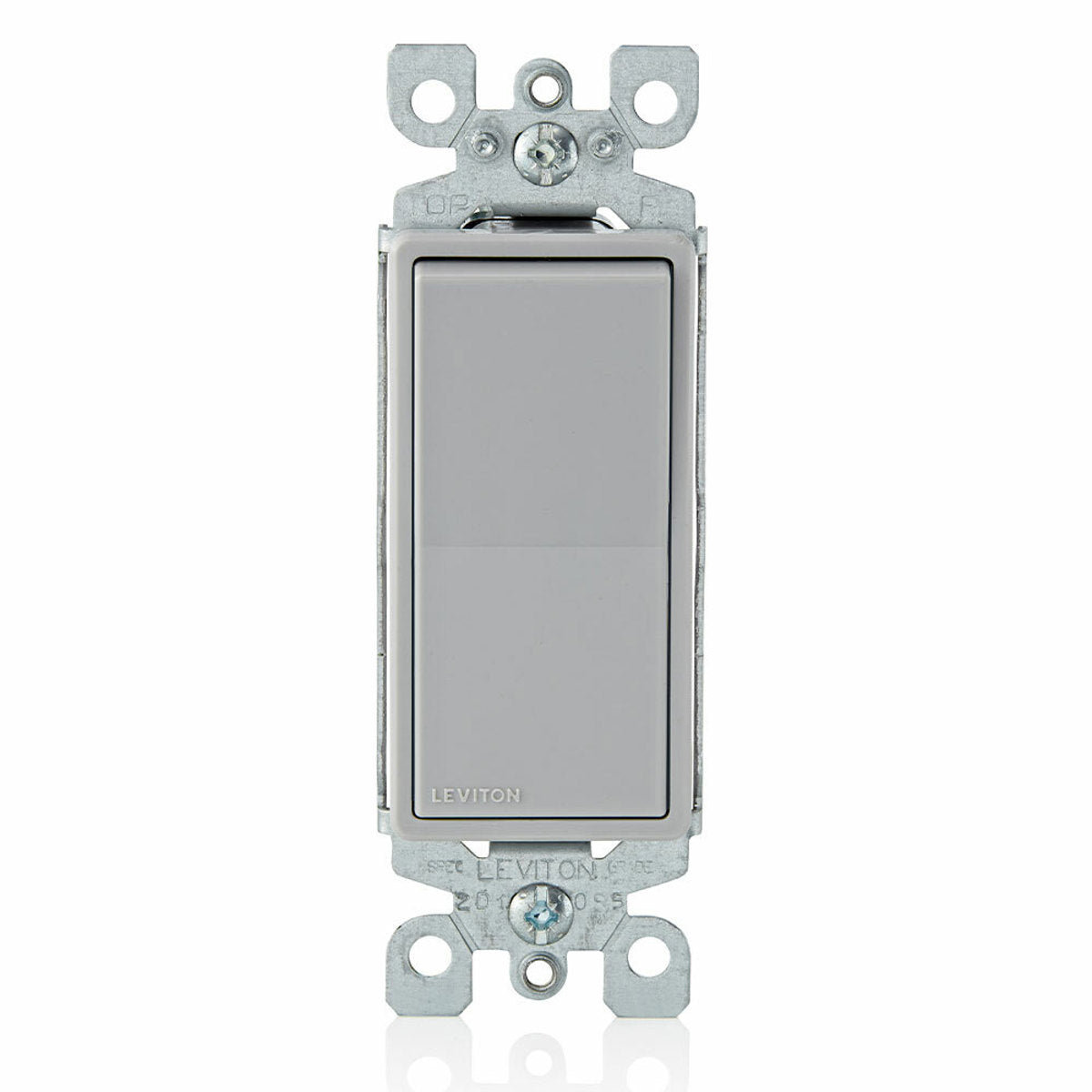

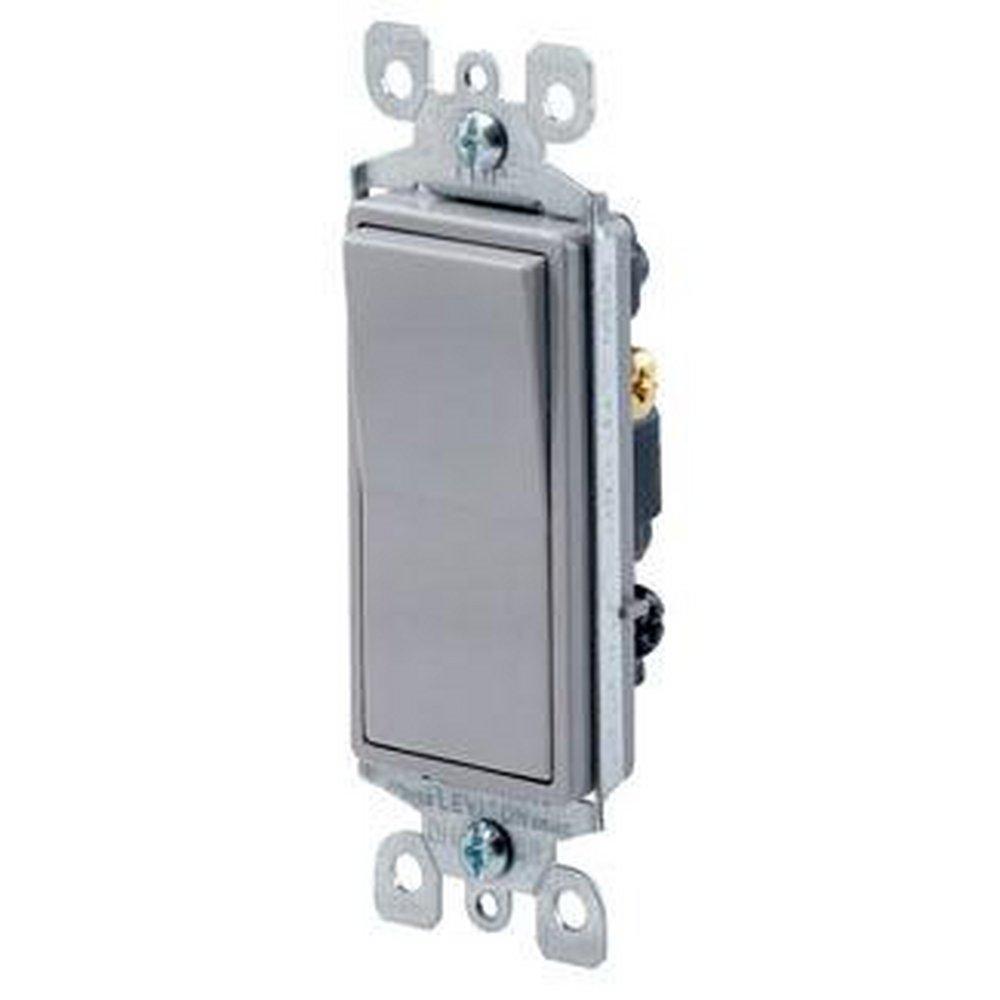

The Leviton 5601-2GY is a grounding AC quiet switch with Decora styling. Rated for 120/277 VAC at 15 A, it handles power loads of 1/2 hp and 2 hp. Designed for residential use, this single-pole switch provides quiet operation for controlling lights and other electrical devices.
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to NO 12 AWG copper or copper-clad wire
- Quickwire push-in terminals accept NO 14 AWG solid copper wire only
Product Highlights
This Leviton Decora switch offers quiet, reliable performance and complements any decor. It features sturdy construction for long service life and is easy to install.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5601-2GY
-
Country of Origin: US
Technical Specifications
-
Actuator: Rocker
-
Amperage Rating: 15 A
-
Country of Origin: US - United States
-
Dimensions: 4.2 in H x 1.399 in W x 1.453 in D
-
Environment: -40 to 120 deg C
-
Material: Thermoplastic
-
Mfg Standards/Approvals: CSA File No. LR-3413 Certified, NOM 057, RoHS Complaint, UL File No. E-7458 Listed
-
Mounting: Wall
-
Number of Poles: 1
-
Package Height: 1.625 IN
-
Package Length: 1.688 IN
-
Package Weight: 0.17 L
-
Package Width: 4.188 IN
-
Power Rating: 1/2 hp, 2 hp
-
Terminal Type: Screw
-
Voltage Rating: 120/277 VAC
-
Brand: LEVITON
-
MPN: 5601-2GY
-
Size: 4.200 H x 1.399 W x 1.453 D IN
-
Type: Rocker Switch;Quiet
-
UNSPSC: 39122226
-
Sub Brand: Decora
-
Connection: Quickwired Push-In;Side Wired
-
Application: Residential
-
Product Name: AC Quiet Switch
-
Commodity Code: 5110
-
Contact Rating: 120/277 VAC;15 AMP
-
Number Of Poles: 1 Pole
-
Special Features: Grounding, Switch Frame Shields Against Dust and Fits in Wallplate to Prevent Rocker Binding, Terminal Screws Accept Up to No 12 AWG Copper or Copper-Clad Wire, Quickwire Push-In Terminals Accept No 14 AWG Solid Copper Wire Only, Sturdy Construction for Long Service Life, Full-Rated Current Capacity with Tungsten, Fluorescent or Resistive Loads, Motor Capacity is 80% of Switch Rating, Complements Every DTcor, Limited Two-Year Warranty, Made in USA
-
Operating Temperature: -40 to +120 DEG C
-
Stripped Catalog Number: 56012GY
-
Environmental Conditions: Flammability (Rated UL 94 V-2)
-
Catalog Description (MFR): 15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding, Gray
-
Invoice Description (MFR): 15A 120 277V SP DEC SW GRAY.
-
Safety Data Sheet (SDS) Flag: Y
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: 15A 120 277V SP DEC SW GRAY.
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Includes: Ground Screw
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
UPC: 078477244616
-
GTIN: 00078477244616
-
Action: On-Off
-
Alternative Part Number: 7365931
-
Amperage Rating UOM: A
-
Residential Applications: Residential Applications
-
Voltage Rating UOM: VAC
-
Warranty: 2 years Limited
-
Single Pole: Single Pole
-
Ground: Grounding Screw Attached
-
Amperage: 15 Amp
-
Voltage: 120 to 277
-
HP Rating: 1/2HP-120V
-
Max Amp: 12 Amp
-
Termination: Quickwire Push-In & Side
-
Actuator Material: Thermoplastic
-
Body Material: Thermoplastic
-
Strap Material: Steel
-
Standards and Certifications: UL/CSA
-
Approval: UL, CSA
-
Operation Type: 1-Pole
-
PDW ID: ECL155718
-
Product UPC: 07847724461
-
Size REF: 1.4 IN x 4.2 IN
-
Standard Rocker: Standard Rocker
-
Wall Plate Included: No
-
Wiring: Quickwire push-in and side-wiring
-
Wire Gauge: 14-AWG solid copper wire (push-in), up to 12-AWG copper or copper clad wire (terminal screws)
-
Load Capacity: 1/2 hp at 120-Volts, 2 hp at 240-Volts
-
Temperature Rating: -40 to 120 deg C
-
Flammability Rating: V-2 per UL94
-
Standards: UL listed, CSA certified, NOM 057 standards
-
ECCN: EAR99
-
Rated Voltage: 120/277V AC
-
Color Family: Gray
-
No. of Poles: 1
-
Numeric ID: 3882618
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Torque Range: 14 – 18 in.-lbs
-
Operation Mode: OFF-NONE-ON
-
Current Rating: 60 Amps
-
Operating Voltage: 60 Volts
-
Contact Type: Normally Closed
-
Connector Type: Clamp
-
Switch Type: Rocker
-
Terminal: 2p6t
-
Circuit Type: 1-way
-
Mounting Type: Wall Mount
-
Actuator Type: Rocker
-
Number of Positions: 2
-
Lower Temperature Rating: 50 Degrees Fahrenheit
-
Upper Temperature Rating: 90 Degrees Fahrenheit
-
Control Method: Touch
-
Connectivity Protocol: X-10
-
Wattage: 15 watts
-
Control Type: Manual
-
Compatible Devices: Single-pole devices (lights, fans, etc.) and 120/277 volt systems
-
Smart Home Compatibility: Not Smart Home Compatible
-
SKU: 5601-2GY
-
Mfr. Part Number: 5601-2GY
