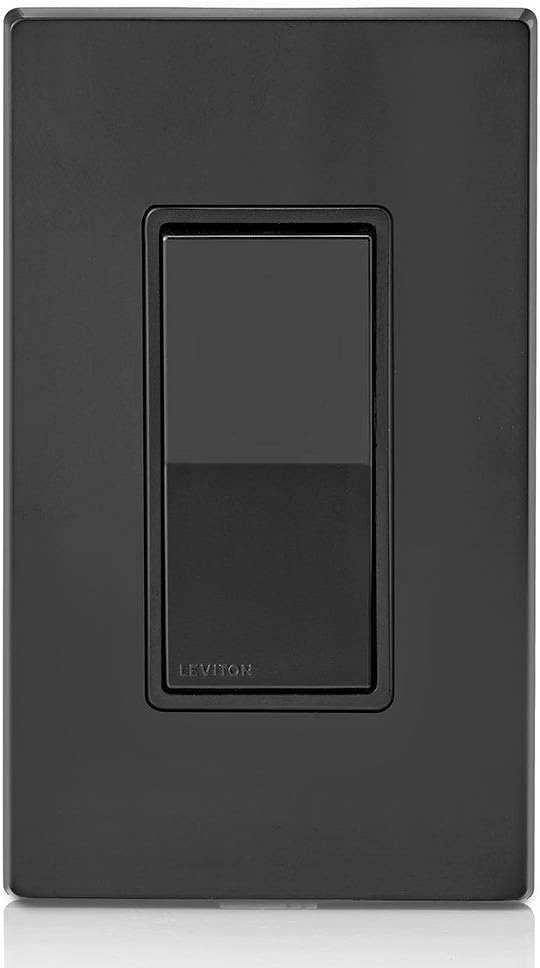

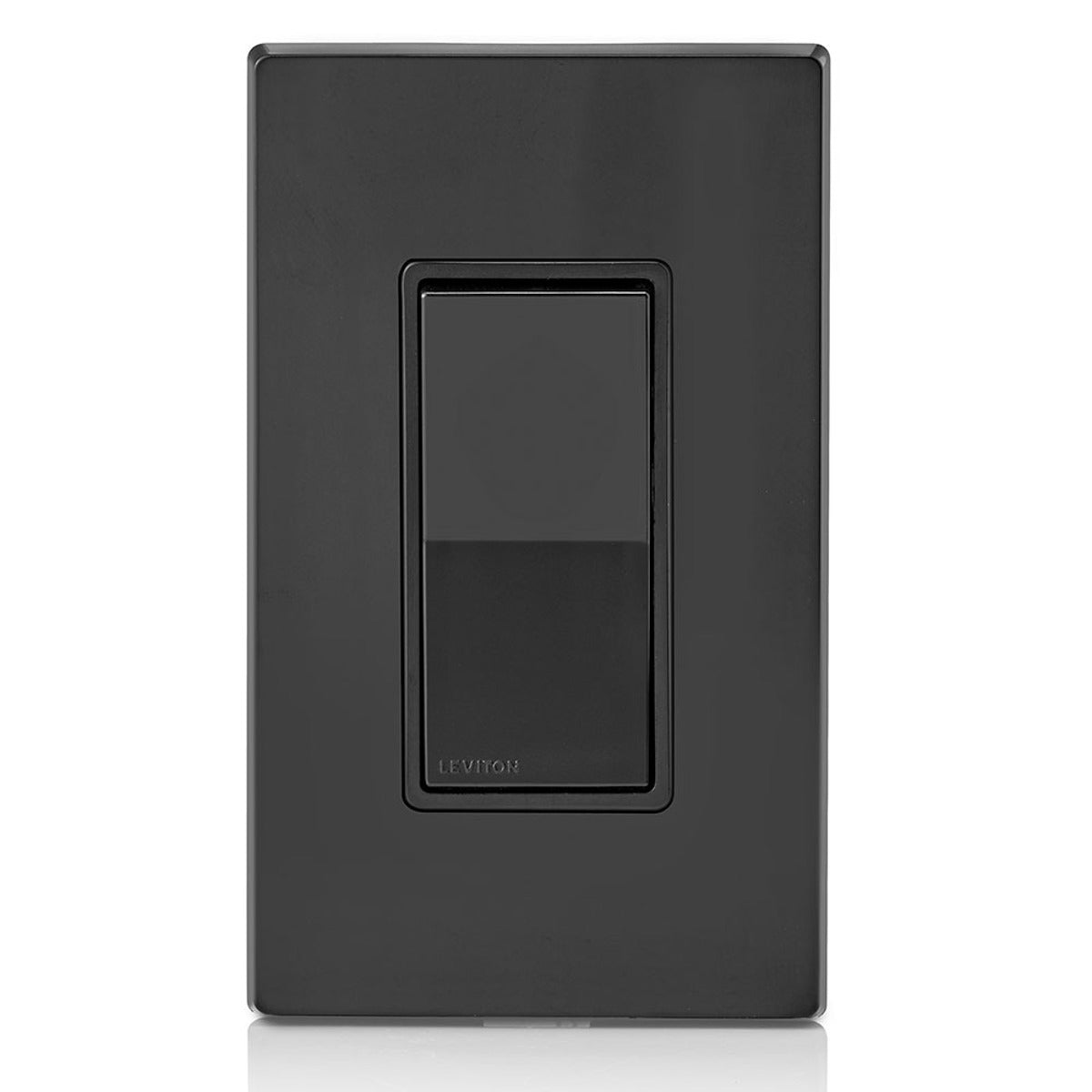

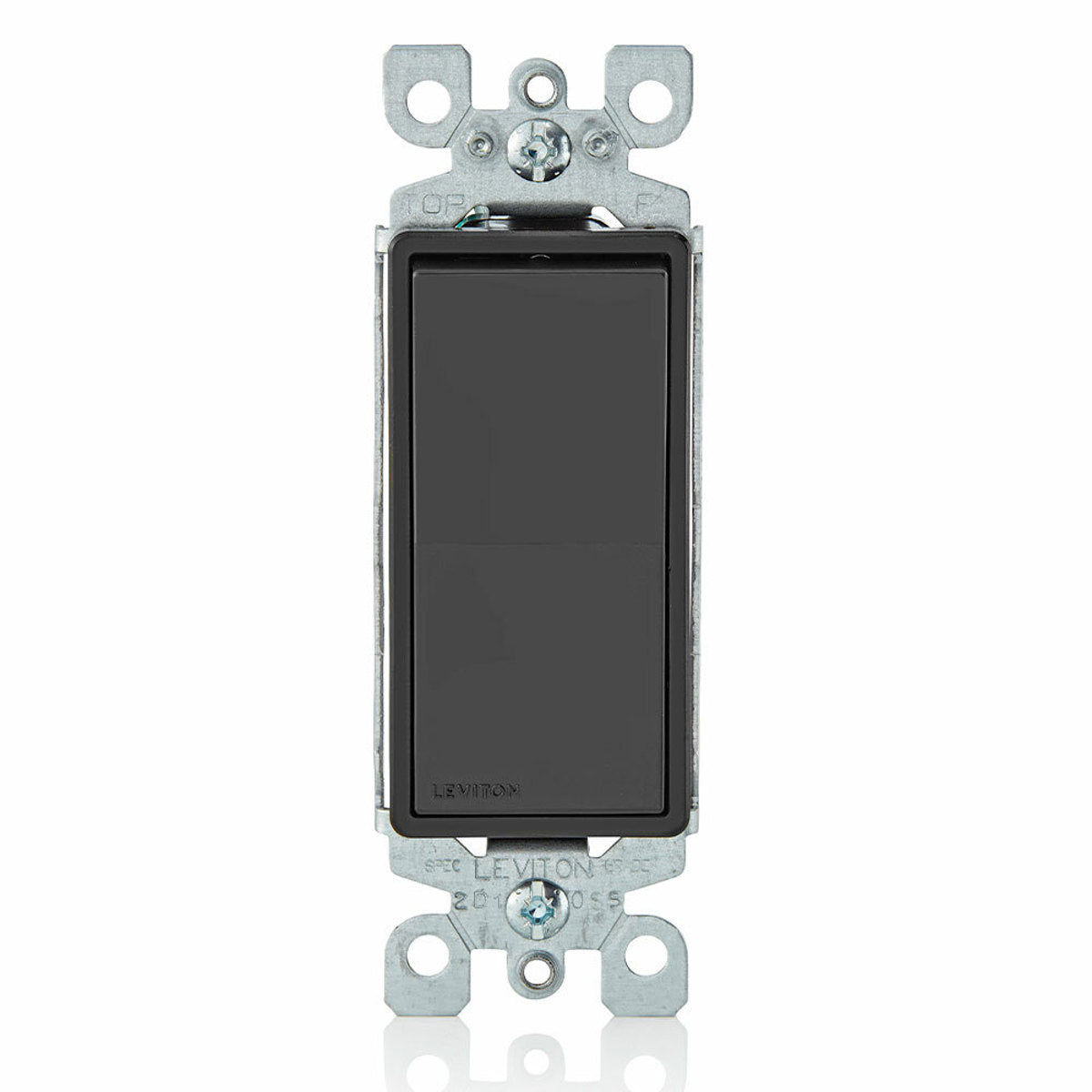

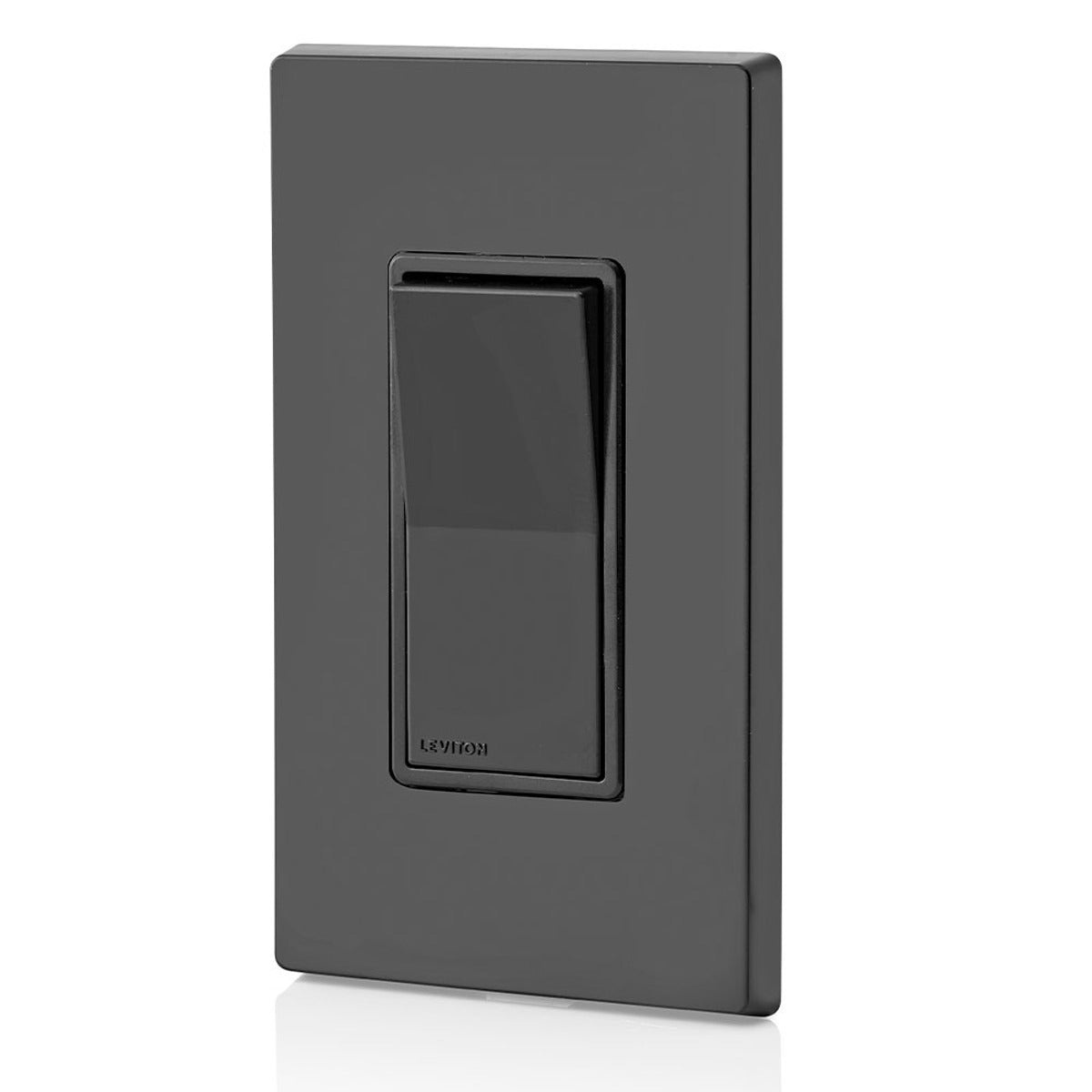

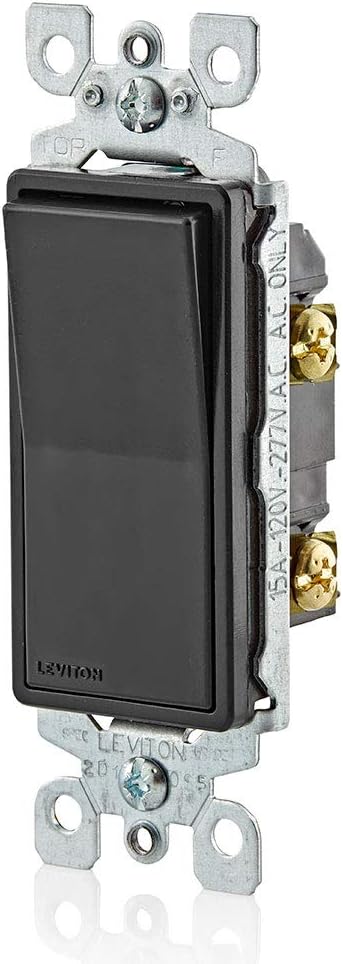

Leviton 5601-2E 15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding

Product Description

The Leviton 5601-2E is a 15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch designed for residential use. This grounding switch features a thermoplastic construction and is suitable for wallplate mounting. It ensures quiet operation and complements any decor.

• 15 Amp, 120/277 Volt
• Decora Rocker, Single-Pole
• AC Quiet Switch, Residential Grade, Grounding

Product Highlights

This Decora rocker switch is easy to install with quick wire push-in and side wiring, offering a sturdy and long-lasting performance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5601-2E
• Country of Origin: United States

Technical Specifications

• Color: Black
• Voltage: 120/277 VAC
• Terminal: Screw
• Unit Count: 1.0 Count
• Circuit Type: Single Pole
• Connector Type: Screws
• Current Rating: 15 Amps
• Operating Voltage: 250 Volts
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 5601-2E
• Number of Positions: 1
• Amperage Rating: 15 A
• Mounting: Surface
• Number of Poles: 1
• Power Rating: 1/2 hp, 2 hp
• Standards/Approvals: UL File No. E7458|CSA File No. LR3413|NOM 057|UL94 V-2 Flammability Rating
• Terminal Type: Quick-Wire Push-In/Side Wire
• Type: Grounding
• Environmental Conditions: -40 to 120 deg C Operating Temperature
• Includes: Ground Screw
• Material: Thermoplastic
• Application: Residential Applications
• Mounting Type: Wallplate
• TC Connection: Quickwired Push-In;Side Wired
• Contact Rating: 120/277 V
• Connection Type: Quickwired Push-In,Side Wired
• Rated Voltage: 120/277V AC
• Poles: 1-Pole
• Switch Type: AC Quiet Rocker
• Actuator: Rocker
• Body Material: Thermoplastic
• HP Rating: 1/2HP-120V 2HP-240V-277V Max 12 Amp
• Pole: 1
• Standards and Certifications: UL/CSA
• Strap Material: Steel
• Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
• Termination: Quickwire Push-In & Side
• Torque Range: 14 – 18 in.-lbs
• Item Type: Rocker Switch;Quiet
• Width: 1.399
• Width UOM: Inch
• Height: 4.2
• Height UOM: Inch
• Depth: 1.453
• Depth UOM: Inch
• Operation Mode: ON-OFF
• Contact Type: Normally Open
• Wattage: 4155 watts
• Control Type: On/Off
• Compatible Devices: Rocker-GFCI
• Smart Home Compatibility: Not Smart Home Compatible
• Contact Material: Aluminum
• Grade: Residential
• Color Family: Black
• No. of Poles: 1
