Leviton 55054 Straight Blade Name 125/250 Volt 30 Amp

Brand: LEVITON
SKU: 55054
Availability: In Stock

Ships same day if ordered by 12 pm
$31.18
$31.18
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

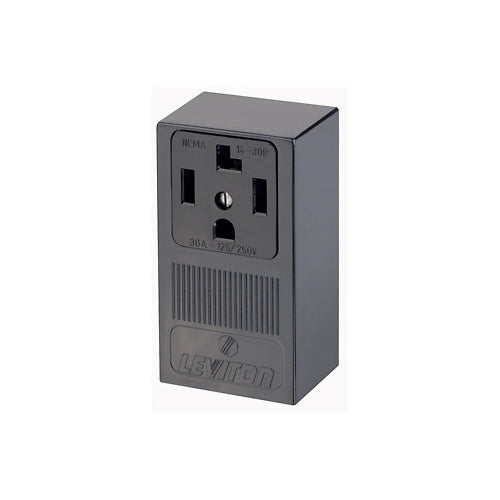

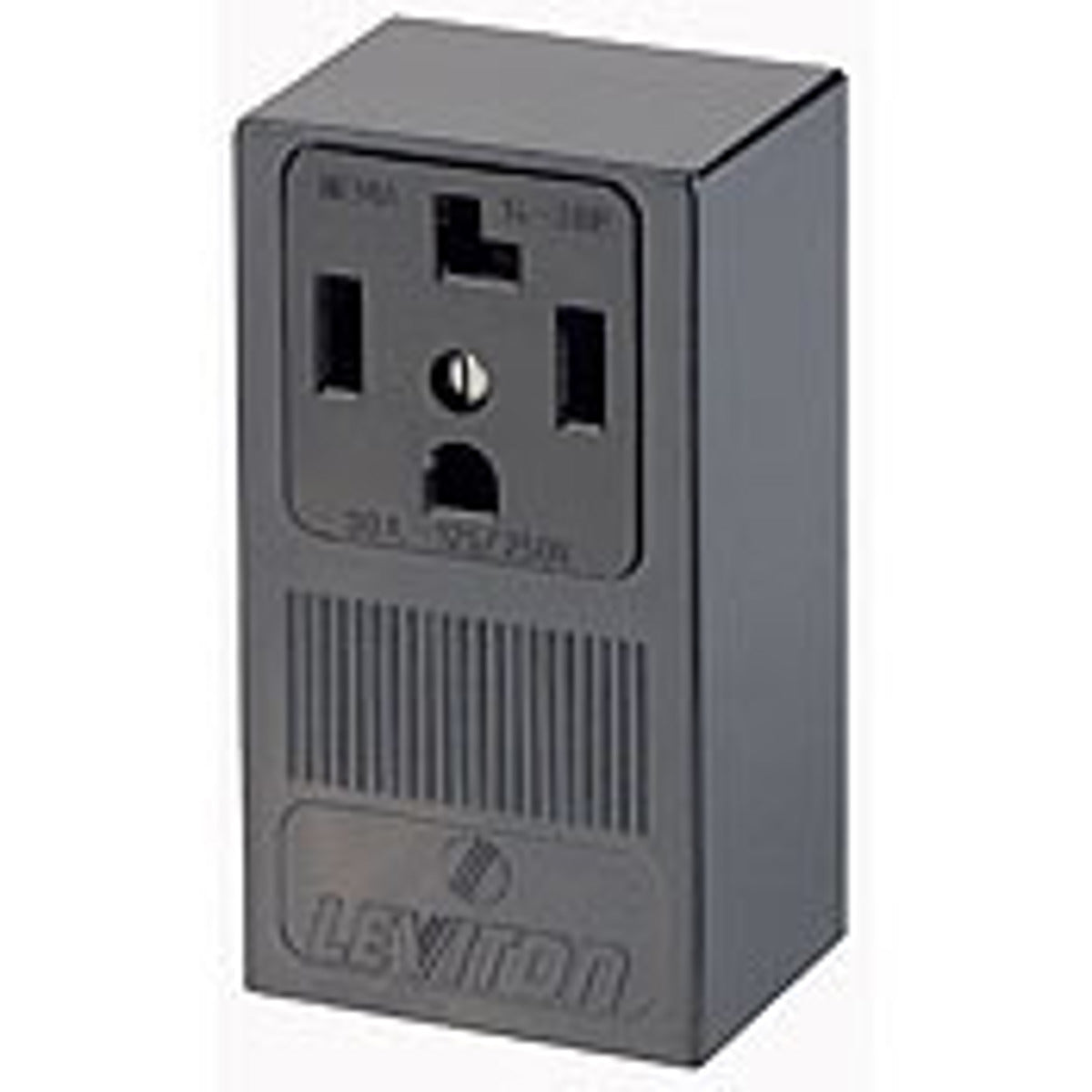

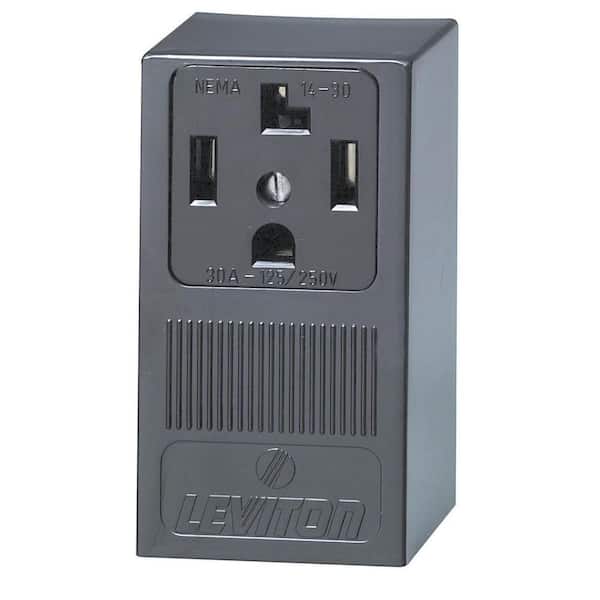

The Leviton 55054 straight blade receptacle is built of durable thermoplastic and equipped with heavy-gauge, double-wire copper alloy contacts. Terminals have ID markings to ensure correct and speedy wiring. This industrial grade receptacle is ideal for commercial applications. It is NEMA 14-30R, UL listed and CSA certified.

  • WD-6
  • Industrial Grade
  • Grounding

Product Highlights

The Leviton 55054 straight blade receptacle features heavy-gauge, double-wire copper alloy contacts and durable thermoplastic construction. It is suitable for commercial application.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 55054
  • Country of Origin: Please Contact Customer Service
Technical Specifications
NEMA
14-30R,WD-6
Type
Grounding
Brand
Leviton
Color
Black
Voltage
120 Volts
Amperage
30 A
Material
Thermoplastic
Standard
NEMA WD6, ANSI C73, NOM 057, CSA C22.2 No. 42 File No. 152105, UL 498 File No. E13399/E13393, UL94 V-2 Flammability Rating
Grounding
Grounding
Wire Size
14-6 AWG
Dielectric
2000 V
Horsepower
2 hp
Wire Count
4
Applications
For Commercial Application
Body Material
Thermoplastic
Face Material
Thermoplastic
Mounting Type
Surface
TC Connection
Side Wired
Connection Type
Side Wired
Number of Poles
3 Pole
Number of Wires
4 Wire
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Flamability Class
Rated V-2 Per UL 94
Temperature Rating
-40 degrees C to 60 degrees C
Dielectric Strength
2000 V (Min)
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Catalog Number
55054
Manufacturer
Leviton
Country of Origin
Mexico
Made in USA
No
Amperage Rating
30 A
Application
Commercial
Mounting
Surface
NEMA Rating
14-30R
Item Type
Straight Blade
Voltage Rating
125/250 VAC
Grade
Commercial
Mfg Standards/Approvals
ANSI (C-73), CSA C22.2 NO 42 (File 152105), NEMA (WD-6), NOM Certified (057), RoHS Compliant, UL Listed 498 (File E13399, File E13393)
Terminal Type
Side Wired
Pole
3
RoHS Compliant
Yes
AC Horsepower Ratings At Rated Voltage
2 HP
Current Limiting
Full Rated Current
Product ID
Ratings are permanently marked on device
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
ANSI
C-73
CSA C22.2 No. 42
File 152105
NOM
057
UL498
File E13399
Part Number
55054
Finish
Black
Power Source
wired electric
Amperage Capacity
30 Amps
Item Package Quantity
1
Number Of Pieces
1
Certification
NEMA, UL
Catalog Description (MFR)
RECEPTACLE, SINGLE, 3 POLE, 4 WIRE, GROUNDING, 30A-125/250V, NEMA 14-30R, SURFACE MOUNT, COF: BLACK, SPEC GRADE, HARDWARE BAGGED
Marketing Message (MFR)
Built of durable thermoplastic, Leviton power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Product Name
Straight Blade Power Receptacle
