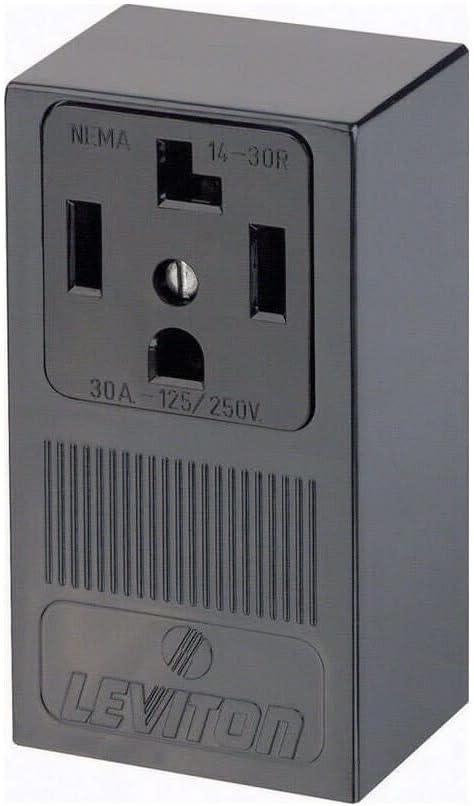

Leviton 55054-P00 Grounding Single Straight Blade Receptacle 30A-125/250V NEMA 14-30R

Product Description

Leviton 55054-P00 is a grounding single straight blade receptacle designed for 125/250 VAC applications. This receptacle has a current rating of thirty amps and is suitable for use in a variety of settings. The product is made from thermoplastic for durability and features side wire terminals for easy installation.

• Amperage rating of thirty amps.
• Compatible with NEMA 14-30R configuration.
• Suitable for industrial-grade applications.

Product Highlights

This receptacle supports a temperature range of -40 to 60 degrees Celsius, making it versatile for various environments.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: 55054-P00

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: NEMA 14-30R
• Material: Thermoplastic
• Color: Black
• Dimensions: 4.82 in H x 2.68 in W x 2.04 in D
• Temperature Rating: -40 to 60 °C
• Standard Approval: UL Listed, CSA Certified
