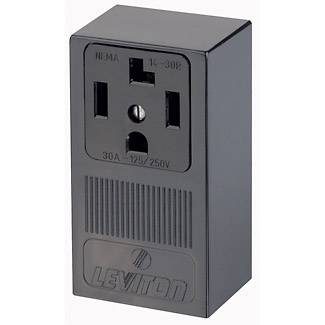

Leviton 55054 125/250 Volt 30 Amp 3-Pole 4-Wire NEMA 14-30R 2 Hp Black Thermoplastic Surface Mount Straight Blade Receptacle

Product Description

The Leviton 55054 is a straight blade receptacle rated for 125 to 250 volts and 30 amps. This industrial-grade device features a NEMA configuration of 14-30R and four wire connections. Built from thermoplastic, the receptacle can withstand rigorous conditions and supports side wiring for easy installation.

• Durable thermoplastic construction
• Meets NEMA 14-30R standards
• Ideal for commercial applications

Product Highlights

The receptacle is designed for safety and reliability in demanding environments, featuring grounding and a ten-year limited warranty.

Product Information

Standard Information

• Catalog Number: 55054
• Brand: Leviton

Technical Specifications

• Material: Thermoplastic
• Color: Black
• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• NEMA Rating: 14-30R
• Number of Wires: 4
• Number of Poles: 3
• Application: Commercial
• Dimensions: 4.82 H x 2.68 W x 24 D inches
• Dielectric Strength: 2000 V
• Environmental Conditions: Rated V-2 Per UL 94
• Operating Temperature: -40 to 60 degrees C
