Product Description

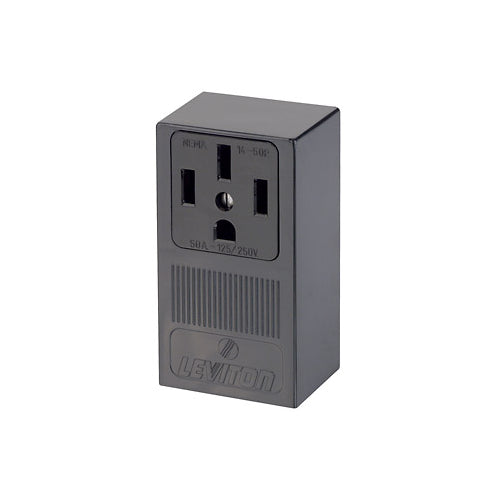

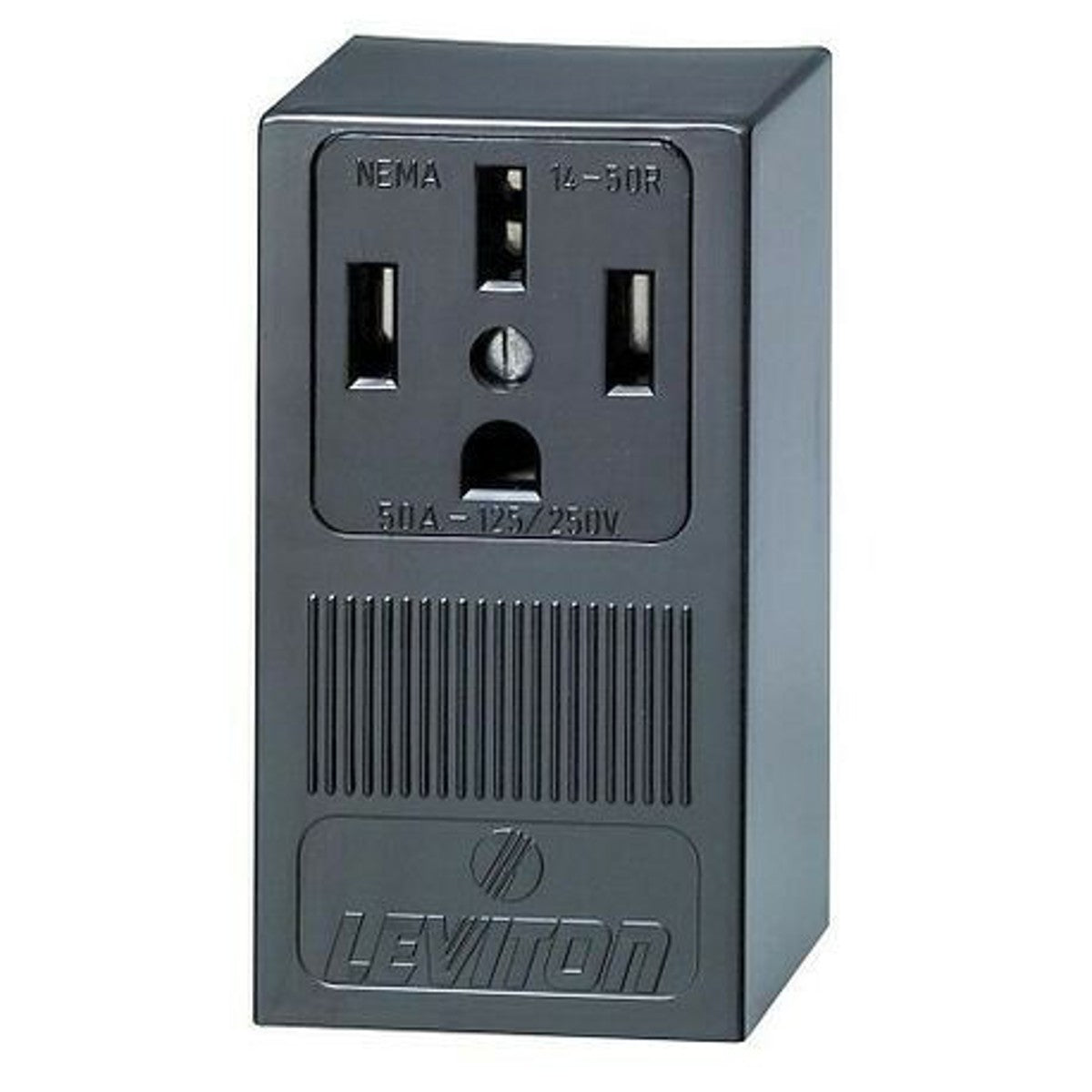

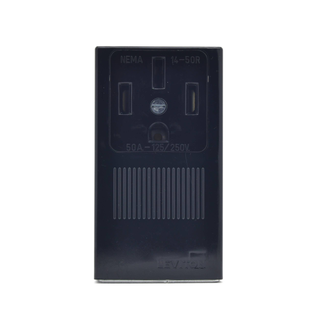

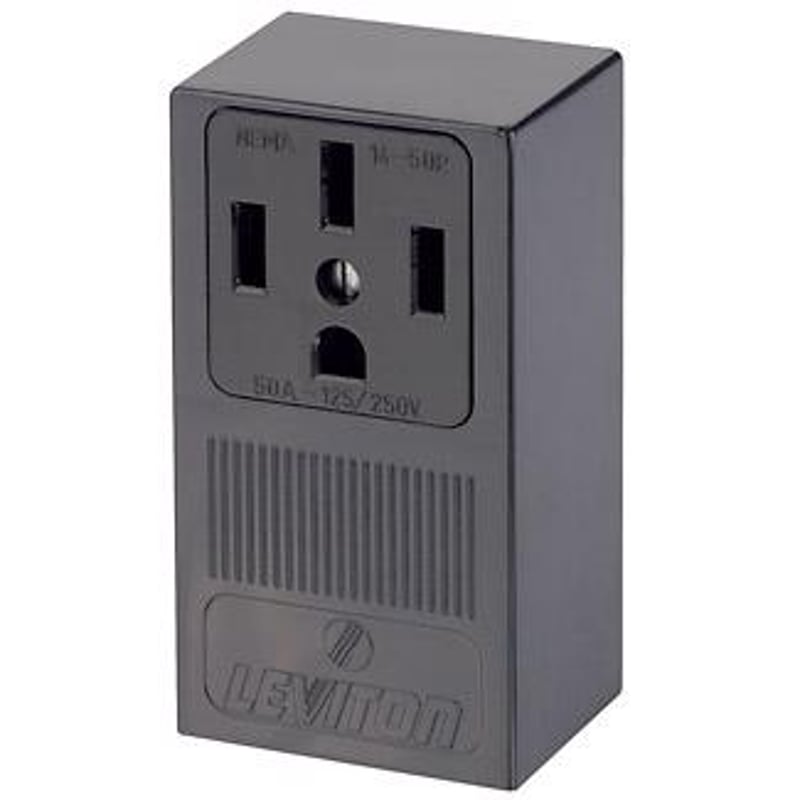

The LEVITON 55050-P00 is a straight blade receptacle, grounding single, with a voltage rating of 125/250 VAC and an amperage of 50 A. Built with durable thermoplastic, Leviton power receptacles come equipped with heavy gauge, double wire copper alloy contacts. Terminals have ID markings to ensure correct and speedy wiring.
- Built of durable thermoplastic, Leviton power receptacles come equipped with heavy gauge, double wire copper alloy contacts
- To ensure correct and speedy wiring, terminals have ID markings
- For all wallplates with 2.15 in Dia center hole
Product Highlights
This receptacle is ideal for industrial applications requiring a durable and reliable power connection.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 55050-P00
-
Country of Origin: Mexico
Technical Specifications
-
Type: Grounding Single
-
Grade: Industrial
-
Material: Thermoplastic
-
Dimensions: 4.82 in H x 2.68 in W x 2.04 in D
-
Horsepower: 3 hp
-
NEMA Rating: NEMA 14-50R
-
Manufacturer: LEVITON
-
Terminal Type: Side Wire
-
Voltage Rating: 125/250 VAC
-
Amperage Rating: 50 A
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 60 deg C
-
Application: Commercial, Residential
-
Operating Temperature: -40 °C 60 °C
-
Dielectric: 2000 V
-
Flammability Class: Rated V-2 Per UL 94
-
Grounding: Grounding
-
NEMA: WD-6
-
Temperature Rise: 30 °C 150 %
-
ANSI: C-73
-
CSA C22.2 No. 42: File 152105
-
NOM: 057
-
UL498: File E13399
-
Warranty: 10 years Limited
-
Current Rating: 50-Amps
-
Terminal Connection: Side wired
-
Wire Size: 4-8-AWG
-
Dielectric Strength: 2000-Volts
-
Maximum Load Capacity: 3 hp
-
Mounting: Surface mountable
-
Standards: UL498: File E13399 Listed, CSA C22.2 No. 42: File 152105, ANSI: C-73, NEMA: WD-6, NOM: 057 Approved
-
Voltage: 125 Volts
-
Connector Type: Plug in
-
Connectivity Technology: High Power Connectors
-
Total Power Outlets: 2
-
Specification Met: CSA, NOM, UL
