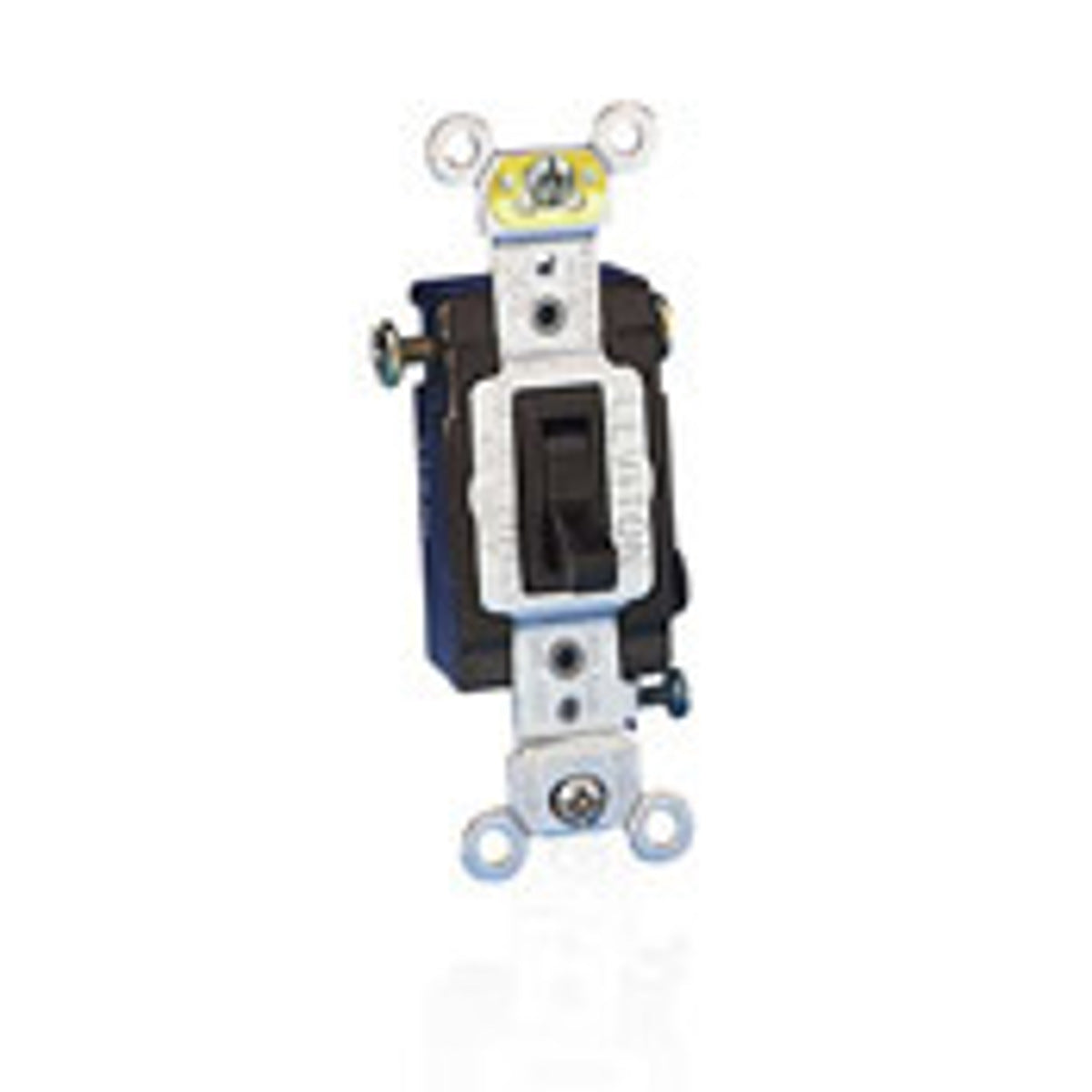

Leviton 54524-2W Toggle Framed 4-Way AC Quiet Switch 20 Amp 120/277 VAC

Product Description

Leviton 54524-2W is a 4-way framed grounding AC quiet toggle switch designed for commercial applications. With a voltage rating of 120/277 VAC and a current rating of 20 Amps, this switch is ideal for controlling lighting in various commercial settings.

• Includes large head triple drive screws for easy installation.
• Constructed with a heavy gauge, rust-resistant steel mounting strap.
• Compatible with no fourteen to twelve AWG copper wire.

Product Highlights

The Leviton toggle switch provides superior functionality and reliability for light switch applications in commercial locations.

Product Information

Standard Information

• Brand: Leviton
• MPN: 54524-2W

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Power Rating: 800 W, 1000 VA
• Operating Temperature: -40 to 120 degrees Celsius
• Material: Thermoplastic
• Size: 46 inches H x 1.31 inches W x 1.52 inches D
• Enclosure Type: NEMA WD-1/WD-6
• Termination Type: Side Wire
