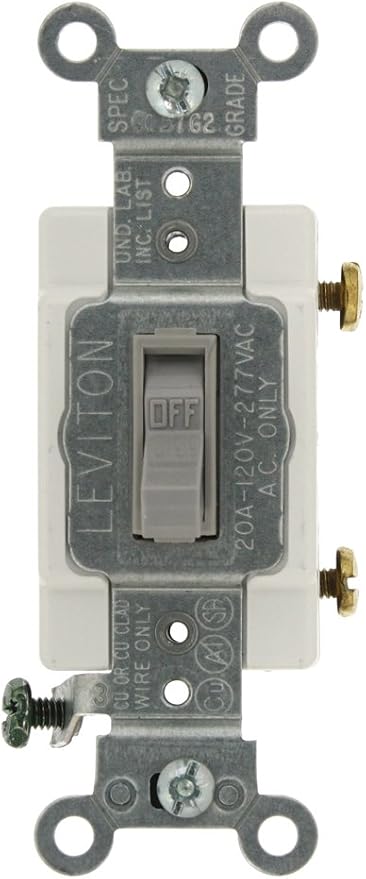

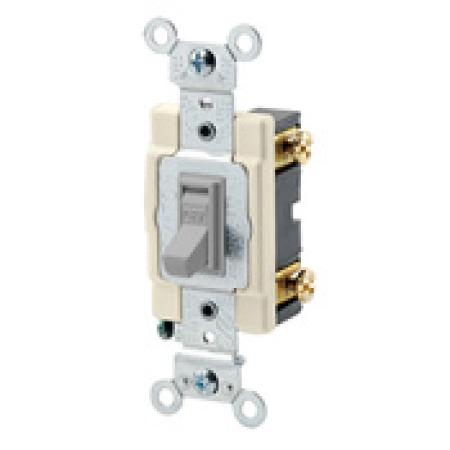

Leviton 54521-2GY Toggle Framed Single-Pole AC Quiet Switch 20-Amp (46 H x 1.31 W x 1.52 D) 1221GY

Product Description

Leviton 54521-2GY is a commercial-grade framed toggle single-pole AC quiet switch rated 20 A at 120/277 V AC with grounding. The device features a side-wired connection and box mounting, thermoplastic construction, and meets NEMA, ANSI, CSA, NOM and UL standards. It is flammability rated V-2 per UL94 and operates across a wide temperature range of -40 to +120 deg C.

• Electrical rating: 20 A, 120/277 V AC; motor rating 1 hp at 120 V and 2 hp at 240�277 V
• Framed single-pole toggle with grounding, side-wire terminals, box mounting, and thermoplastic body
• Standards and durability: NEMA WD-1/WD-6; ANSI C-73; CSA C22.2 No. 111; UL 20; Federal Spec WS-896E; flammability V-2 per UL94; rated for 50,000 cycles

Product Highlights

Commercial specification grade single-pole framed toggle switch, 20 A at 120/277 V AC, side-wired box mounting, thermoplastic construction, wide operating temperature and multiple agency approvals.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 54521-2GY
• Country of Origin: Mexico
