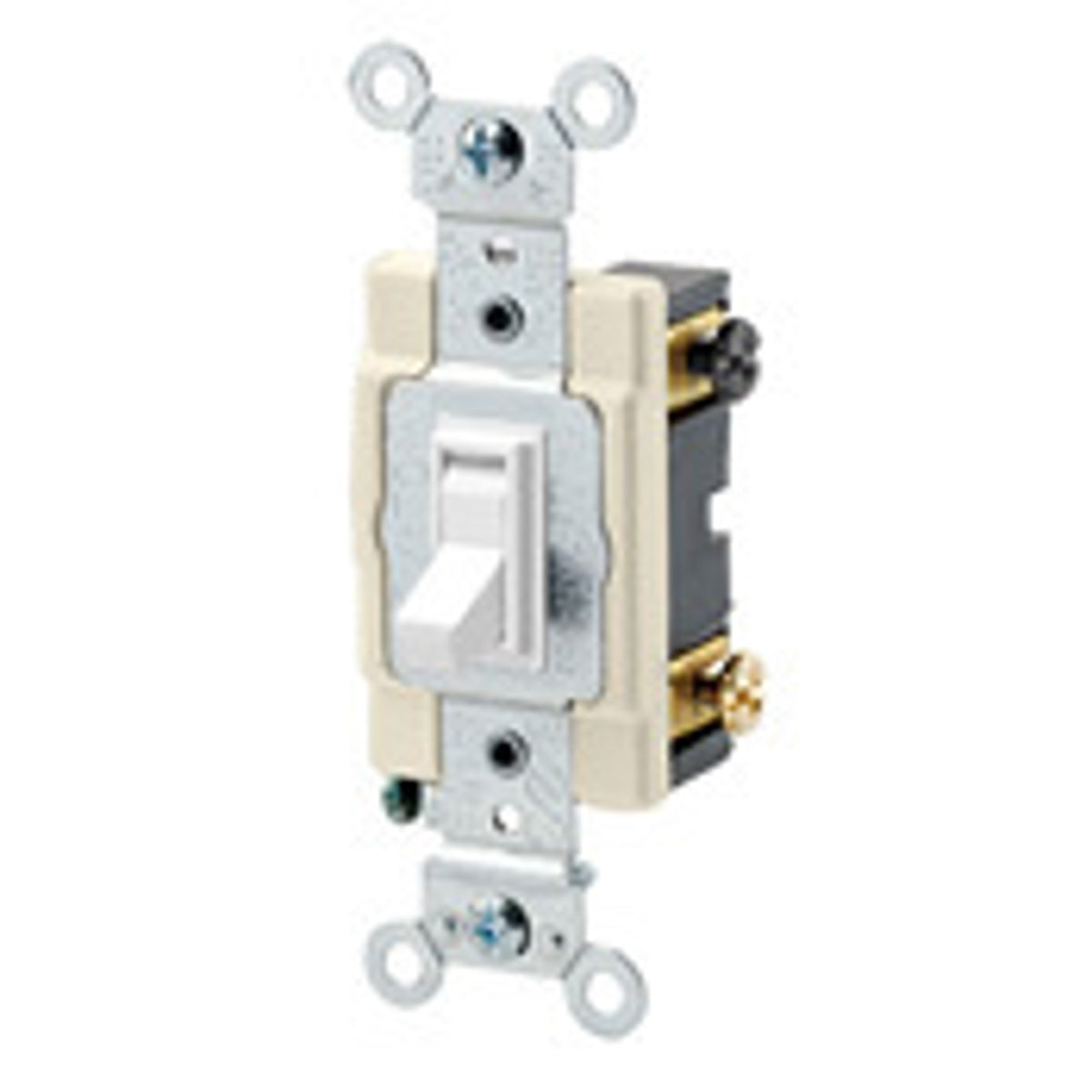

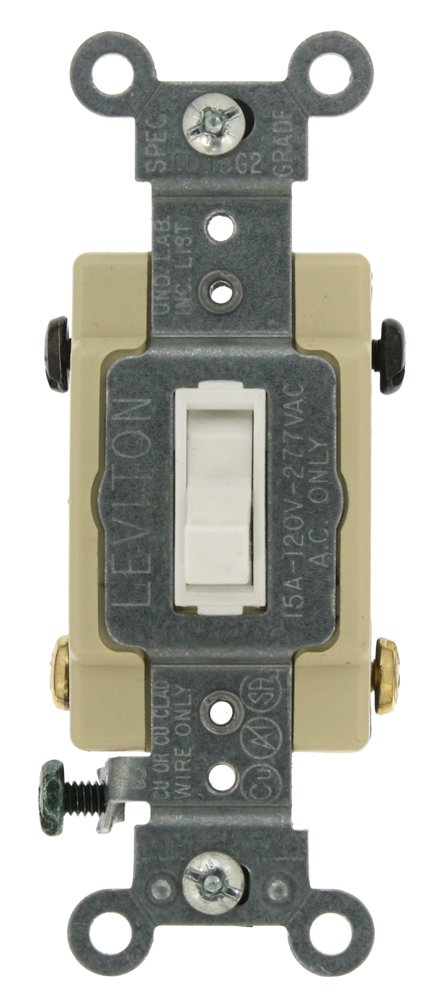

Leviton 54504-2W 4-Way Framed Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating

Product Description

The Leviton 54504-2W commercial specification grade switches are designed for outstanding reliability and top performance in commercial settings. This 4-way framed grounding AC quiet toggle switch operates at 120/277 VAC and 15 A, with a power rating of 1/2, 2 hp. Ideal for municipal facilities, government buildings, and healthcare facilities.

• AC Quiet Switch
• 4-Way
• Commercial, Specification Grade

Product Highlights

This Leviton toggle switch ensures reliable performance in demanding commercial environments. It features a robust design and is suitable for a wide range of applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 54504-2W
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Type: 4-Way Framed Grounding
• Current Rating: 15 Ampere
• Voltage Rating: 120/277 VAC
• Power Rating: 1/2, 2
• Operation Type: 4-Way
• Material: Thermoplastic (Body), Polycarbonate (Toggle)
• Wiring: Side
• Wall Plate Included: No
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM 057
• Operating Temperature: -40 to +120 DEG C
• Grounding Type: Grounding
• Strap Material: Steel
• Contact Material: Silver-Cadmium
• Wire Size: 14 to 12 AWG (Side)
• Actuator: Toggle
• Mounting: Surface
• Enclosure: NEMA WD-1/WD-6
• Terminal Type: Side Wire
• Amperage Rating: 15 A
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Brand Name: Leviton
• Sub Brand: Commercial
• Amps: 15 amps
• Switch Type: Toggle
• Product Type: Switch
• Number in Package: 1 pk
• CSA Listed: Yes
• Volts: 120/277 volt
• Packaging Type: Boxed
• UL Listed: Yes
• Assembled Width: 1.33 in
• Height: 4.06 in
• Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
• Manufacturer Part Number: 54504-2W
• Country of Origin: Mexico
• RoHS Compliant: False
• Contacts: Silver-Cadmium .031 Thick
• Voltage: 120/277 VAC
• Product ID: Stamped on Strap
• Base Material: PBT
• Body Material: Thermoplastic
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Cover Material: Nylon
• Max. Amperage: 12 Amp
• Terminal Screws: Steel 8-32
• Flammability: Rated V-2 per UL 94
• Actuator Material: Polycarbonate
• Terminal Accom.: 14-12 AWG
• Temperature Rise: Maximum 30 degrees C rise
• Dielectric Voltage: Withstands 1500V for 1 minute
• Screw Terminal Torque: 14-18 in-lbs
• Country: USA|Canada
• IDEA Index ID: 7348271
• Power Rating UOM: hp
• Voltage Rating UOM: VAC
• IGCC: 5200
• Connection: Side Wired
• Family group: WIRING DEVICES
• Number Of Poles: 4-way
• WES Product code: 2734297260
• Alternative Part Number: 7348271
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• UPC: 078477124710
• GTIN: 00078477124710
• Amperage Rating UOM: A
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fe
• Catalog Number: 54504-2W
• Made in USA: No
• Number of Poles: 4
• Item Type: Toggle Switch
• Width: 1.31
• Width UOM: Inch
• Depth: .92
• Depth UOM: Inch
• Cross Reference Products: RS415W, RS415W, 664WG
• AC Horsepower Ratings: HP Rating : 1/2HP-120V 2HP-240V
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• PDW ID: ECL155341
