Product Description

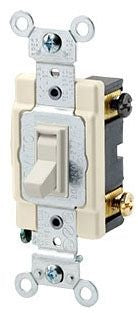

Leviton 54504-2T is a 4-way framed toggle switch designed for commercial use. It operates at 120/277 VAC and can handle up to 15 Amps. The switch features a grounding design and is suitable for both light and heavy-duty applications. The light almond color blends well in various settings, making it an excellent choice for municipal facilities, hospitals, and educational institutions.
- Reliable performance in commercial settings
- NEMA WD-1/WD-6 enclosure for durability
- Accepts copper wire from fourteen to twelve AWG
Product Highlights
This switch is ideal for applications requiring dependable service in demanding environments, ensuring safety and efficiency.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: 54504-2T
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Power Rating: 1/2, 2 hp
-
Environmental Conditions: -40 to 65 deg C Operating Temperature
-
Material: Thermoplastic
-
Dimensions: 4.06 in H x 1.31 in W x 0.92 in D
-
Actuator Type: Toggle
-
Enclosure Type: NEMA WD-1/WD-6
-
Mounting Type: Surface
-
Terminal Type: Side Wired
