Leviton 54503-2W 3-Way Framed AC Quiet Toggle Switch 120/277V

Product Description

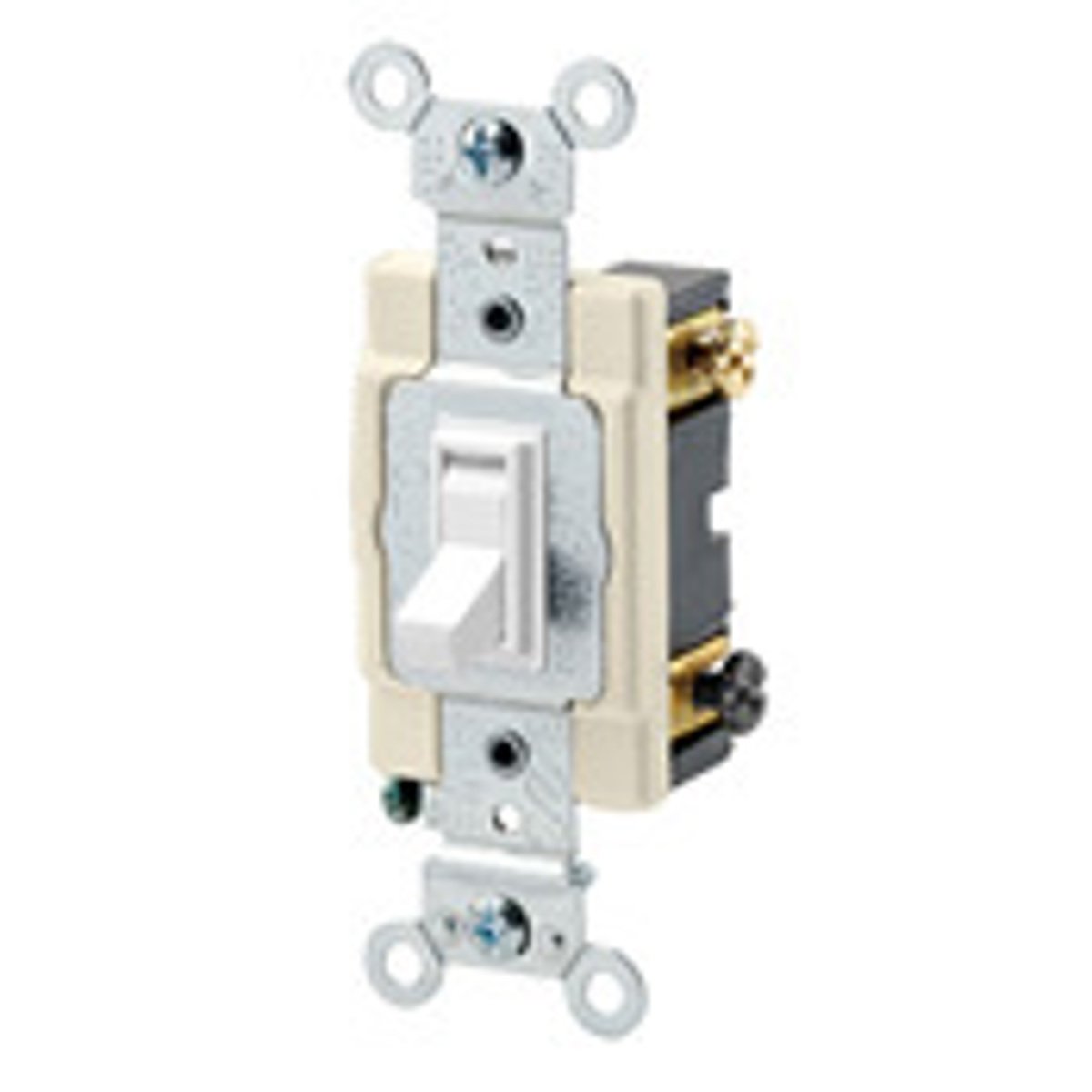

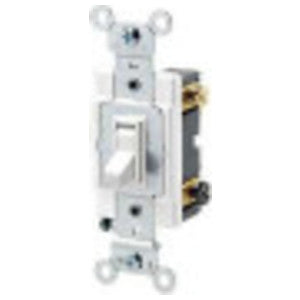

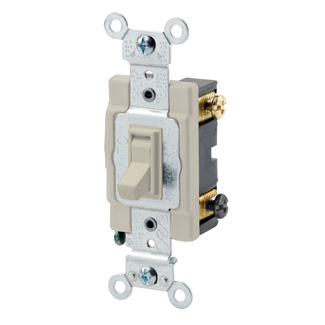

The Leviton 54503-2W is a reliable 3-way framed AC quiet toggle switch. It operates at 120/277 VAC and supports up to 15 amps. Its compact design measures 46 inches high, 1.31 inches wide, and 1.47 inches deep. This switch is suitable for various commercial applications.

• Compatible with a power rating of 1/2 hp at 120 VAC and 2 hp at 240 VAC.
• Designed for surface mounting with side wire terminals.
• Constructed from thermoplastic for durability.

Product Highlights

This switch is ideal for municipal buildings, schools, hospitals, and similar environments.

Product Information

Standard Information

• Brand: Leviton
• MPN: 54503-2W

Technical Specifications

• Type: 3-Way Framed Grounding
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2, 2 hp
• Actuator: Toggle
• Mounting: Surface
• Enclosure: NEMA WD-1/WD-6
• Environmental Conditions: -40 to 120 degrees C Operating Temperature
• Dimensions: 46 inches H x 1.31 inches W x 1.47 inches D
