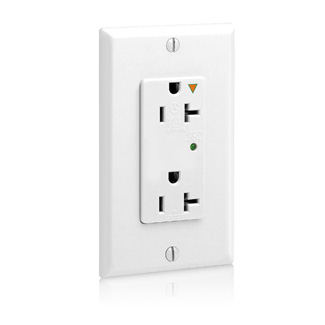

Leviton 5380-IGW Surge Protective Receptacle 20 Amp 125 Volt NEMA 5-20R

Product Description

Leviton 5380-IGW is a surge protective receptacle designed for safe electrical connectivity. This 2-Pole 3-Wire Type 3-Duplex Isolated Self-Grounding receptacle operates at 125 VAC and supports up to 20 A. It offers protection against surges with a 5 kA short circuit rating and an energy absorption capacity of 720 joules. The unit is made of durable polycarbonate, designed for surface mounting, and features lights as indicators to show operational status.

• 20 Amp, 125 Volt surge protective receptacle
• Self-grounding design with LED indicator light
• Compliant with UL 1449 standards for surge protection

Product Highlights

This receptacle is built to divert harmful voltage transients away from sensitive electronic equipment in various environments, including residential and commercial spaces. It ensures operational safety and reliability, minimizing the risk of equipment damage due to surges.

Product Information

Standard Information

• Brand: Leviton
• Type: Surge Protective Receptacle

Technical Specifications

• MPN: 5380-IGW
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Operating Temperature: -40 to 60 degrees Celsius
• Dimensions: 3.81 inches H x 1.7 inches W x 1.47 inches D
• Material: Polycarbonate
• Short Circuit Current Rating: 5 kA
• Color: White
• Mounting Type: Surface
• Connection: Back/Side Wired
