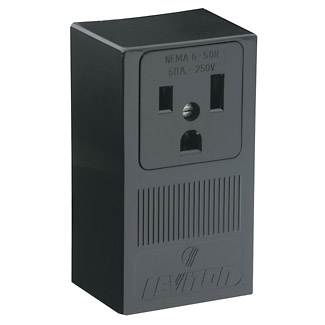

Leviton 5378 250 Volt 50 Amp 2-Pole 3-Wire NEMA 6-50R 3 Hp Black Thermoplastic Surface Mount Straight Blade Receptacle

Product Description

The Leviton 5378 is a straight blade power receptacle designed for heavy-duty use in industrial environments. This model is rated for 250 volts and 50 amps. It features a 2-pole and 3-wire setup, ideal for commercial applications. Made of thermoplastic material, it offers durability and reliability for various demanding settings.

• Compatibility with 14 to 6 AWG wire sizes
• Meets ANSI and UL standards for safety and performance
• Side wired connection for easy installation

Product Highlights

This receptacle is suitable for factories, schools, and commercial office buildings.

Product Information

Standard Information

• Application: Commercial
• Grounding: Grounding

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• NEMA Rating: 6-50R
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 3 hp
• Temperature Rating: -40 to 60 degrees C
• Size: 4.82 H x 2.68 W x 24 D inches
