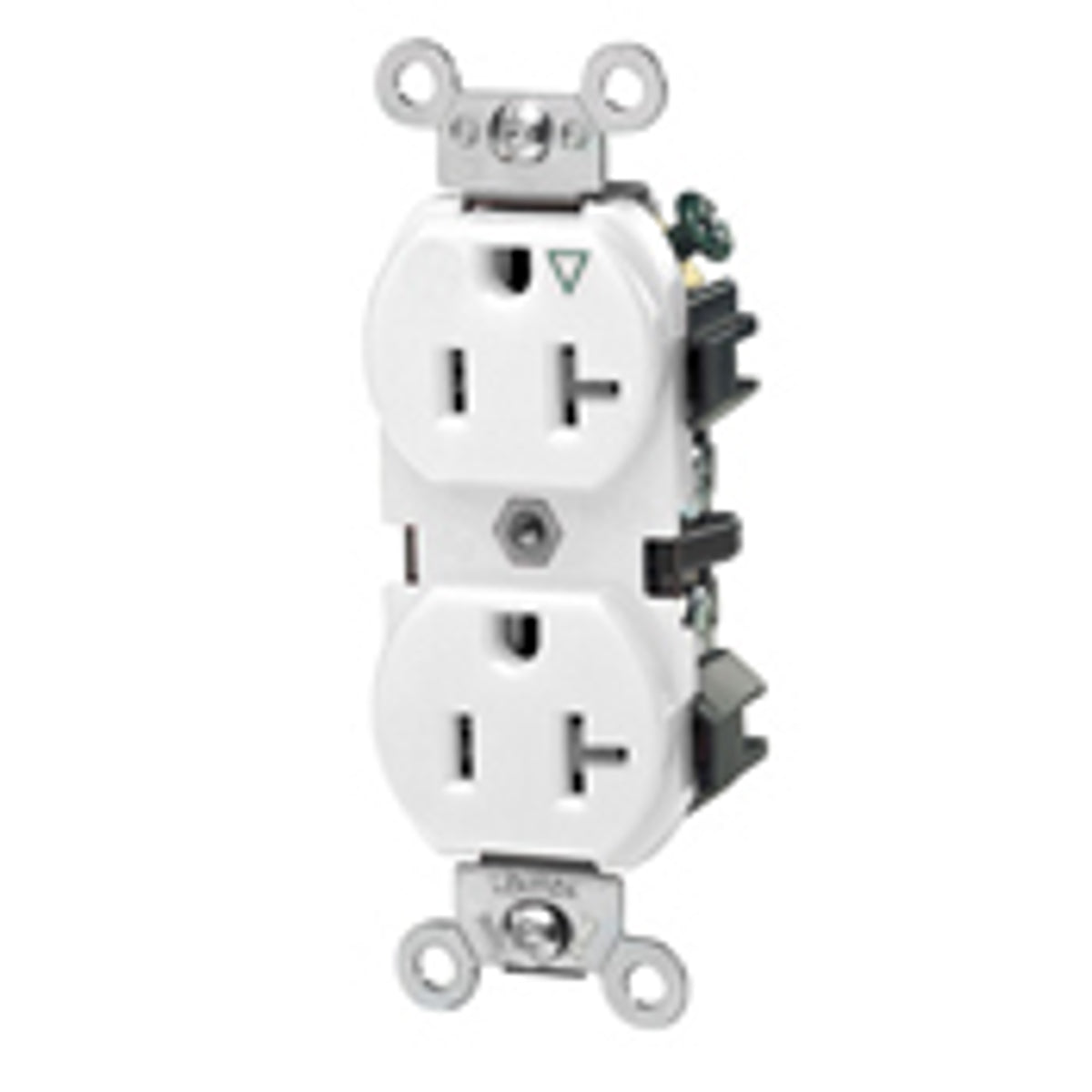

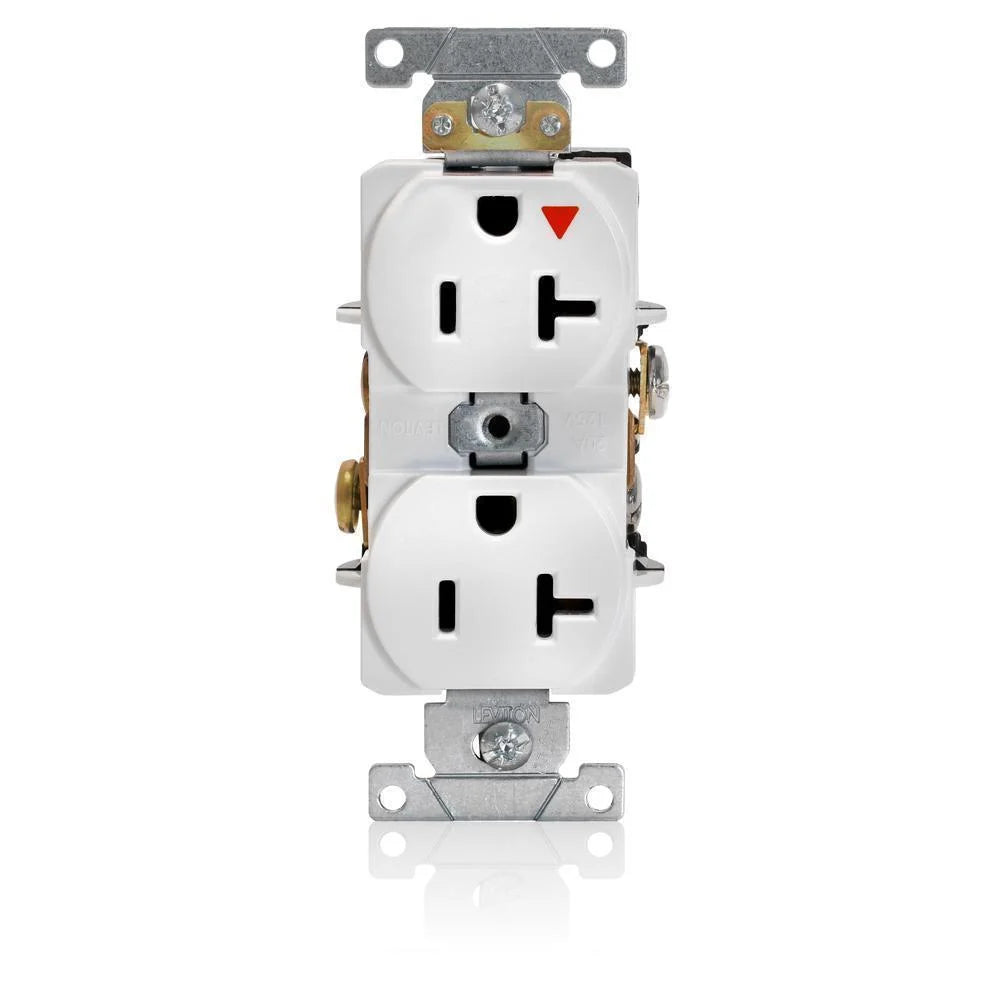

Leviton 5362-IGW Industrial Series Heavy Duty Specification Grade Duplex Receptacle

Product Description

The LEVITON 5362-IGW is an industrial series heavy-duty specification grade duplex receptacle. This straight blade receptacle is designed to withstand harsh conditions typically associated with industrial environments. It is a 20-Amp, 125 Volt receptacle with isolated ground.

• Impact-resistant thermoplastic nylon cover and body
• Smooth face does not collect dirt

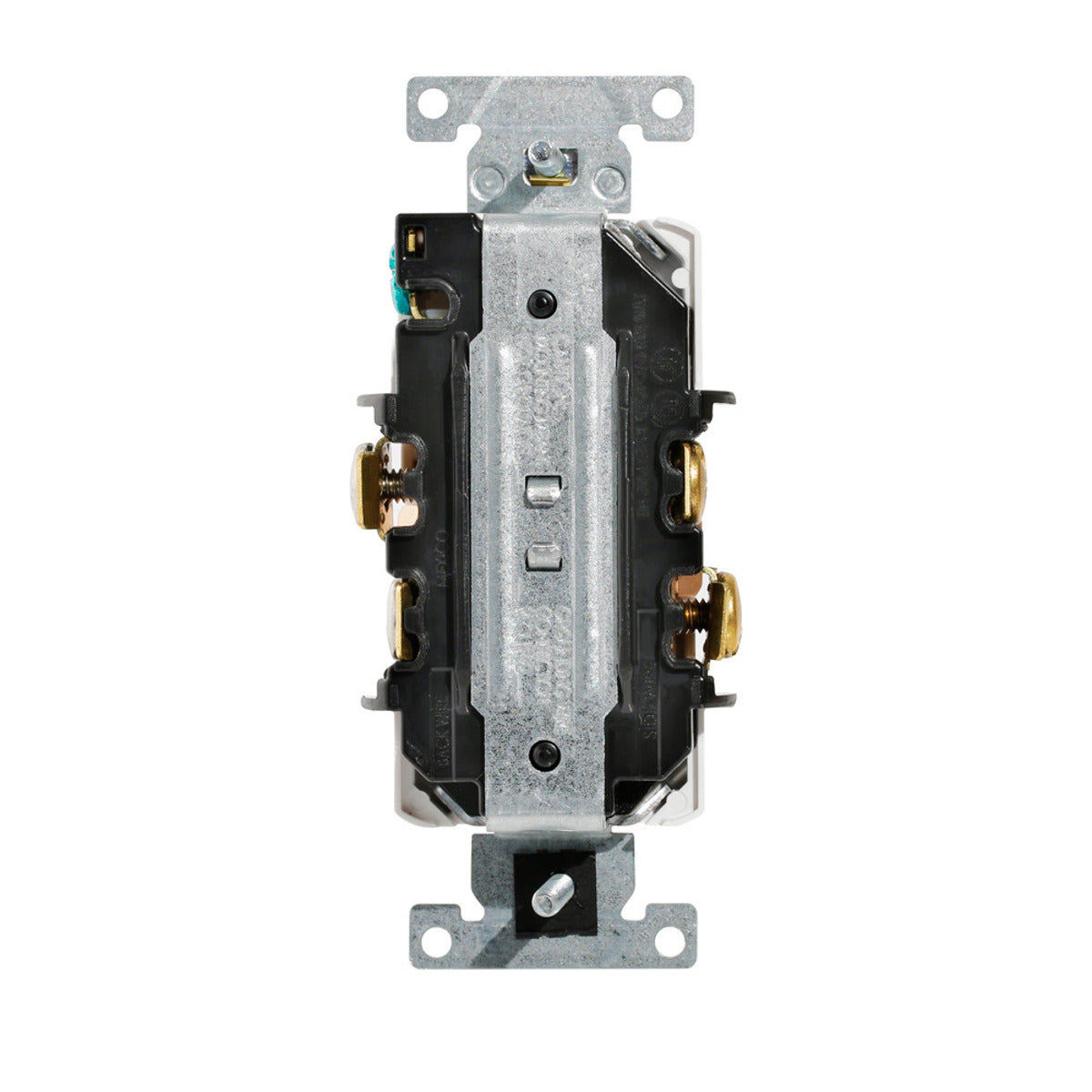

• Back and side wiring options

Product Highlights

This receptacle is the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5362-IGW
• Country of Origin: Mexico

Technical Specifications

• UNSPSC Code: 39121400
• Catalog Number: 5362-IGW
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 20 A
• Application: Industrial
• Connection: Back and Side Wired
• Material: Thermoplastic Nylon
• Mounting: Wallbox
• NEMA Rating: 5-20R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: UL Listed and CSA Certified
• UPC: 078477053270
• GTIN: 00078477053270
• Item Type: Straight Blade;Duplex Outlet
• Width: 1.33 in
• Height: 4.06 in
• Depth: 1.12 in
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to 60 deg C
• Voltage Rating: 125 VAC
• Wire Size: 14-10 AWG
• Enclosure: NEMA WD-1/WD-6
• Grade: Industrial/Specification
• Horsepower: 1 hp
• Terminal Type: Back/Side Wire
• Type: Heavy Duty Isolated Ground
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Alternative Part Number: 7332584
• Amperage Rating UOM: A
• Country Of Origin: MX
• Dimensions: 4.06 in H x 1.33 in W x 1.12 in D
• Horsepower UOM: hp
• IDEA Index ID: 7332584
• Voltage Rating UOM: VAC
• Dielectric Strength: 2000 (Min.)
• Number Of Poles: 2 Pole
• Number Of Wires: 3
• IGCC: 4536
• Vendor: 78477
• Family group: WIRING DEVICES
• WES Product code: 2734292980
• Approval: UL 498, CSA C22.2, NOM 057
• Configuration: 5-20R
• Constructional Feature: Impact Resistant
• Ground Type: Isolated Grounding
• Wiring: Back, Side
• Applicable Standard: ANSI C73, NEMA WD-6
• Contact Material: Phosphor Bronze
• Strap Material: Galvanized Steel
• Receptacle Type: NEMA 5-20R
• Current Rating: 20 A
• Nema: 5-20R
• RoHS Compliant: Yes
• At Rated Voltage: 1 HP
• Current Limiting: Full Rated Current
• Pole: 2
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Body Material: Thermoplastic Nylon
• Clamp Nuts: Galvanized Steel
• Grounding Screw: Brass 8-32
• Isolated Ground System: Brass
• Line Contacts: Phosphor Bronze
• Terminal Screws: Plated Brass
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Torque Range: 14-16 inch pounds
• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Plug In
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 2
• ADI Part Number: LV-5362IGW
• Manufacturer Part Number: 5362IGW
• Product Name: Power Socket
• Product Type: Power Socket
• Volts (V AC): 125
• Height (In.): 4.01
• Width (In.): 1.33
• Depth (In.): 0.85
