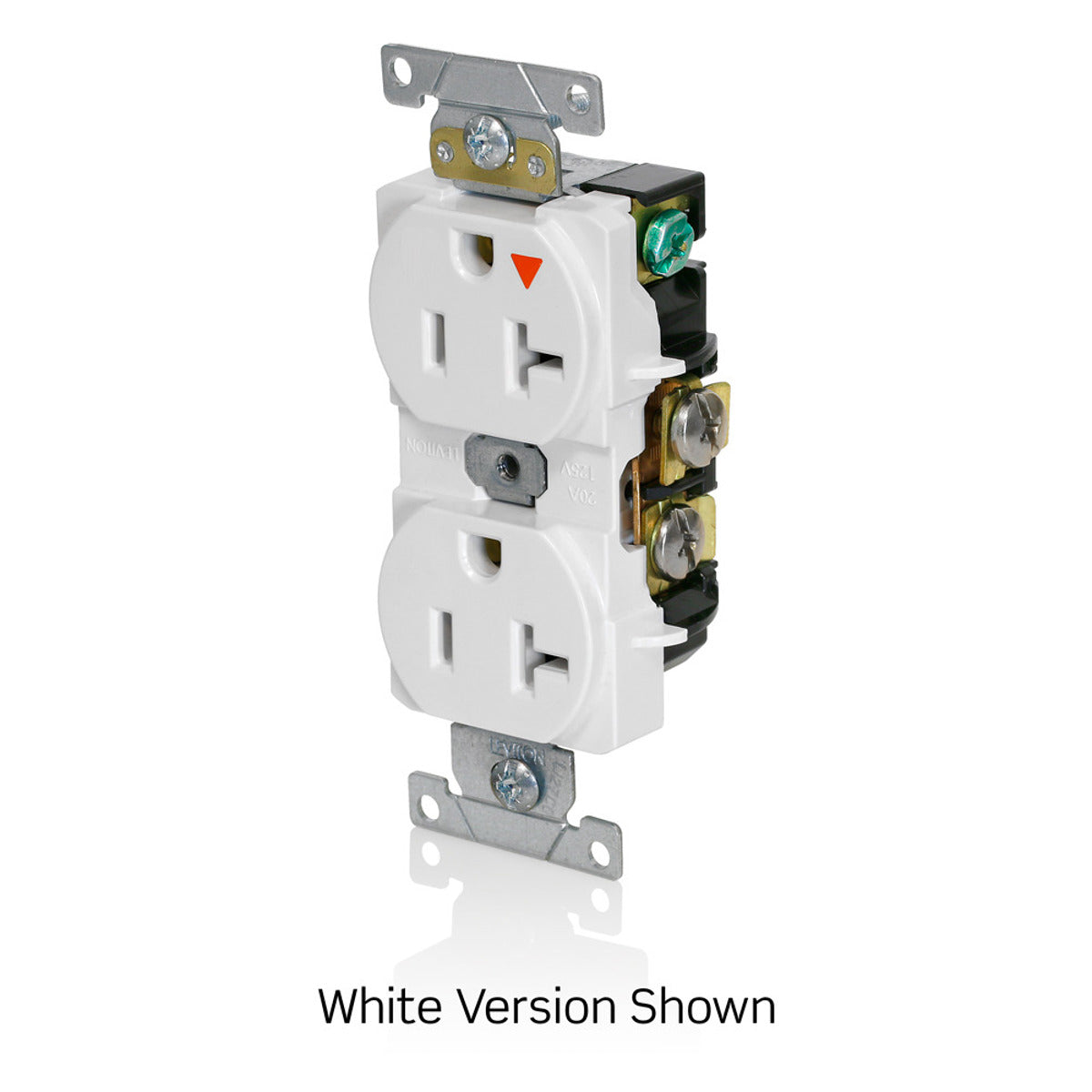

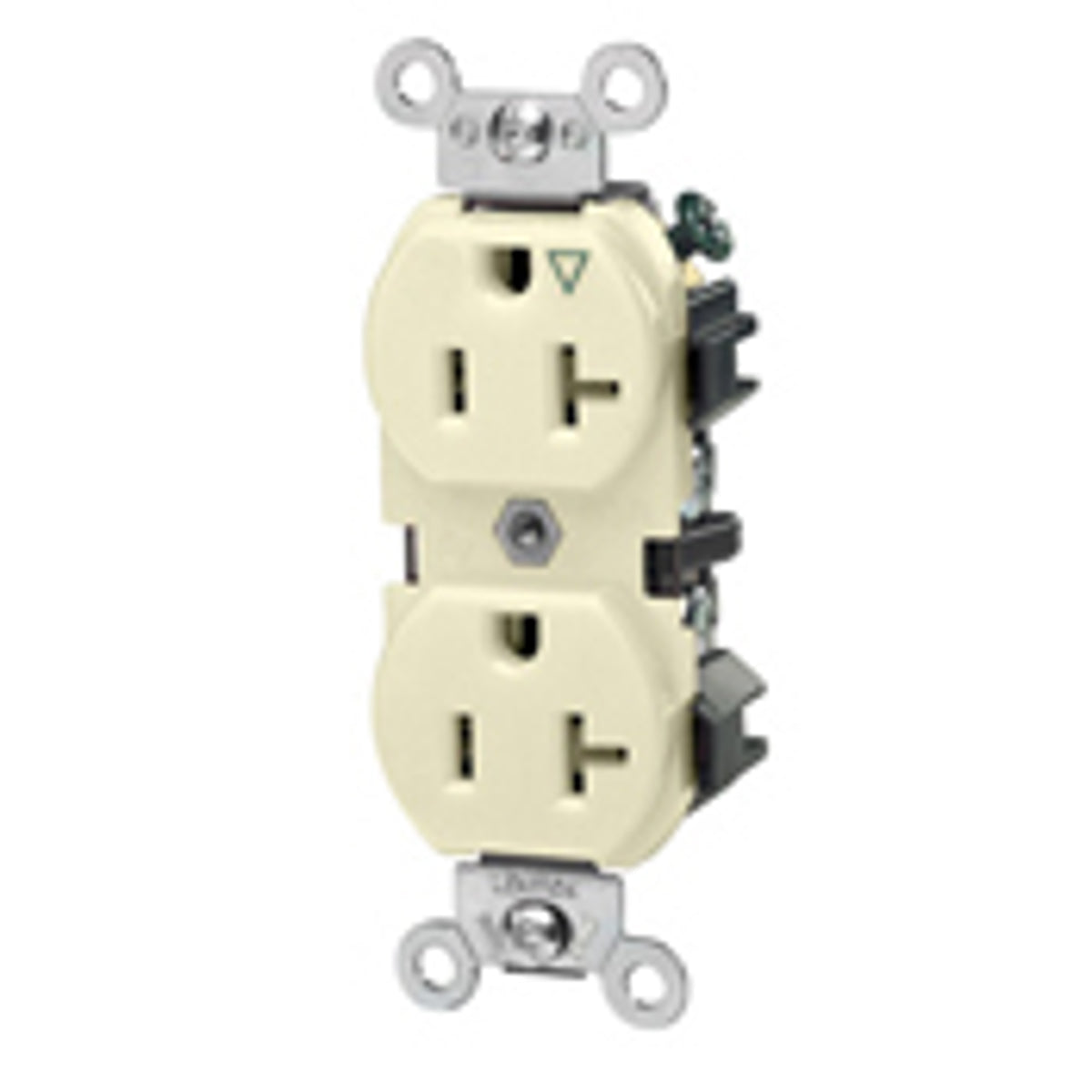

Leviton 5362-IGT 20-Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade Duplex Receptacle Straight Blade Isolated Ground

Product Description

The Leviton 5362-IGT is a 20-amp, 125-volt industrial series duplex receptacle designed for heavy-duty applications. This straight blade isolating ground receptacle is suitable for commercial use and offers robust performance in demanding environments.

• 20 amp rating and 125 volts ensure reliable operation.
• Made from thermoplastic for durability and impact resistance.

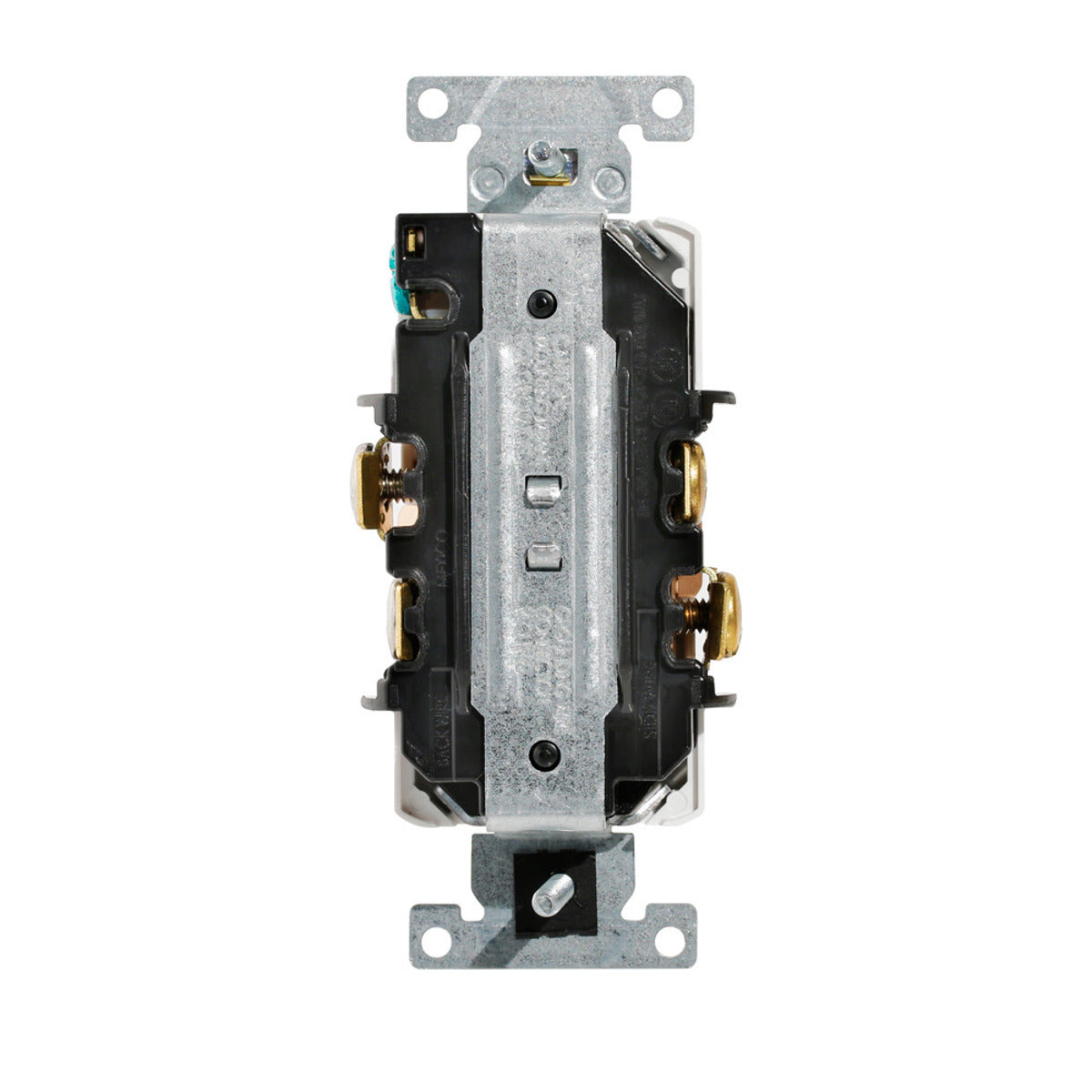

• Features back and side wiring for installation flexibility.

Product Highlights

Ideal for industrial applications, this receptacle is engineered with NEMA 5-20R configuration, offering superior contact and conductivity through its brass T contacts.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: 5362-IGT

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Temperature Rating: -40 to +60 Degrees Celsius
• Material: Thermoplastic
• Color: Light Almond
• Number of Outlets: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Dimensions: 4.06 inches High x 1.33 inches Wide x 1.12 inches Deep
• Connection Type: Back and Side Wired
• Standards Compliance: NEMA WD-1, WD-6; UL 498; CSA C22.2 No. 42
