Product Description

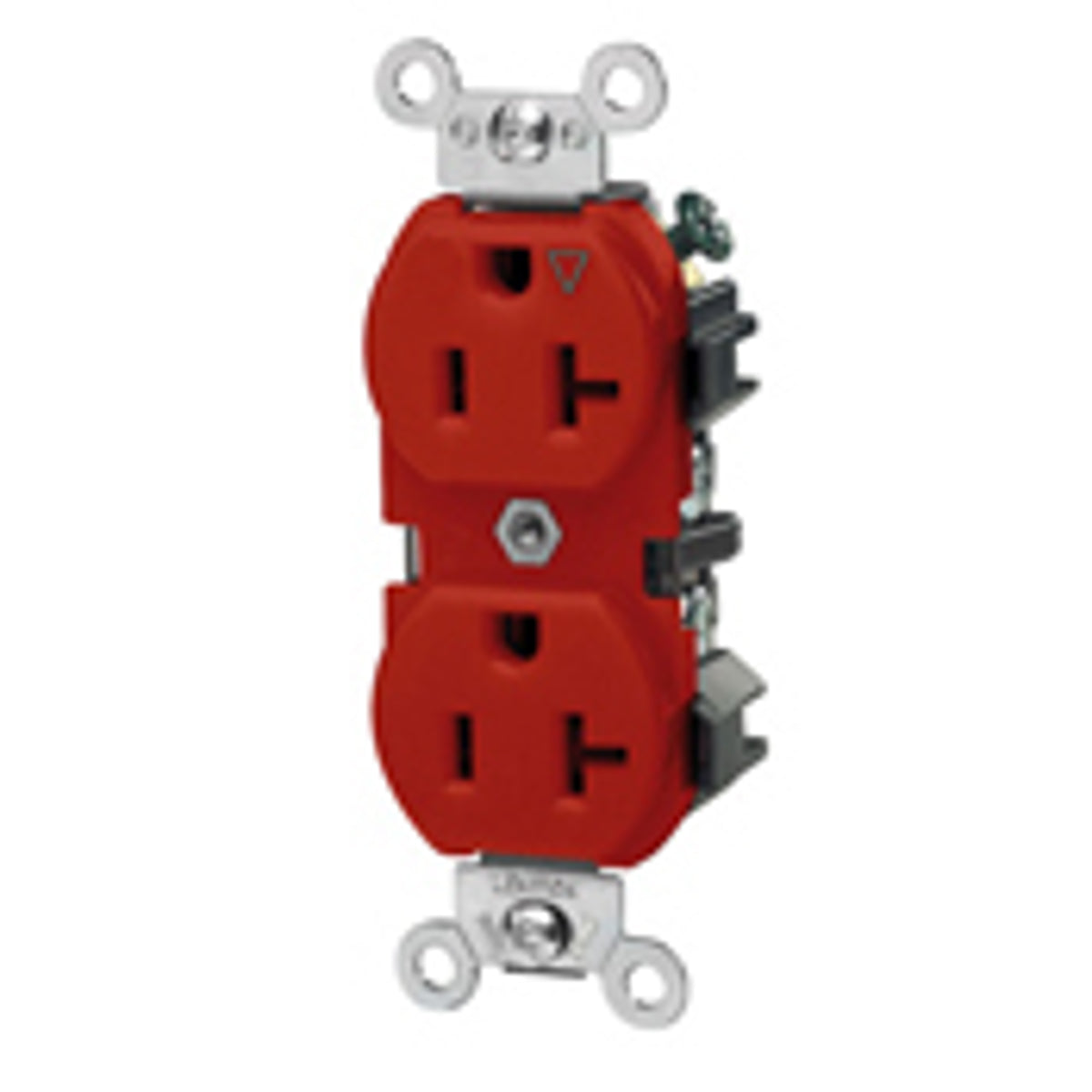

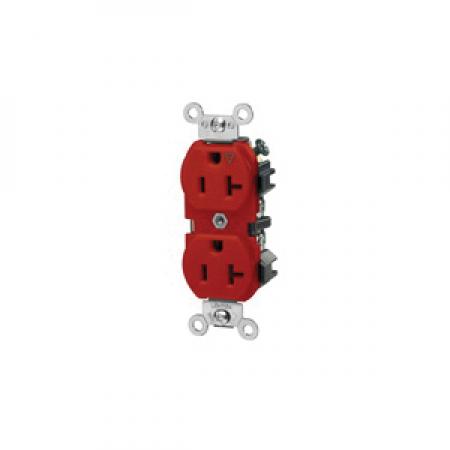

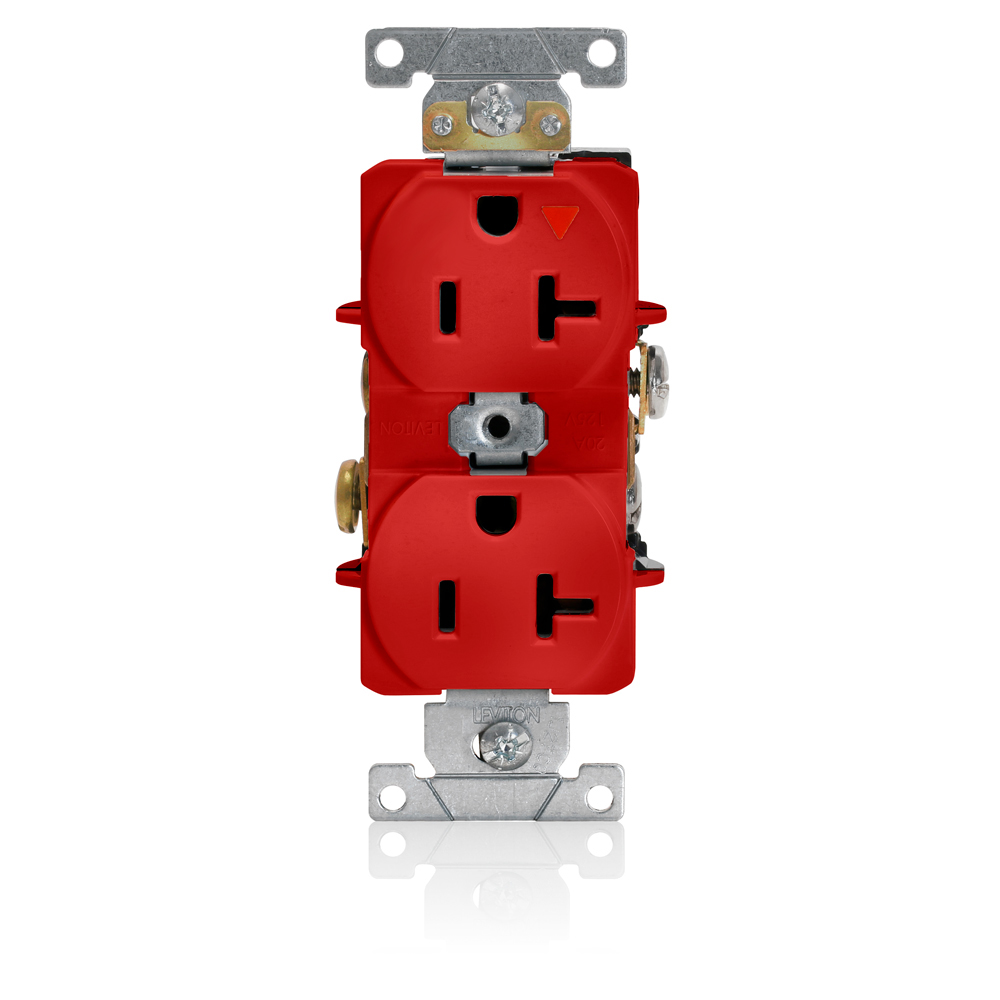

The Leviton 5362-IGR is a heavy-duty isolated ground duplex receptacle designed for industrial applications. This device operates at one hundred twenty-five volts with a current rating of twenty amps, making it suitable for demanding electrical requirements in various environments.
- Compatible with NEMA 5-20R configurations.
- Constructed from durable thermoplastic materials.
- Features isolated ground connections for enhanced safety.
Product Highlights
This receptacle is ideal for use in factories, schools, and hospitals where reliable performance under harsh conditions is essential.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 5362-IGR
Technical Specifications
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Horsepower Rating: 1 hp
-
NEMA Rating: 5-20R
-
Color: Red
-
Size: 46 inches H x 1.33 inches W x 1.12 inches D
-
Material: Thermoplastic
-
Environmental Conditions: Rated V-2 Per UL94
-
Temperature Rating: -40 to 60 degrees C
-
Country of Origin: Mexico
-

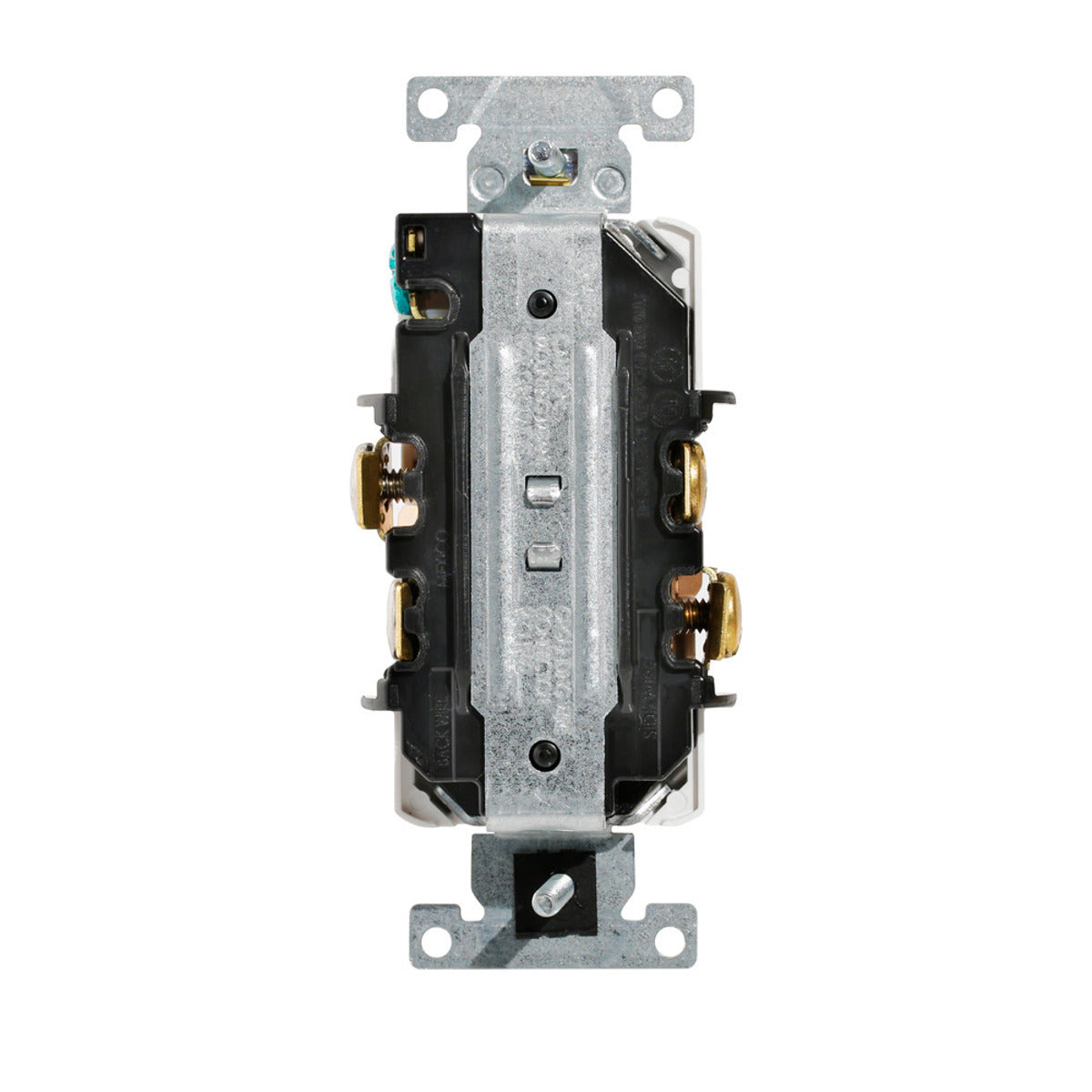

Connection Type: Back and side wired
-
Number of Poles: 2
-
Number of Wires: 3
-
Warranty Length: 10 years
