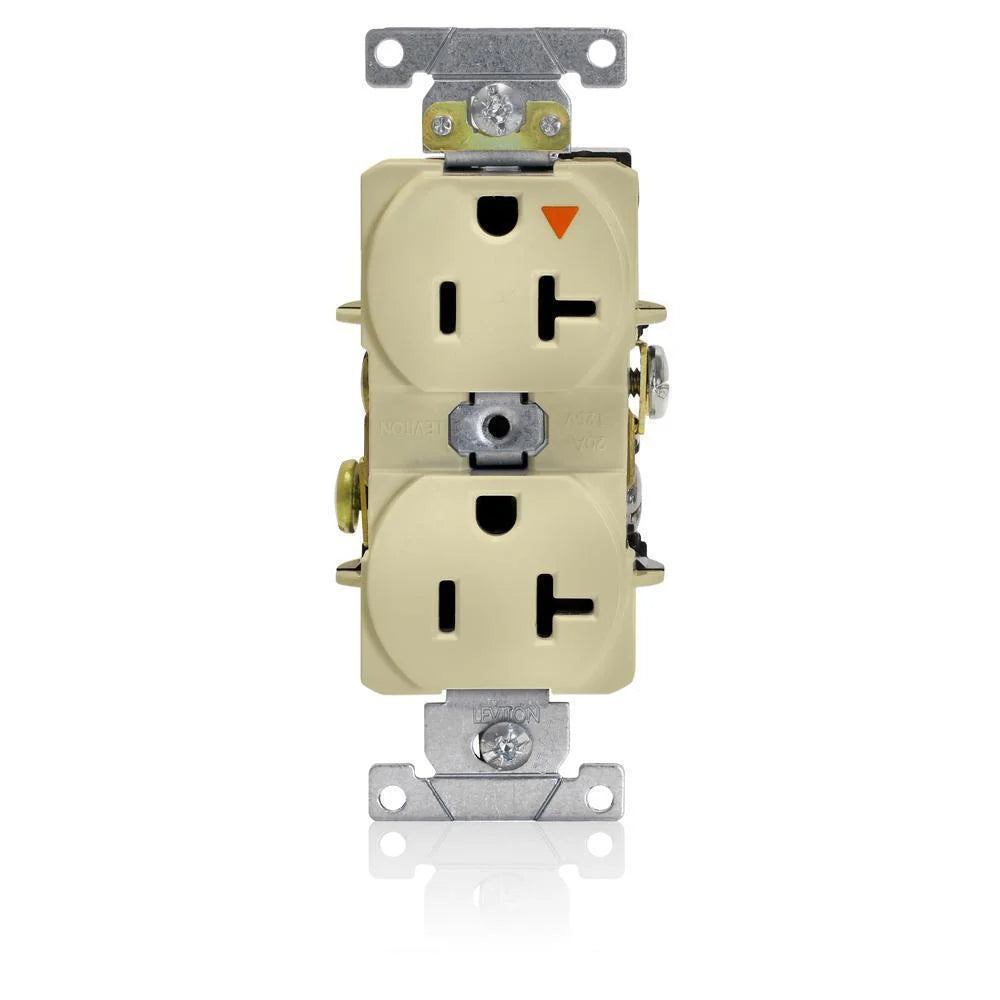

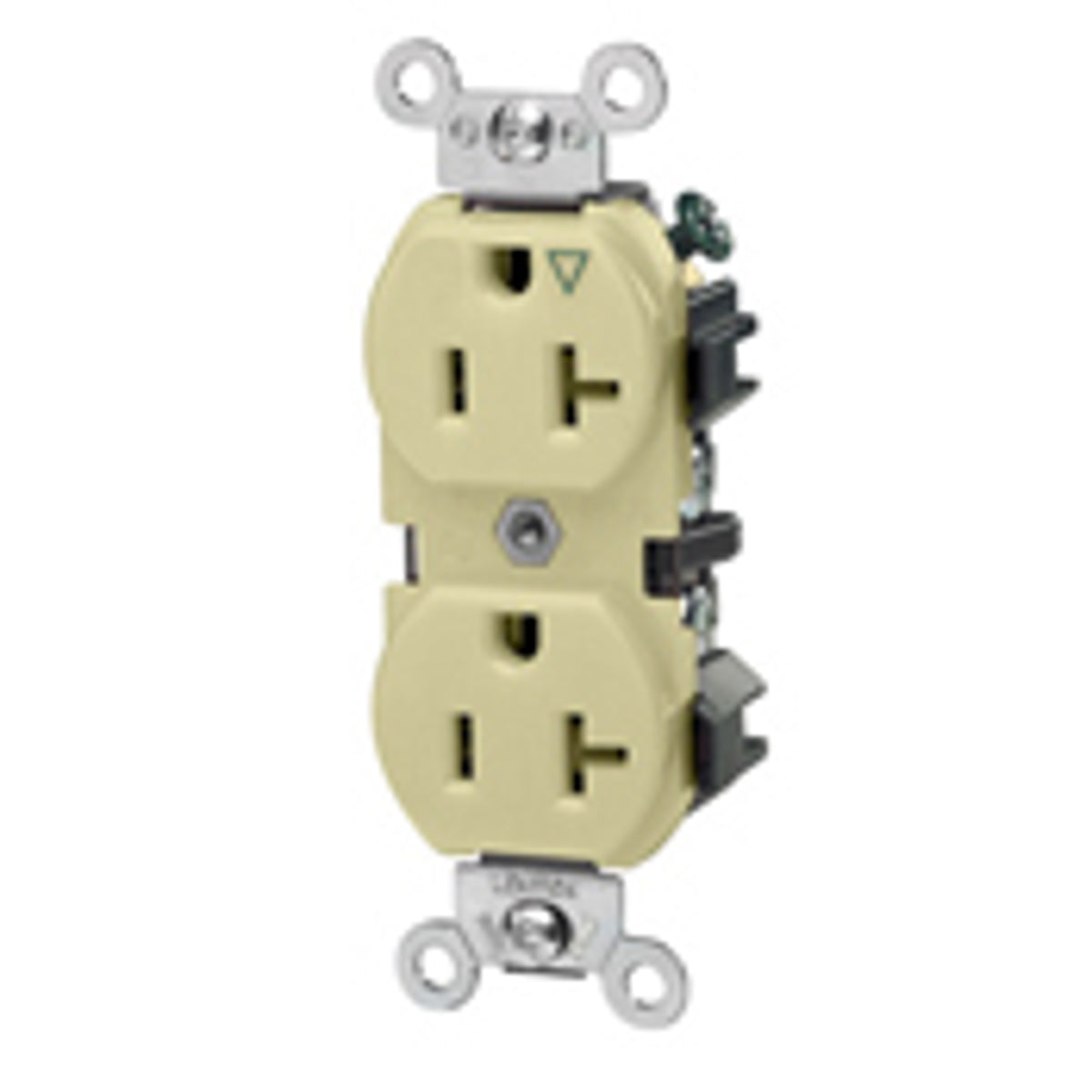

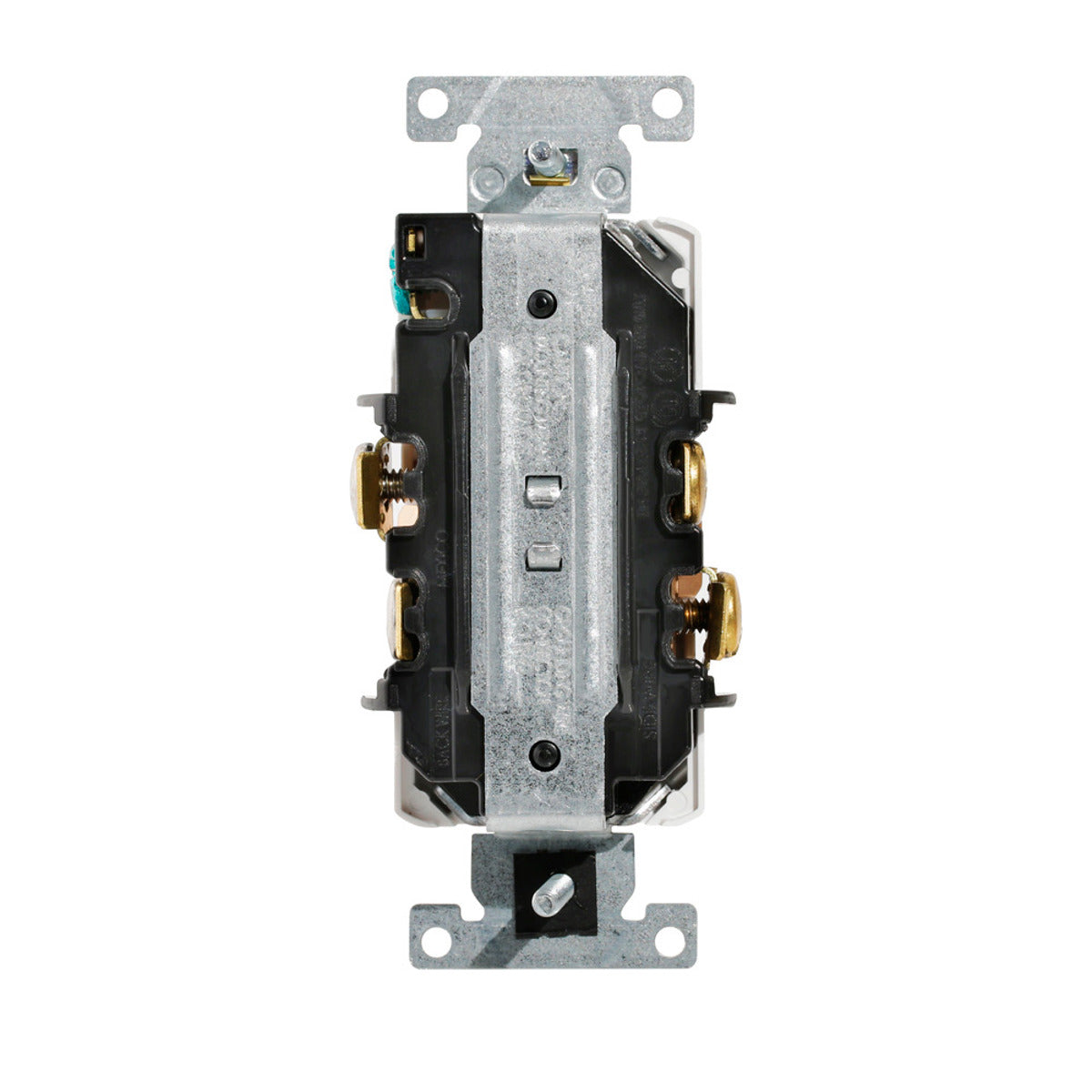

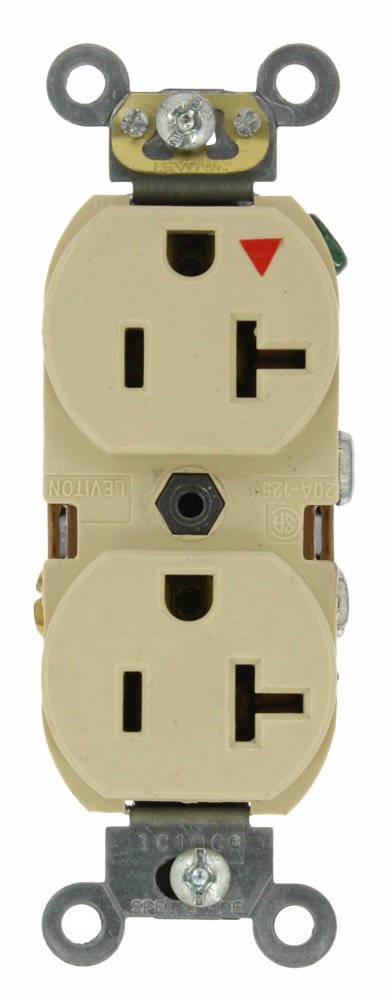

Leviton 5362-IGI Receptacle Dx Bl Str 125VAC 20A 1 hp

Product Description

The Leviton 5362-IGI is a heavy-duty isolated ground duplex receptacle. Rated at 125 VAC and 20 A with 1 hp, it features a NEMA 5-20R rating and NEMA WD-1/WD-6 enclosure. Designed for industrial environments, it has back and side wire terminals and a thermoplastic construction. It measures 4.06 in H x 1.33 in W x 1.12 in D.

• Impact-resistant thermoplastic nylon cover and body
• Isolated grounding
• 1-phase

Product Highlights

This heavy-duty receptacle is ideal for factories, schools, hospitals, and commercial buildings.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5362-IGI
• Country of Origin: Mexico

Technical Specifications

• Type: Heavy Duty Isolated Ground
• Grade: Industrial/Specification
• Material: Thermoplastic
• Enclosure: NEMA WD-1/WD-6
• Horsepower: 1 hp
• NEMA Rating: NEMA 5-20R
• Manufacturer: LEVITON
• Terminal Type: Back/Side Wire
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Application: Industrial
• Mounting: Wall
• Number of Outlets: 2
• Phase: 1
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
• Wire Size: 14-10 AWG
