Product Description

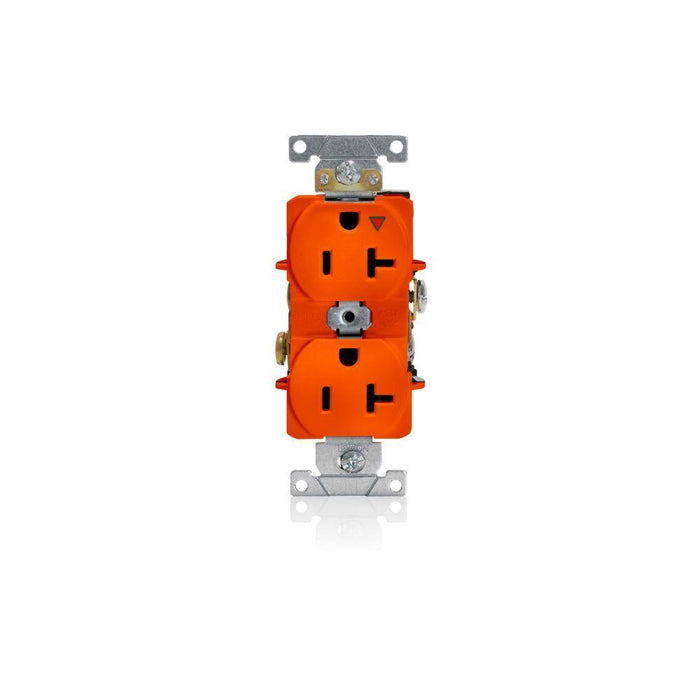

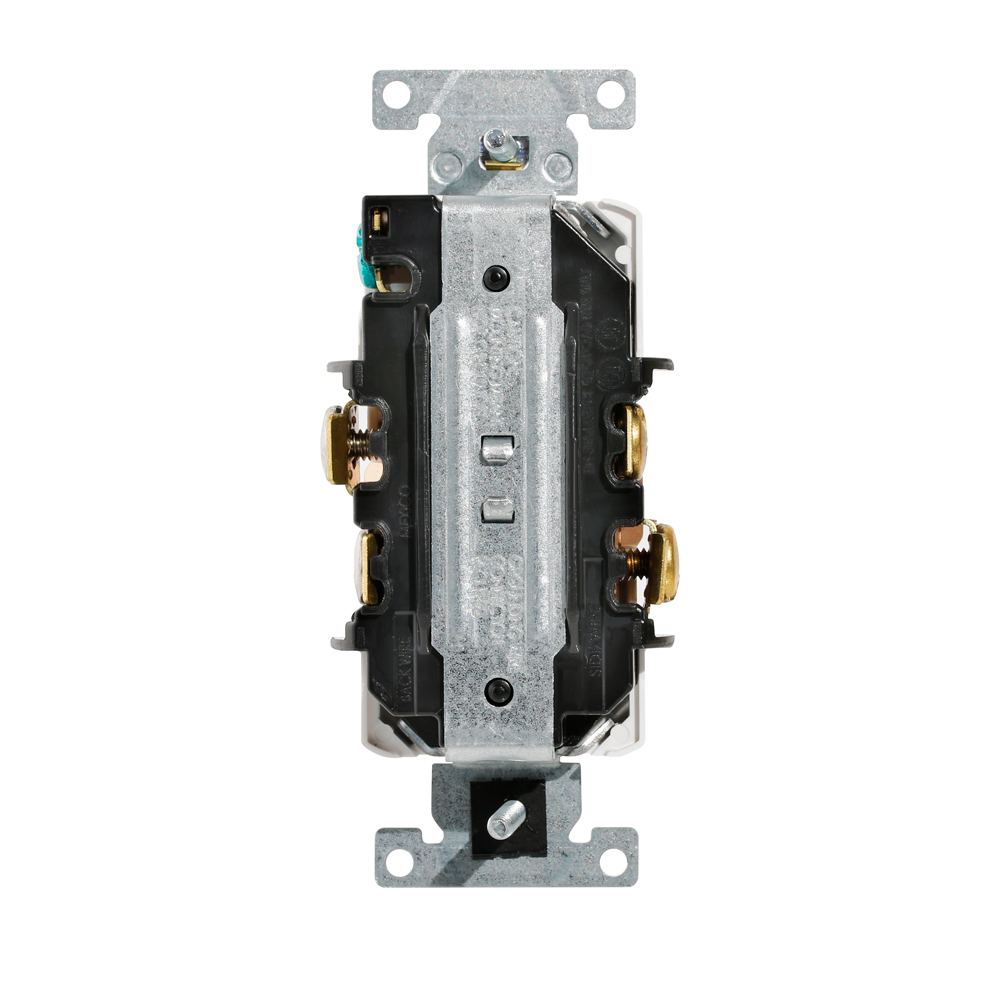

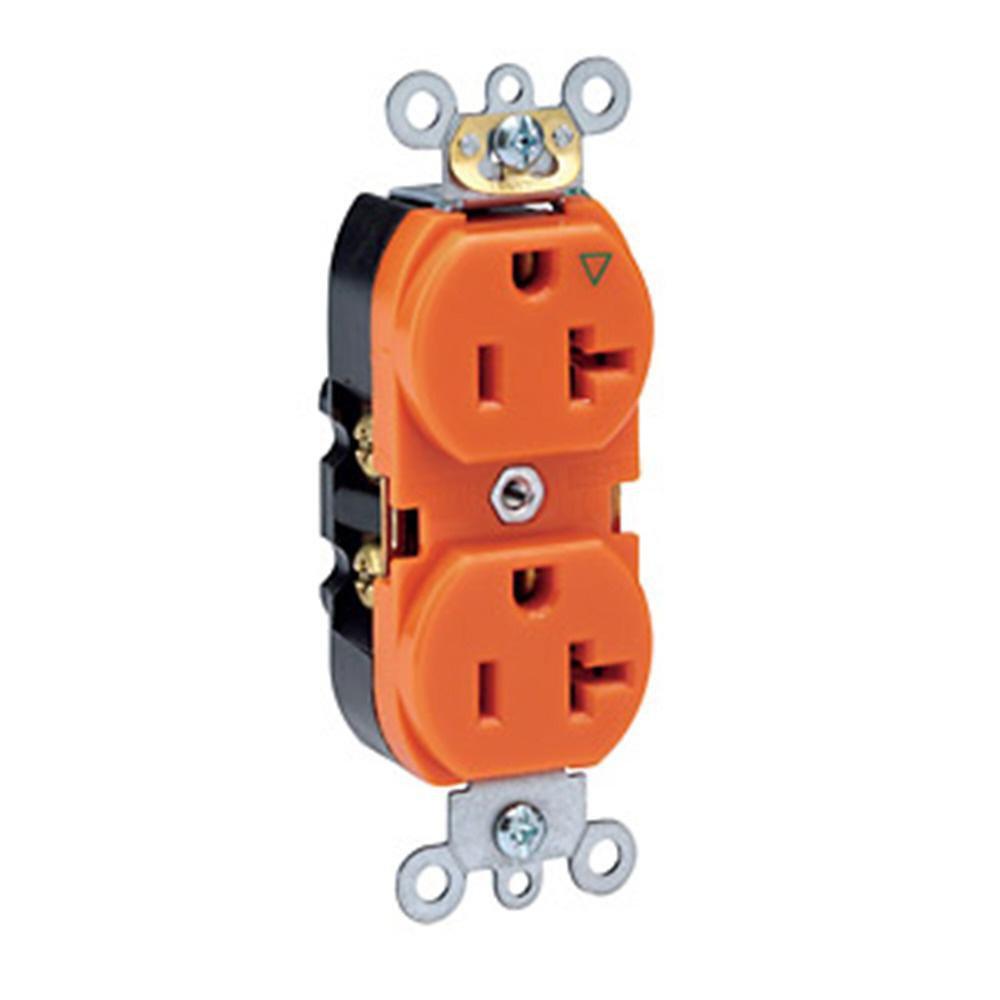

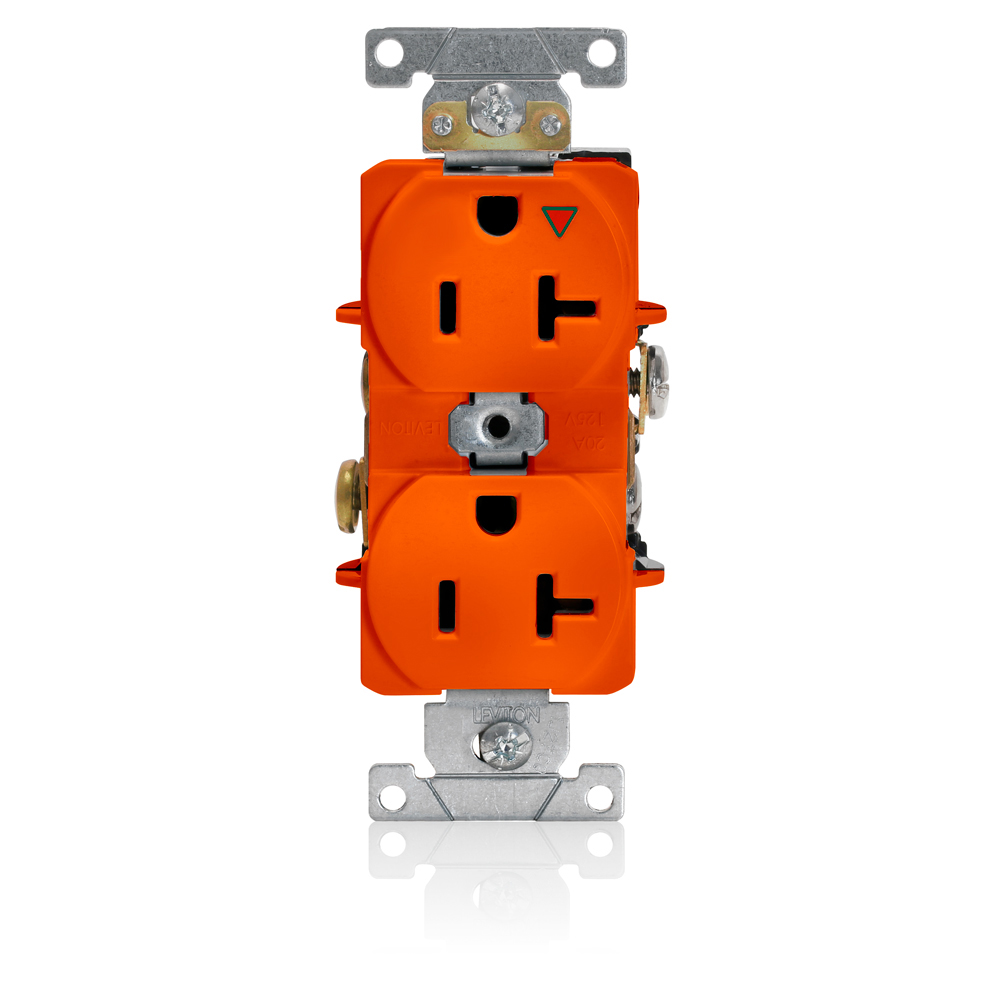

The Leviton 5362-IG is a 20-Amp, 125 Volt, Industrial Series Heavy Duty Specification Grade duplex receptacle with a straight blade and isolated ground. Designed to withstand demanding environments, this receptacle is ideal for factories, schools, hospitals, and commercial buildings.
- 20-Amp
- 125 Volt
- Isolated Ground
Product Highlights
This heavy-duty specification grade duplex receptacle ensures durability, safety, and reliability for industrial and commercial applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5362-IG
-
Country of Origin: MX
Technical Specifications
-
Color: Orange
-
Voltage: 125 Volts
-
Material: Nylon, Steel
-
Thickness: 1 Inches
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: 5362-IG
-
Total Power Outlets: 2
-
Approval: UL 498, CSA C22.2, NOM 057
-
Configuration: 5-20R
-
Constructional Feature: Impact Resistant
-
Grade: Extra Heavy-Duty Industrial
-
Ground Type: Isolated Grounding
-
Manufacturer Name: Leviton
-
Number Of Poles: 2 Pole
-
Number Of Wires: 3
-
PDW ID: ECL157406
-
Product UPC: 07847705245
-
Type: Duplex
-
Wiring: Back, Side
-
Amperage: 20-Amp
-
Series: Industrial Series Heavy Duty Specification Grade
-
Receptacle Type: Duplex Receptacle
-
Blade Type: Straight Blade
-
Grounding: Isolated Ground
-
Amperage Rating: 20 A
-
Dimensions: 4.06 in H x 1.33 in W x 1.12 in D
-
Enclosure: NEMA WD-1/WD-6
-
Horsepower: 1 hp
-
Thermoplastic: Material
-
NEMA Rating: NEMA 5-20R
-
Standards/Approvals: ANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL 94 Flammability Rating
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 125 VAC
-
Country of Origin: MX
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back and Side Wire
-
Torque Range: 14-16 in-lbs
-
Device Type: Duplex Receptacle Outlet
-
Feature: Smooth Face
-
Function: Isolated Ground
-
ANSI: C-73
-
CSA C22.2 No. 42: File 152105
-
NOM: 057
-
UL Fed Spec WC-596: File E13399
-
UL498: File E13399
-
RoHS Compliant: Yes
-
Wire: 3
-
Pole: 2
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Operating Temperature: -40°C to 60°C
-
Body Material: Thermoplastic Nylon
-
Clamp Nuts: Galvanized Steel
-
Face Material: Thermoplastic Nylon
-
Grounding Screw: Brass 8-32
-
Isolated Ground System: Brass
-
Line Contacts: Phosphor Bronze
-
Strap Material: Galvanized Steel
-
Terminal Screws: Plated Brass
-
Product ID: Ratings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 14-10 AWG
-
Flammability: Rated V-2 per UL 94
-
Mounting: Wallbox
-
Standard: ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
-
Wire Size: 14-10
-
Connection: Back and Side Wired
-
Application: Industrial
-
NEMA: 5-20R
-
Stripped Catalog Number: 5362IG
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Buy American Act (BAA) Compliant: C
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Manufacturer Item Status: Active
-
UPC: 078477052457
-
GTIN: 00078477052457
-
Alternative Part Number: 7332216
-
UNSPSC Code: 39121400
-
Power Plug Type: Type A - 2 pin (North American)
-
Connector Type: Plug In
-
Item Dimensions L x W: 2.56"L x 1.38"W
-
Model: 5362-IG
