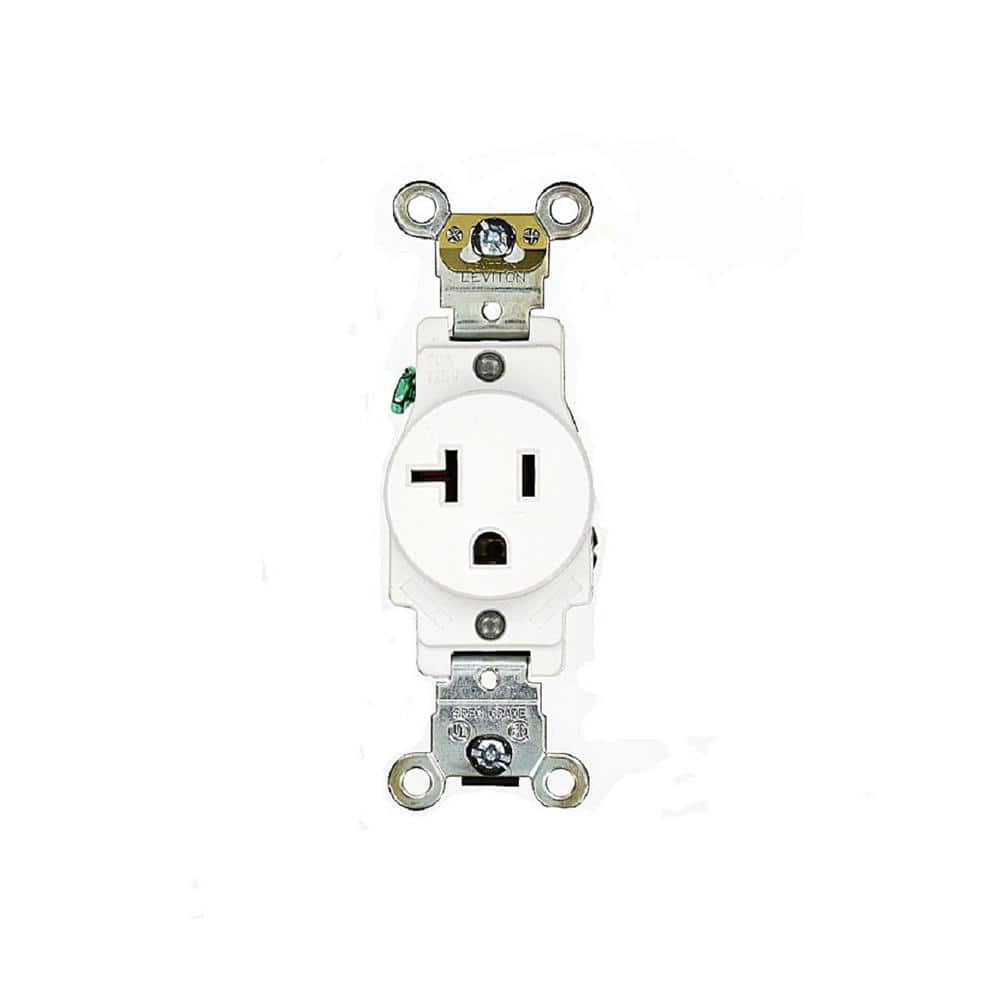

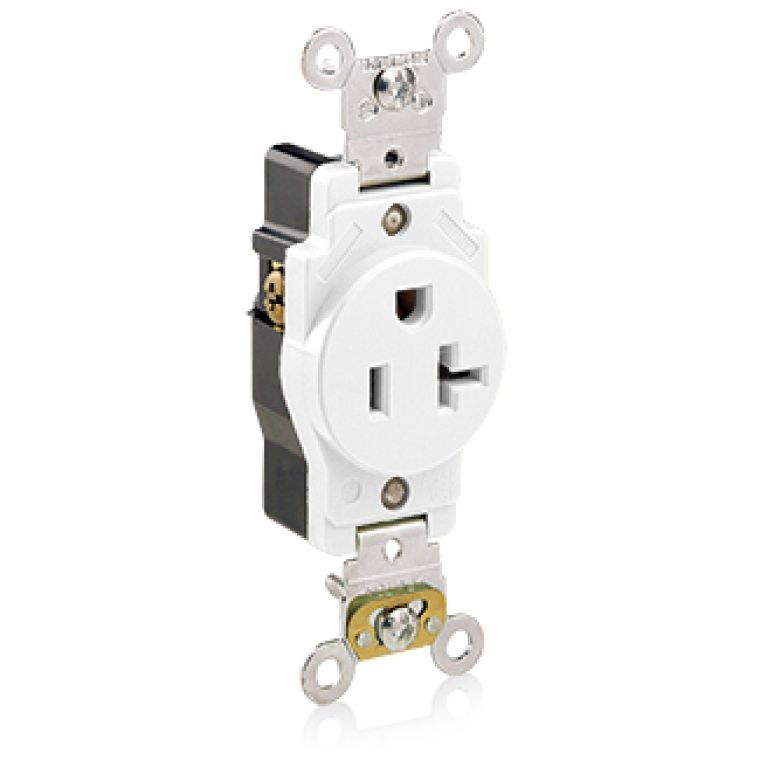

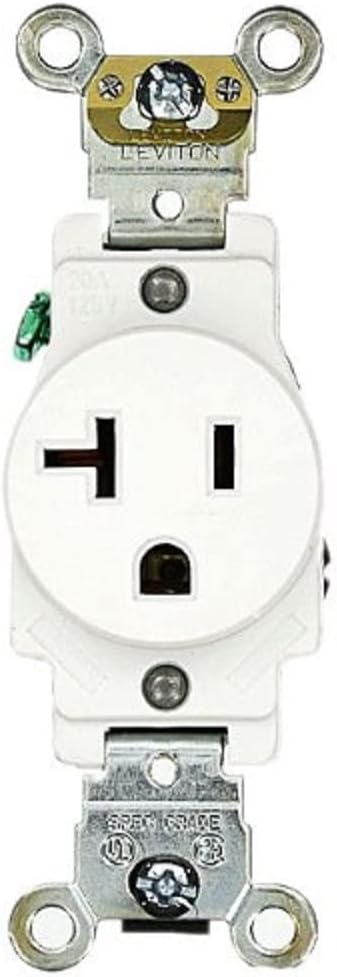

Leviton 5361-W Single Receptacle Straight Blade 20 Amp 125 Volt (Single) RR201W

Product Description

Leviton 5361-W is a 20 Amp, 125 Volt industrial heavy-duty single receptacle with a straight blade configuration and self-grounding design. The device features a thermoplastic nylon body with a steel strap, accepts 14-10 AWG conductors, and supports back and side wire termination. It meets NEMA 5-20R and multiple safety standards, offers brass triple-wipe line contacts, and is rated for -40 to 60 degrees C operating temperature.

• 20 Amp, 125 Volt rating; NEMA 5-20R, 2-pole 3-wire configuration with self-grounding
• Back and side wired termination; accepts 14-10 AWG; brass triple-wipe line contacts
• Thermoplastic nylon body with steel strap; dielectric withstand 2000 V; operating temperature -40 to 60 degrees C

Product Highlights

Industrial heavy-duty 20A 125V straight blade receptacle, NEMA 5-20R, self-grounding, back and side wired for commercial and industrial installations

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5361-W
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Brand: Leviton
• MPN: 5361-W
• Voltage Rating: 125 V
• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Poles: 2
• Wires: 3
• Wiring Type: Back and side wired
• Grounding: Self-grounding
• Body Material: Thermoplastic nylon
• Face Material: Thermoplastic nylon
• Strap Material: Steel
• Wire Size: 14-10 AWG
• Line Contacts: Brass triple-wipe
• Dielectric Withstand Voltage: 2000 V
• Operating Temperature: -40 to 60 degrees C
• Flammability Rating: V-2 per UL 94
• Horsepower Rating: 1 HP
• AC Horsepower: 1 hp
• Terminal Screw Torque: 14 to 18 in-lbs
• Mounting Type: Wall box, flush, screw
• Dimensions: 2 x 1.75 x 4 inches
• Weight: 0.1 lb (1.6 ounces)
• Certifications and Standards: ANSI C-73; CSA C22.2 No. 42; NEMA WD 1 and WD 6; NOM 057; UL Fed Spec WC-596; UL 498
• Device Type: Single receptacle straight blade
• Application: Commercial and industrial
