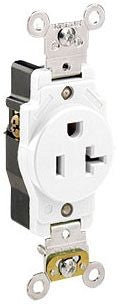

Leviton 5361-W Heavy Duty Single Receptacle 125 Volt 20 Amp NEMA 5-20R

Product Description

The Leviton 5361-W is a heavy-duty single receptacle designed for 125 volts and a 20 amp rating. This receptacle is ideal for industrial and commercial applications. It features a NEMA 5-20R configuration and a self-grounding system for added safety.

• Body Material: Thermoplastic Nylon
• Grounding: Self Grounding
• Back and Side Wiring Options

Product Highlights

This receptacle is built to withstand harsh environments and demanding conditions. With a robust design, it features triple-wipe brass contacts for reliable connectivity. The receptacle is suitable for both back and side wiring, providing flexibility in installation.

Product Information

Standard Information

• Voltage Rating: 125 Volt
• Amperage Rating: 20 Amp
• NEMA Configuration: 5-20R
• Material: Thermoplastic Nylon
• Certification: UL Listed, CSA/NOM Certified

Technical Specifications

• Dimensions: 46 inches H x 1.31 inches W x 16 inches D
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 degrees C
• Environmental Conditions: Rated V-2 Per UL 94
