Product Description

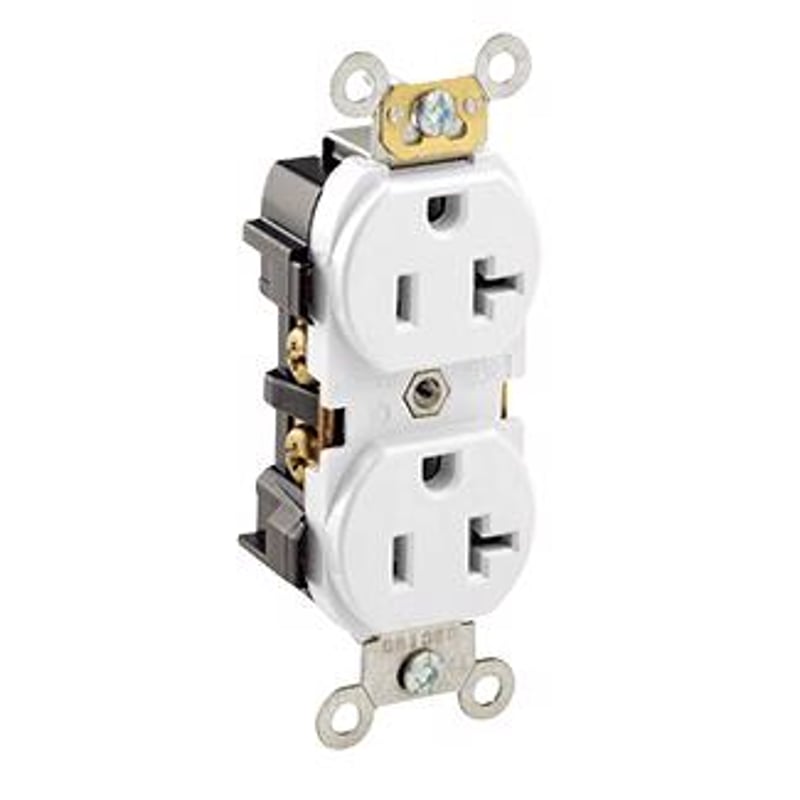

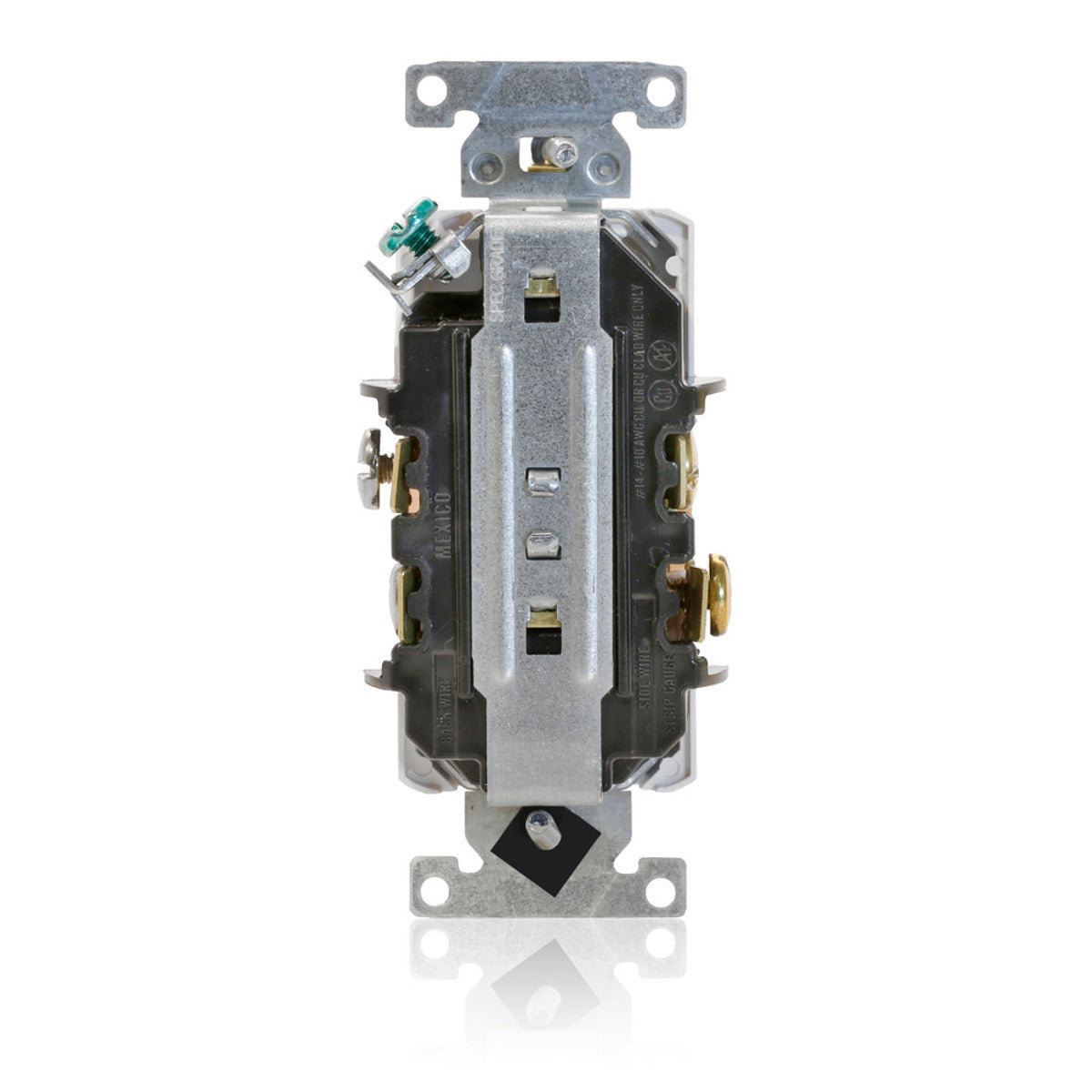

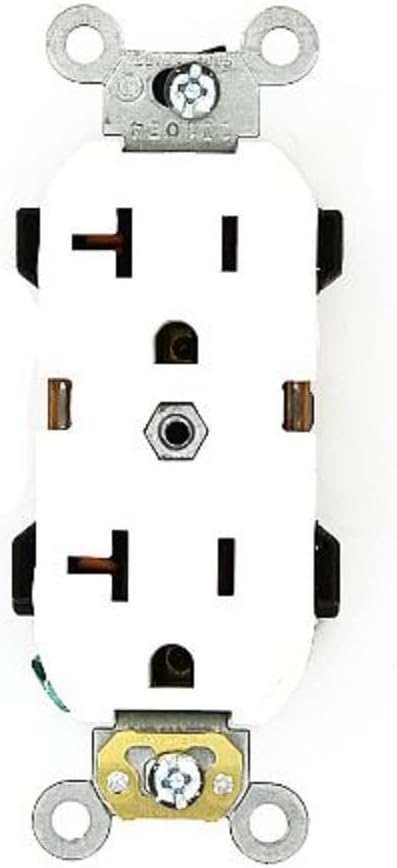

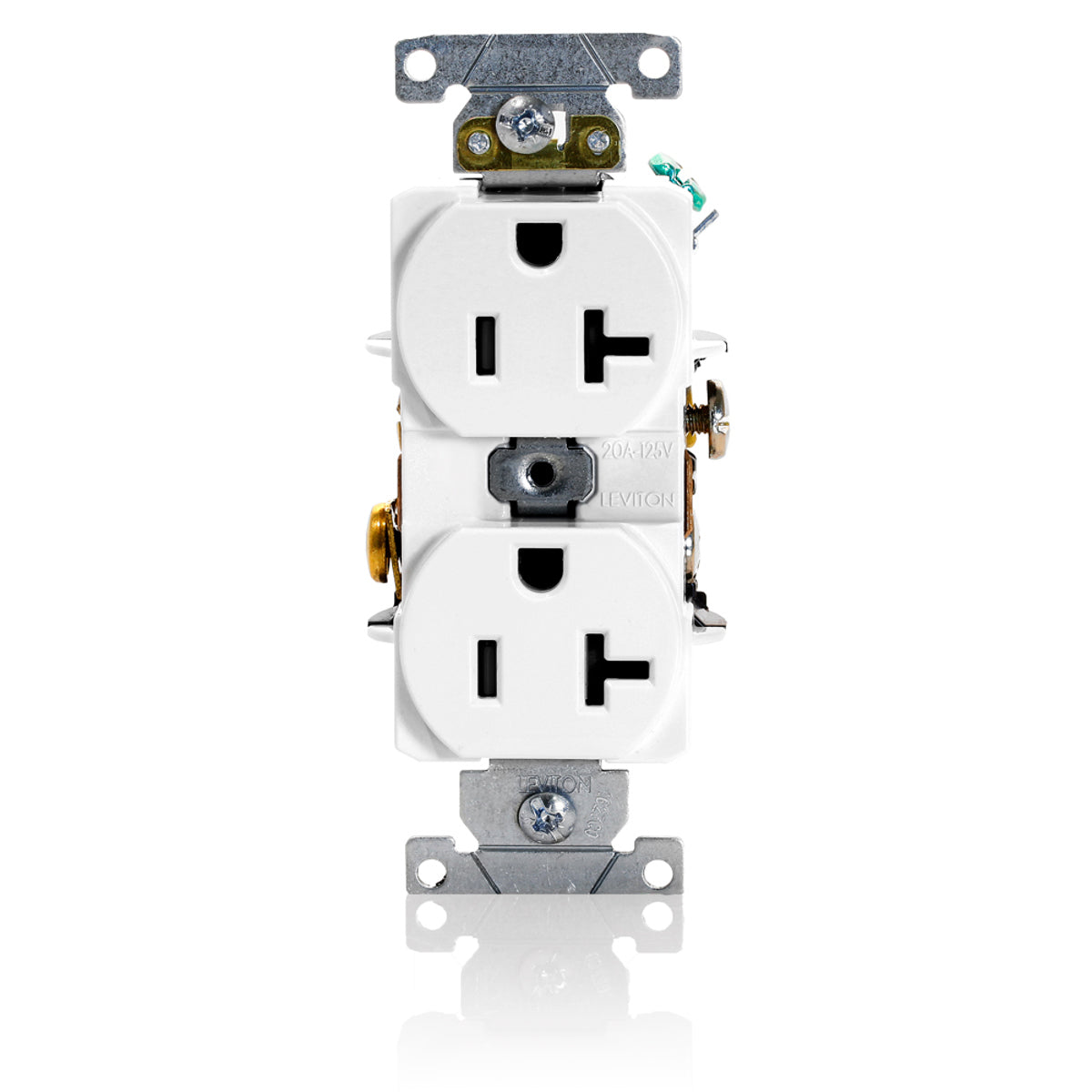

The Leviton 5352-W is a 20-Amp, 125 Volt, industrial heavy-duty grade duplex receptacle. Designed to withstand harsh conditions, this straight blade, self-grounding receptacle is ideal for factories, schools, and commercial buildings. It ensures durability, safety, and reliability for various applications.
- Industrial Heavy Duty Grade
- Duplex Receptacle
- Straight Blade
- Self Grounding
Product Highlights
This heavy-duty receptacle provides a safe and reliable power connection in demanding industrial and commercial environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5352-W
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 125 Volts
-
Material: Thermoplastic Nylon
-
Certification: CSA, UL, ETL
-
Total Power Outlets: 2
-
Type: Duplex
-
Grade: Heavy-Duty Industrial Specification Grade
-
Approvals: UL 498, CSA C22.2, NOM 057
-
Voltage Rating: 125 V
-
Current Rating: 20 Ampere
-
Grounding: Self Grounding
-
Poles: 2
-
Amperage Rating: 20A
-
Application: Commercial Applications
-
Enclosure: NEMA WD-1/WD-6
-
Horsepower: 1 hp
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: ANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM Certified|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL94 Flammability Rating
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Back/Side Wire
-
Manufacturer: LEVITON
-
RoHS Compliant: True
-
Amperage: 20 A
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 3000V min
-
Pole: 2
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wire: 3
-
Product ID: Ratings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
-
Termination: Back or Side Wire
-
Body Material: PBT Polyester Blend,PBT Polyester Blend
-
Clamp Nuts: Steel (Galvanized G60)
-
Face Material: PBT Polyester Blend,PBT Polyester Blend
-
Ground Clips: Brass
-
Grounding Screw: #8 Hex Head, Triple-Drive Brass
-
Line Contacts: 0.030" Phosphor Bronze
-
Terminal Screws: #8 Triple-Drive Brass
-
Yoke: Zinc-Plated Steel
-
Flammability: Rated V-2 per UL 94
-
Operating Temperature: -40
C to 75
C
-
Phase: 1 Phase
-
Wire Size: 14-10
-
Connection: Back and Side Wired
-
Dielectric Strength: 2000 (Min.)
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Rated Voltage: 125V
-
AWG Range: 14 - 10 AWG
-
NEMA Configuration: 5-20R
-
No. of Wires: 3
-
Color Family: White
-
No. of Poles: 2
-
ECCN: EAR99
-
Standard: NEMA WD-6
-
Mounting Type: Surface
-
AC Horsepower Ratings At Rated Voltage: 1 HP
-
Strap Material: Galvanized Steel with Riveted Ground Contacts
-
Torque Range: 14-16 in-lbs
-
Device Type: Duplex Receptacle Outlet
-
Feature 4: Smooth Face
-
Standards and Certifications: UL/CSA
-
ANSI: C-73
-
CSA C22.2 No. 42: File 152105
-
NOM: 057
-
UL Fed Spec WC-596: File E13399
-
UL498: File E13399
-
Stripped Catalog Number: 5352W
-
Catalog Description (MFR): 20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, White
-
Invoice Description (MFR): WH REC DUP TSLOT 2PO 3WI 20A125V
-
Safety Data Sheet (SDS) Flag: Y
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: WH REC DUP TSLOT 2PO 3WI 20A125V
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Meta Tag: Electric outlet, electric socket, electric plug, power outlet, lamp socket
-
Market Class: D78
-
Wiring Style: Back & Side
-
Poles & Wires: 2 Pole, 3 Wire Grounding
-
Made in the USA: Yes
-
NEMA: 5-20R
-
Manufacturers Part Number: 5352-W
