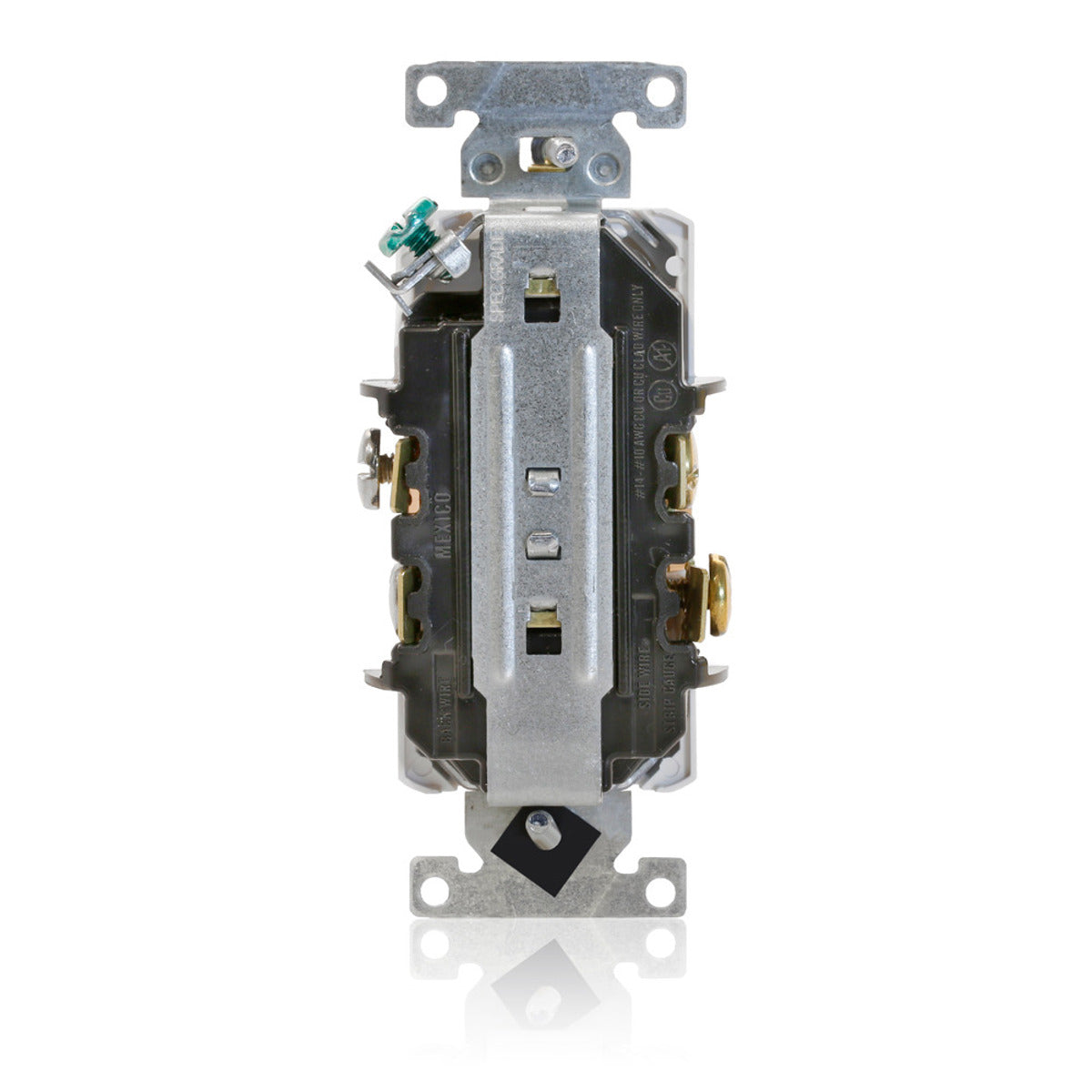

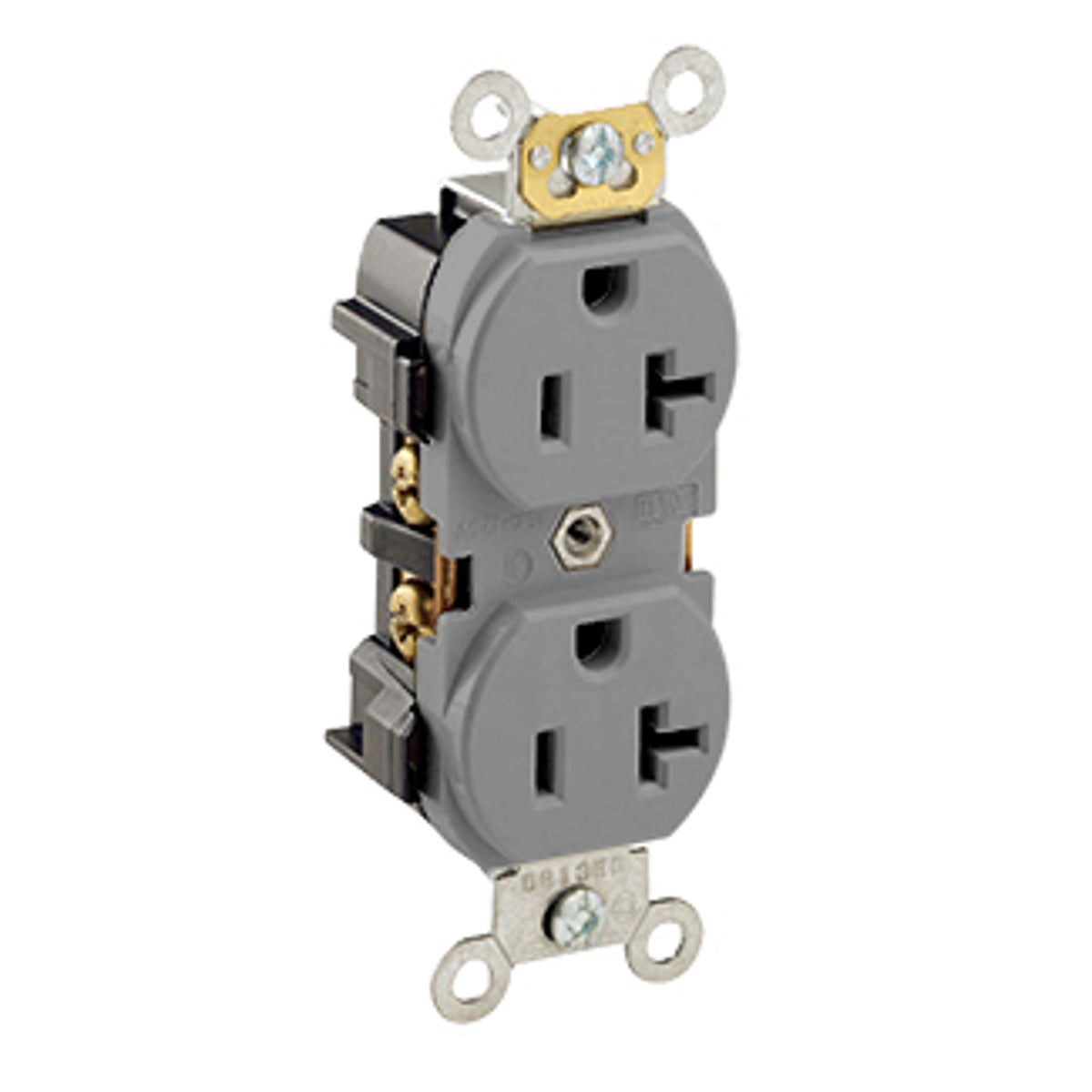

Leviton 5352-GY Duplex Receptacle 20-Amp, 125 Volt, Industrial Heavy Duty Grade

Product Description

The Leviton 5352-GY is a 20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle with Straight Blade and Self Grounding. Constructed with a thermoplastic, nylon, and brass material. This receptacle is suitable for commercial applications. It is designed to withstand harsh conditions typically associated with industrial environments.

• Industrial Heavy Duty Grade
• Duplex Receptacle
• Straight Blade

Product Highlights

The Leviton 5352-GY is ideal for factories, schools, hospitals and commercial office buildings. It features back and side wiring options and a temperature rating of -40 to +60 degrees Celsius.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5352-GY
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 Volts
• Material: Thermoplastic Nylon
• Certification: CSA, UL, NEMA
• Batteries Required?: No
• Included Components: 5352-GY
• Type: Straight Blade;Duplex Outlet
• Phase: 1
• Mounting: Wall Box
• Standard: NEMA (WD-1; WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105)
• Wire Size: 14-10
• Connection: Back and Side Wired
• Application: Commercial
• NEMA Rating: 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to +60 DEG C
• Dielectric Strength: 2000 (Min.)
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Width: 1.55 in
• Depth: 1.12 in
• Grade: Industrial
• Horsepower: 1 hp
• Enclosure: NEMA WD-1/WD-6
• Terminal Type: Back/Side Wire
• Rated Voltage: 125V
• AWG Range: 14 - 10 AWG
