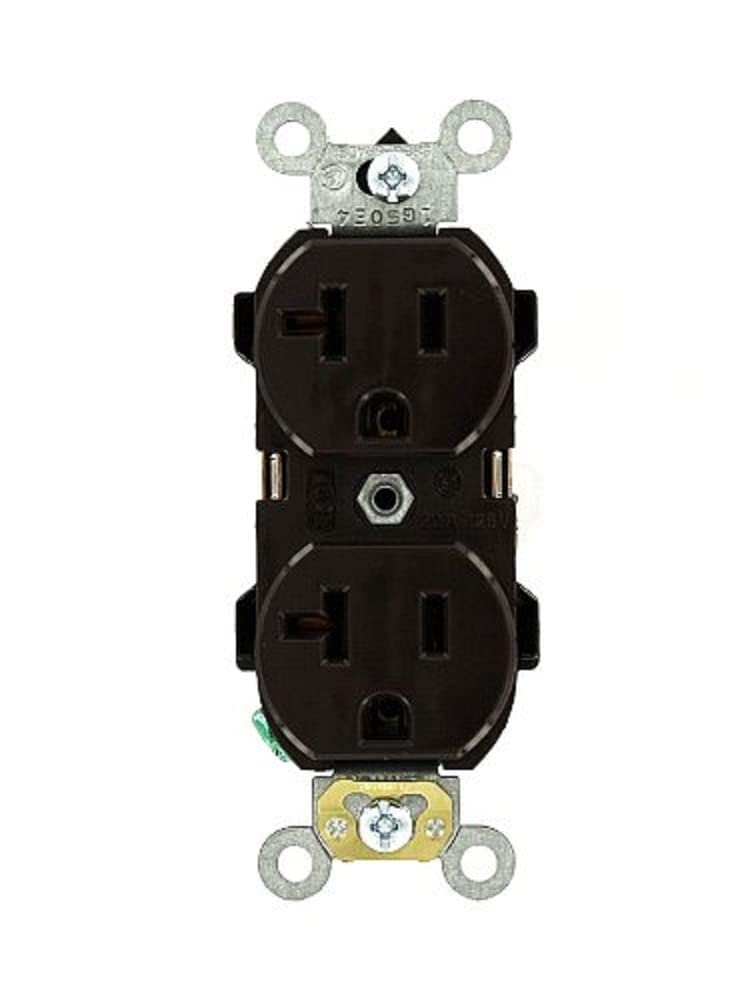

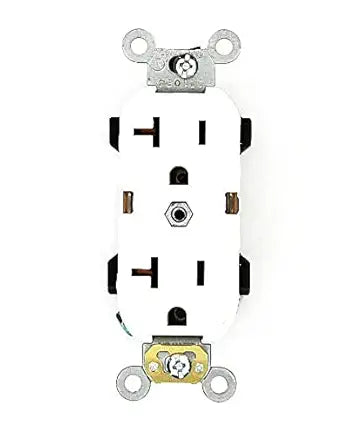

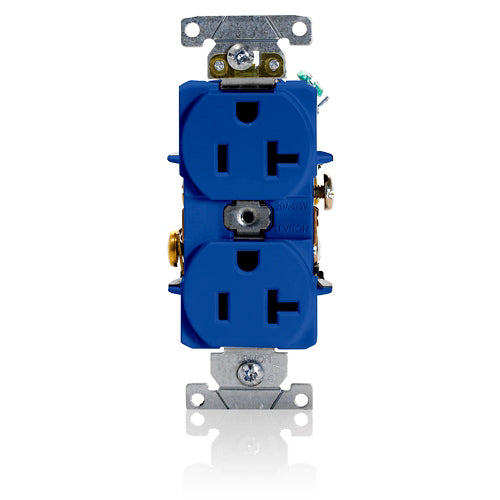

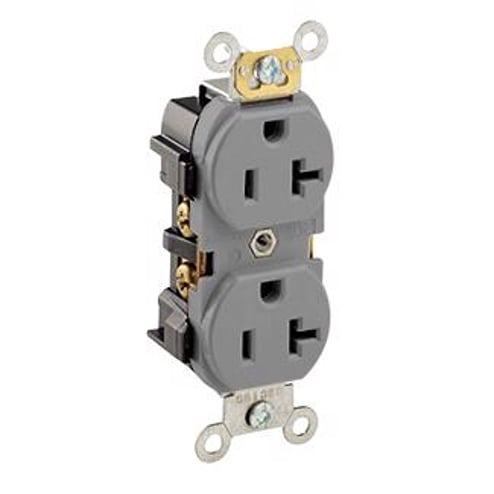

Leviton 5352 Duplex Receptacle Nema 5-20R 20A 125V Industrial

Product Description

The LEVITON 5352 is a straight blade duplex receptacle rated at 20 amps and 125 volts AC, configured to NEMA 5-20R. It is an industrial-grade outlet built for flush-mount installation in commercial and industrial wiring applications. The body is molded from impact-resistant thermoplastic and uses a self-grounding design that eliminates the need for a separate grounding clip during installation. The 5352 supports both back-wiring and side-wiring, giving electricians flexibility when terminating in tight boxes. This is a single-phase, 2-pole, 3-wire device sold individually.

The LEVITON 5352 is suited for commercial offices, industrial facilities, workshops, and any application requiring a 20-amp circuit outlet. Its industrial grade rating makes it appropriate for settings with higher cycle counts or mechanical abuse than a residential receptacle would tolerate. The flush-mount profile fits standard single-gang or duplex-gang boxes. Brown color is common in commercial and industrial environments where color coding by circuit type is standard practice.

Key Features

• NEMA 5-20R configuration rated for 20-amp, 125-volt AC circuits
• Industrial grade construction for higher-cycle commercial and industrial use
• Self-grounding design simplifies installation in metal boxes
• Back and side wiring options accommodate different installation methods
• Impact-resistant thermoplastic body resists physical damage in demanding environments
• Meets UL 498, CSA C22.2 No. 42, ANSI C-73, NEMA WD-6, and NOM 057 standards

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard 20-amp branch circuits wired to NEMA 5-20R outlets in commercial and industrial settings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before making any wiring connections. The self-grounding feature is only effective when installed in a properly grounded metal box; verify box grounding continuity before relying on it. Torque all screw terminals to the values specified on the device or in the manufacturer documentation.
