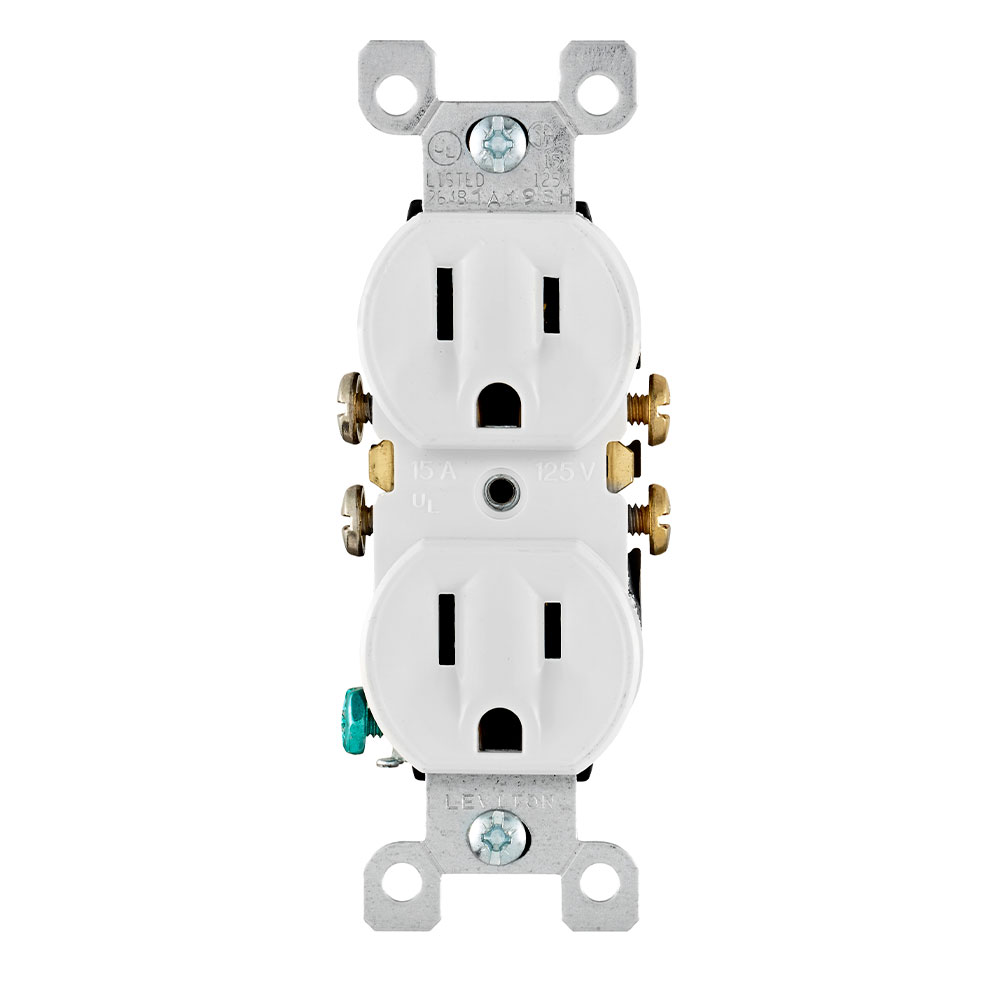

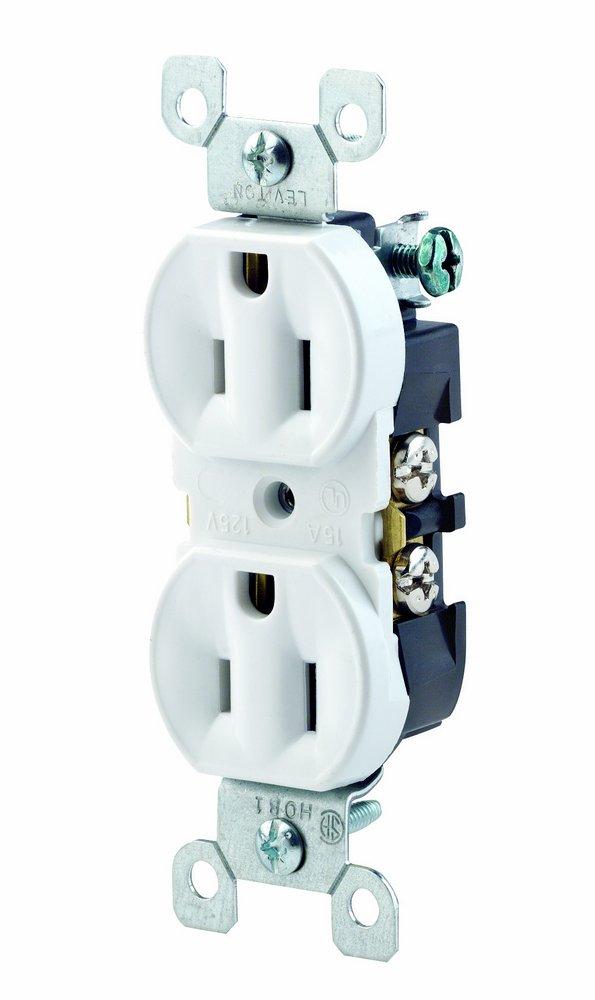

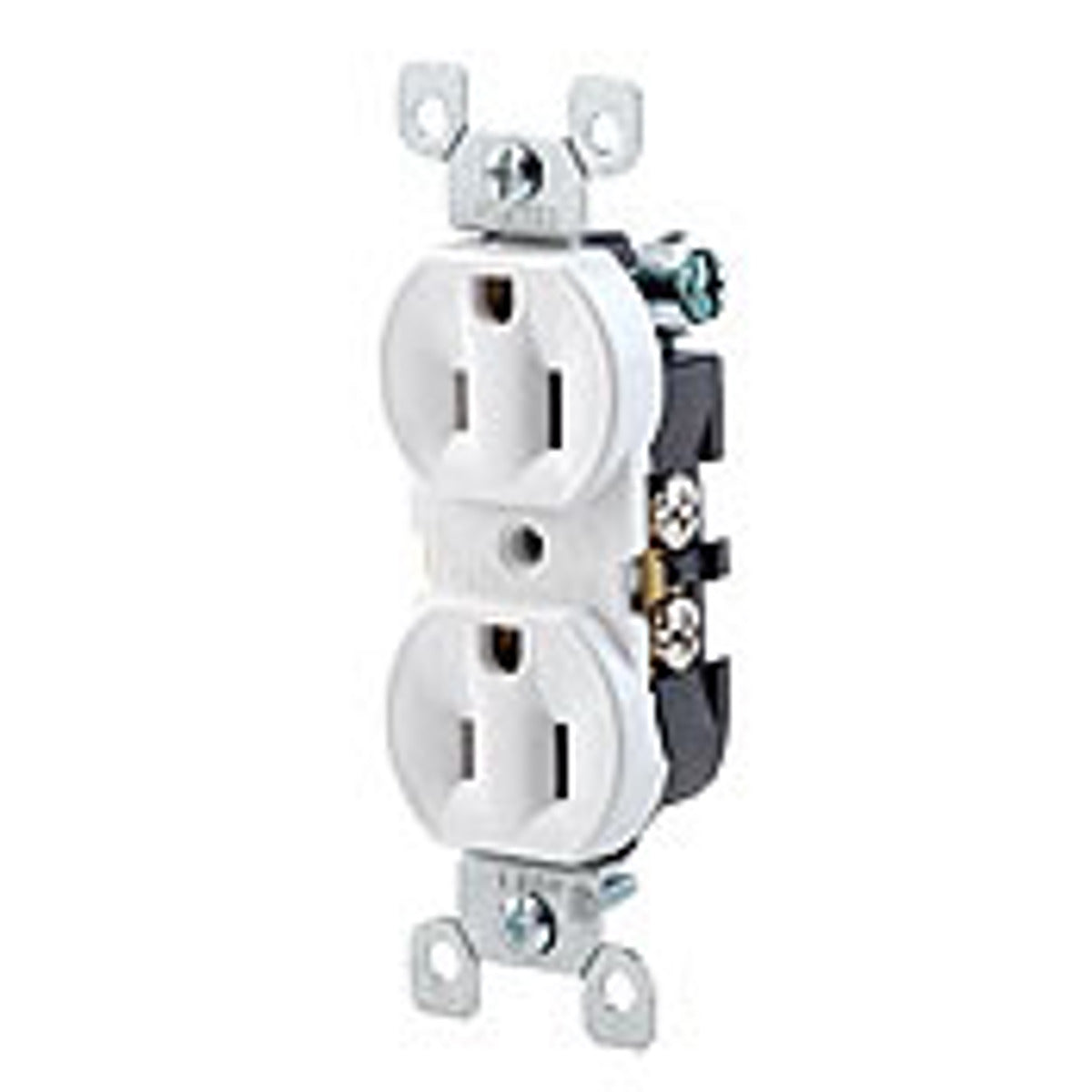

Leviton 5320-WCP Grounding Duplex Receptacle 125 VAC, 15 Amp

Brand: LEVITON
SKU: 5320-WCP
Availability: In Stock

Ships same day if ordered by 12 pm
$39.04
$39.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 5320-WCP is a straight blade, duplex grounding receptacle. Rated for 125 VAC and 15 A, it features a NEMA 5-15R rating and is suitable for commercial applications. Constructed from thermoplastic, it offers a quick-wire push-in/side wire terminal for easy installation. Ideal for residential applications.

  • Duplex grounding receptacle
  • Thermoplastic construction
  • Quick-wire push-in/side wire terminal

Product Highlights

This receptacle is designed for residential applications and offers easy installation with its quick-wire push-in/side wire terminal.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 5320-WCP
  • Country of Origin: Please Contact Customer Service
Technical Specifications
Type
Duplex Grounding
Grade
Commercial
Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Manufacturer
LEVITON
Terminal Type
Quick-Wire Push-In/Side Wire
Voltage Rating
125 VAC
Amperage Rating
15 A
Number of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Dimensions
4.2 in H x 1.33 in W x 19 in D
Mounting
Screw
Connection
Screw terminal
Country of Origin
CN
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Standard
NOM Certified (057);CSA Certified (File LR-406);UL Listed 498;UL Listed 1561
Wire Size
14 AWG
Application
Commercial
Special Features
Grounding; 2-Year Limited Warranty
Body Material
Thermoplastic
Face Material
Thermoplastic
Strap Material
Steel
Termination
Quickwire Push-In & Side
Torque Range
14 – 18 in.-lbs
UL 498
File E13399
CSA C22.2 No. 42
File 152105; Class 6233-01
RoHS Compliant
False
Mounting Type
Wallplate, Flush
TC Connection
Quickwire Push-In and Side Wired
Certifications
UL
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Warranty Length
2 yr
Termination Type
Quickwire Push-In,Slide Wire
Size
4.2 H x 1.33 W x 19 D IN
Color
White
