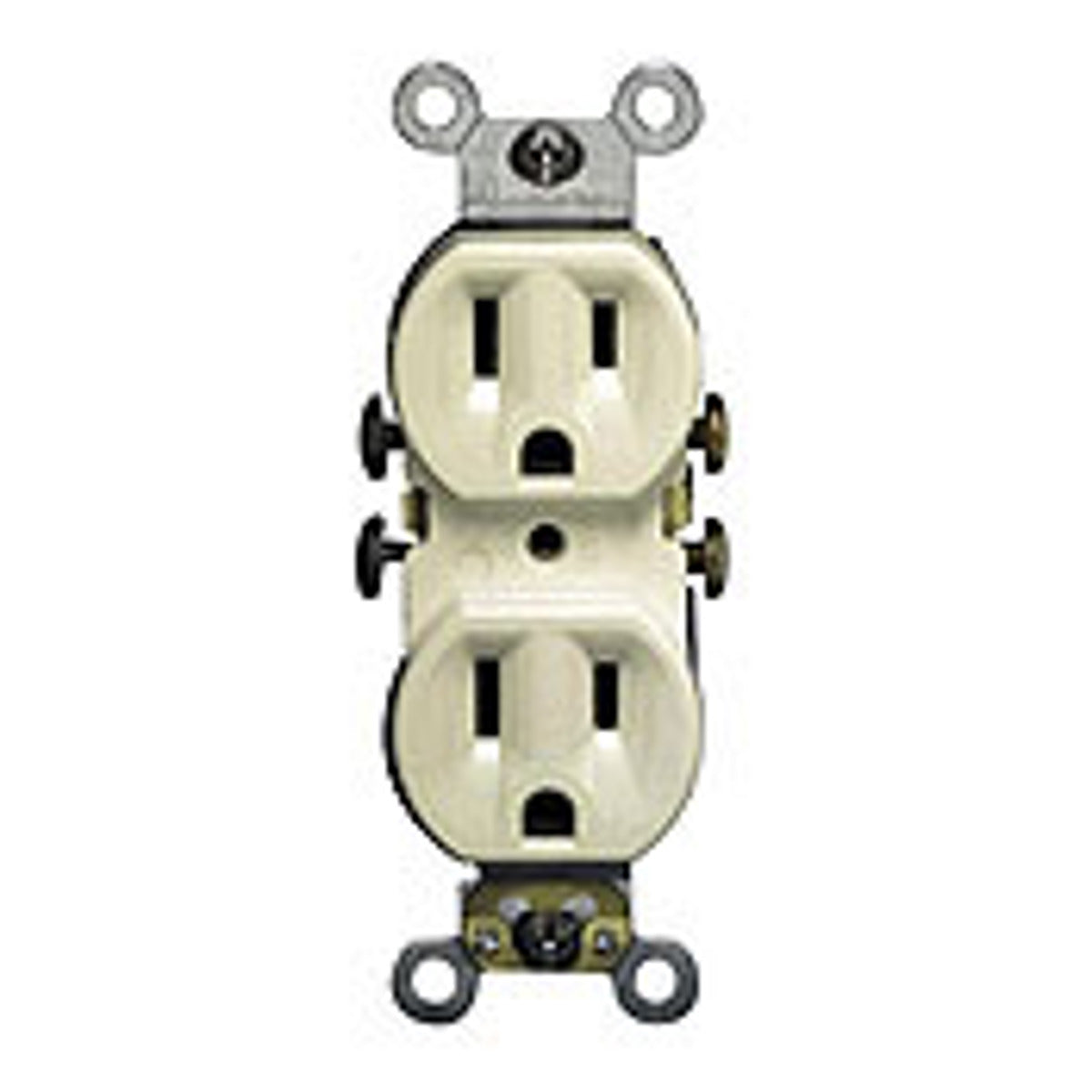

Leviton 5320-S Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R

Product Description

The Leviton 5320-S is a duplex receptacle designed for use in residential and commercial applications. It operates at 15 amps and 125 volts and is a self-grounding unit. This receptacle is made from thermoplastic material and features a brown color.

• Self-grounding design for safety.
• Compatible with both quick wire push-in and side wired connections.
• Rated for commercial use.

Product Highlights

The Leviton 5320-S offers reliable electrical connections and is suitable for various environments.

Product Information

Standard Information

• Manufacturer: Leviton
• Country of Origin: United States

Technical Specifications

• Catalog Number: 5320-S
• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: 5-15R
• Material: Thermoplastic
• Color: Brown
• Number of Wires: 3
• Number of Poles: 2
• Temperature Rating: -40 to +60 DEG C
• Environmental Conditions: Flammability rated V-2 per UL94
• Dimensions: 4.2 H x 1.33 W x 19 D inches
