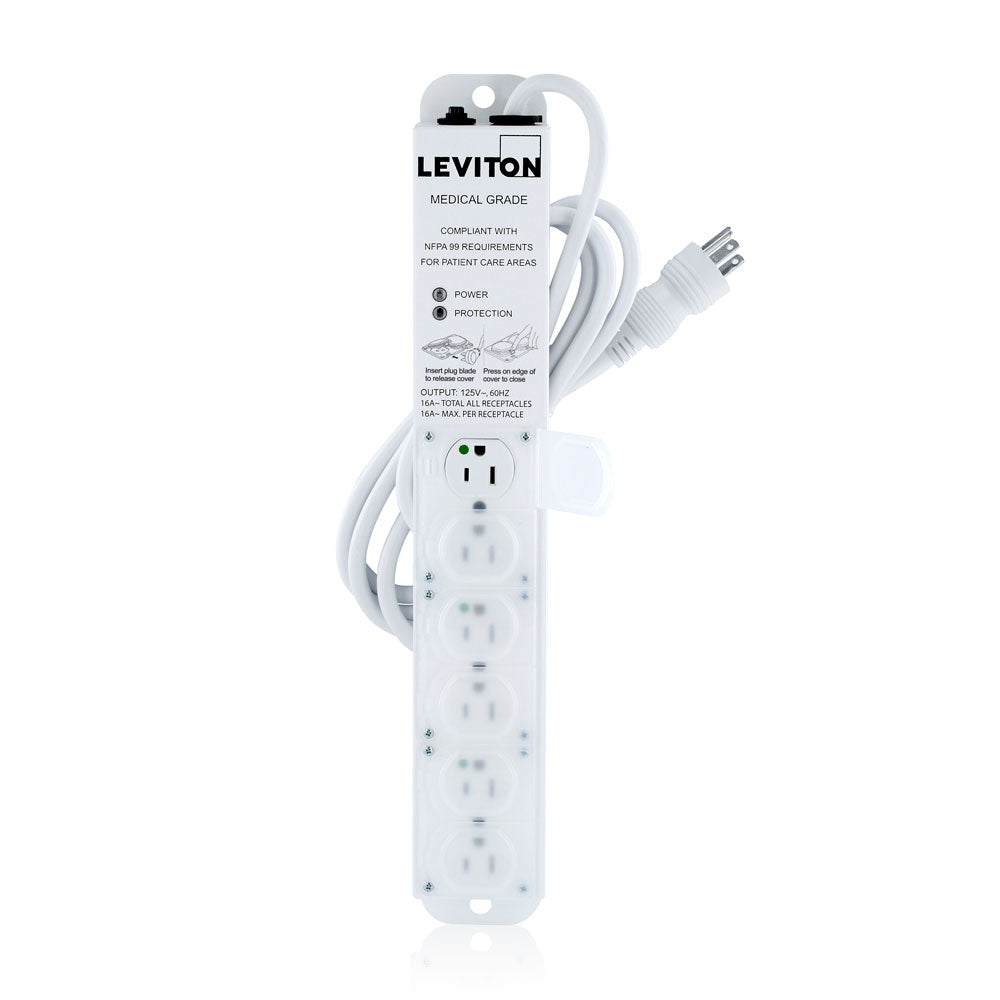

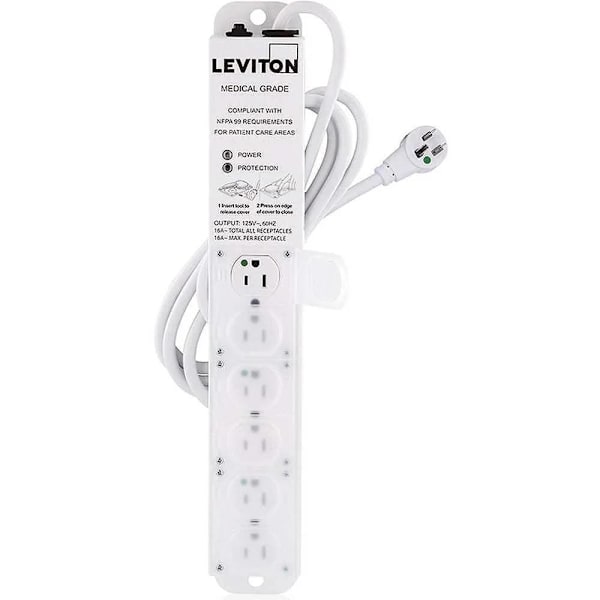

Leviton 5306M-1S7 Medical Grade Power Strip 15 Amp (7-FT)

Product Description

The LEVITON 5306M-1S7 is a 15 Amp, 125VAC medical grade surge protective power strip with 6 NEMA 5-15R outlets with locking covers and a 7-FT power cord. Operable in isolated power applications. Designed for use in health care facilities, including patient care areas. Meets electrical safety requirements specified in NFPA 99 (2012).

• All outlets are hospital grade, ensuring dependable performance
• Surge-protective models are UL 1449 3rd edition compliant
• Heavy duty steel construction withstands the rigors of demanding environments

Product Highlights

Medical grade power strip with surge protection, 6 outlets, and a 7-foot cord. Ideal for healthcare facilities.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5306M-1S7
• Country of Origin: Mexico

Technical Specifications

• Amperage: 15 A
• Cord Length: 7 Foot
• Frequency: 60Hz
• Grade: Medical
• Number of Receptacles: 6
• Surge Protection: Yes
• Surge Technology: MOV
• Voltage: 125 VAC
• Operating Temperature: 0 0 0C to 40 0 0C
• Storage Temperature: -10 0 0C to +50 0 0C
• Enclosure: Powder Coated Steel
• Line Cord: #14/3 SJT
• Outlet Covers: Polypropylene
• HG Outlet Configuration: NEMA 5-15R
• HG Plug Configuration: NEMA 5-15P
• Inform Technology: No
• Joules Rating: 644J
• MCOV: 150V
• Maximum Leakage Current: <100µA
• Maximum Surge Current, Per Mode (L-N): 27kA
• Noise Filtering: -6dB to -29dB (100kHz to 100MHz)
• Voltage Protection Rating (VPR) L-N, L-G, N-G: 600V, 600V, 500V
• ANSI/IEEE: Category A
• NFPA: NFPA 99 2012 ed
• UL 1363A and CSA C22.2: No. 21
• UL 1449 3rd Ed and CSA C22.2: No. 8
• UL 60601-1 and CSA C22.2: No.60601-1
• UL 60950-1 and CSA C22.2: No. 60950-1
• Warranty: 5-Year Limited
• Total Power Outlets: 6
• Special Feature: Surge Protection
• Maximum Current: 15 Amps
• Power Plug Type: Type B - 3 pin (North American)
• Surge Protection Rating: 644 Joules
• Plug Type: Type B
• Number of Ports: 6
• Compatible Devices: care
• Item Weight: 0.2 Pounds
• Style: 7-Foot
• Shape: Rectangle
• Enclosure Material: Alloy Steel
• Body Material: Thermoplastic
• Connection Type: Straight Blade
• Features: 644 Joule Rating
• Indoor/Outdoor: Indoor
• Maximum Continuing Operating Voltage: 125 V
• Mount Type: Desktop
• Number Of Outlets: 6
• Package Quantity: 1
• Surge Protection Capacity: 644 joules
• Product Height: 3 in.
• Product Length: 19 in.
• Product Width: 7 in.
• Height: 2.400
• Length: 19.300
• Size Measure: IN
• Weight: 4.200
• Weight Measure: LB
• Width: 6.900
• Certifications & Standards: UL Certified
• HazMat: Hazardous
