Leviton 5304M-1S7 medical grade power strip 125V 4 NEMA 5-15R outlets

Product Description

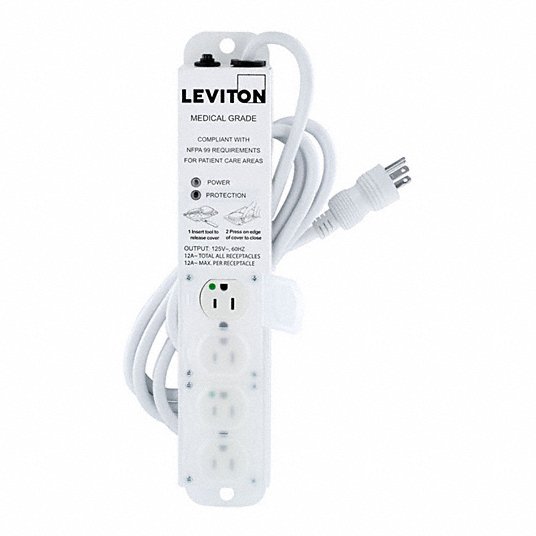

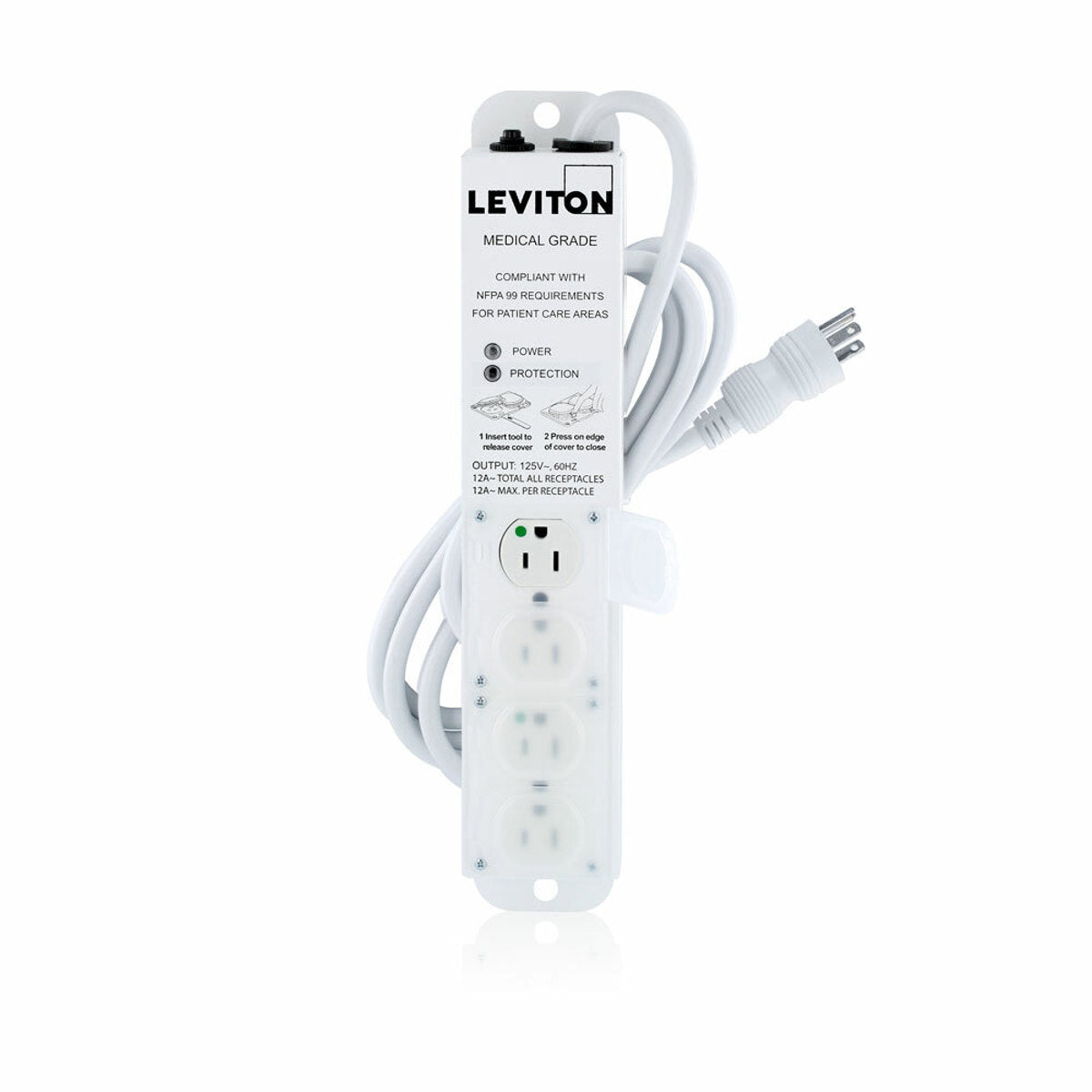

The LEVITON 5304M-1S7 is a medical grade, surge-protected power strip. It operates at 125V and features 4 NEMA 5-15R outlets with locking covers and a 7-ft power cord with a standard Hg NEMA 5-15P plug. It is ETL certified to UL standards for safety in patient care areas.

• Surge-protected
• 4 NEMA 5-15R Outlets With Locking Covers
• 7-ft Power Cord With Standard Hg NEMA 5-15P Plug

Product Highlights

Medical grade power strip with surge protection and locking outlets for healthcare facilities.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5304M-1S7
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 5304M-1S7
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Patient Care Areas
• Special Features: Med Grade
• Standard: UL 1363A
• UPC: 078477611814
• GTIN: 00078477611814
• Item Type: Surge Strip
• Amperage: 15 A
• Cord Length: 7 Foot
• Frequency: 60Hz
• Grade: Medical
• Number of Receptacles: 4
• Surge Protection: Yes
• Surge Technology: MOV
• Voltage: 125 VAC
• Operating Temperature: 0 C to 40 C
• Storage Temperature: -10 C to +50 C
• Enclosure: Powder Coated Steel
• Line Cord: #14/3 SJT
• Outlet Covers: Polypropylene
• HG Outlet Configuration: NEMA 5-15R
• HG Plug Configuration: NEMA 5-15P
• Inform Technology: No
• Joules Rating: 644J
• MCOV: 150V
• Maximum Leakage Current: <100 A
• Maximum Surge Current, Per Mode (L-N): 27kA
• Noise Filtering: -6dB to -29dB (100kHz to 100MHz)
• Voltage Protection Rating (VPR) L-N, L-G, N-G: 600V, 600V, 500V
• ANSI/IEEE: Category A
• NFPA: NFPA 99 2012 ed
• UL 1363A and CSA C22.2: No. 21
• UL 1449 3rd Ed and CSA C22.2: No. 8
• UL 60601-1 and CSA C22.2: No.60601-1
• UL 60950-1 and CSA C22.2: No. 60950-1
• Total Power Outlets: 4
• Special Feature: Surge Protection
• Maximum Current: 15 A
• Surge Protection Rating: 27 Kiloamps
• Plug Type: Type B
• Style: Rectangle
• Recommended Uses For Product: Monitoring
• Model Number: 5304M-1S7
• Mfr Part Number: 5304M-1S7
• Item Type Name: 15 Amp Medical Grade Power Strip, Surge Protected, 4-Outlet, 7' Cord
• Housing Material: Steel
• Outlet Strip Length: 13-13/16 in
• Power Indicator: Yes
• Rated Energy Absorption: 644 J
• Standards: ANSI/IEEE: Category A; NFPA: NFPA 99 2012 ed; UL 1363A and CSA C22.2: No. 21; UL 1449 3rd Ed and CSA C22.2: No. 8; UL 60601-1 and CSA C22.2: No.60601-1; UL 60950-1 and CSA C22.2: No. 60950-1
• Surge Protection Indicator: Yes
• Total Number of Outlets: 4
• Trade Designation: SJT
• Height: 1-11/16 in
• Mounting Style: Screw
• NEMA Plug Configuration: 5-15P
• Noise Attenuation: -6 to -29dB
• Medical Facility Use UL Rating: UL 60601-1; UL 1363A; UL 1449
• Frequency Rating: 60 Hz
• Receptacle Type: NEMA 5-15R
• Series: 5300
• Type: Surge Protective
• Voltage Rating: 125 V AC, 125 VAC
• ADI Part Number: LV-5304M1S7
• Product Name: Medical Grade Power Strip
• Product Type: Power Strips
