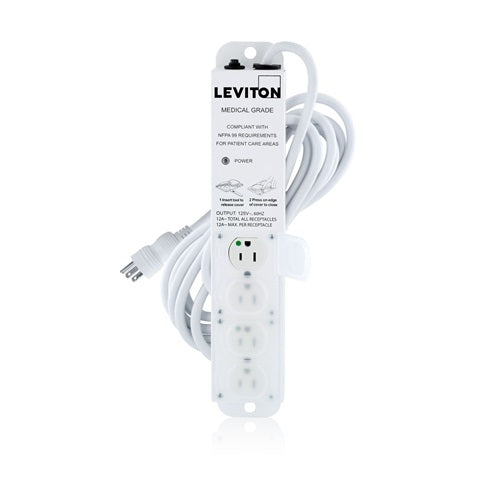

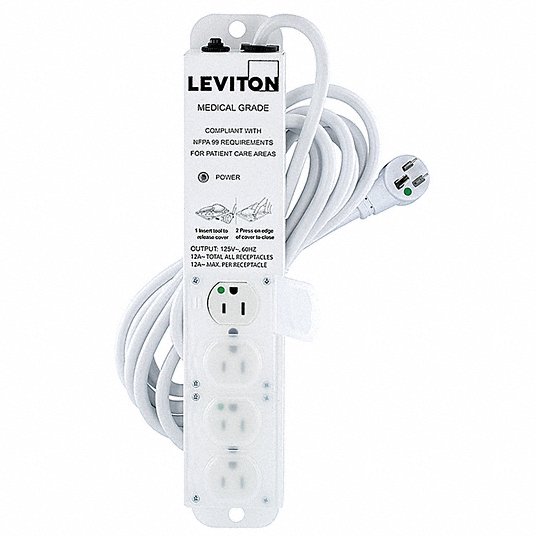

Leviton 5304M-1N5 Medical Grade Power Strip 15 Amp 15-FT Cord

Product Description

The LEVITON 5304M-1N5 medical grade power strip is a 15 Amp, 125VAC power strip with 4 NEMA 5-15R outlets with locking covers and a 15-FT power cord. This Special Purpose Relocatable Power Tap (SPRPT) is UL 1363A, UL 60601-1, and UL 60950-1 compliant and operable in isolated power applications.

• 15 Amp (12 Amp Max Continuous Load) 125VAC, Medical Grade Power Strip With 4 NEMA 5-15R Outlets With Locking Covers, 15-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, and UL 60950-1.
• Operable in Isolated Power Application
• White powder coating contains up to 25% post-consumer recycled plastic, mitigating plastic waste and reducing carbon emissions

Product Highlights

This medical-grade power strip is designed for use in healthcare facilities and meets safety regulations. It features locking safety covers, overload protection, and is UL compliant.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5304M-1N5
• Country of Origin: Mexico

Technical Specifications

• Amperage: 15 A
• Cord Length: 15 Foot
• Frequency: 60Hz
• Grade: Medical
• Number of Receptacles: 4
• Surge Protection: No
• Voltage: 125 VAC
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to +50°C
• Enclosure: Powder Coated Steel
• Line Cord: #14/3 SJT
• Outlet Covers: Polypropylene
• HG Outlet Configuration: NEMA 5-15R
• HG Plug Configuration: NEMA 5-15P
• Inform Technology: No
• Maximum Leakage Current: <100µA
• NFPA: NFPA 99 2012 ed
• UL 1363A and CSA C22.2: No. 21
• UL 60601-1 and CSA C22.2: No.60601-1
• UL 60950-1 and CSA C22.2: No. 60950-1
• Warranty: 5-Year Limited
• Total Power Outlets: 4
• Special Feature: Waterproof
• Maximum Current: 15 A
• Power Plug Type: Type B - 3 pin (North American)
• Plug Type: Type B
• Number of Ports: 4
• Compatible Devices: care,health care
• Enclosure Material: Alloy Steel
• Application: Medical
• Communication Port: None
• Height: 1-21/32 in
• Housing Material: Metal
• Includes: Locking Cover
• Maximum Surge Current: 27 kA
• Medical Facility Use UL Rating: UL 60601-1; UL 1363A; UL 1449
• Mounting Style: Screw
• NEMA Plug Configuration: 5-20P
• NEMA Receptacle Configuration: 5-15R
• Noise Attenuation: 6dB to -29dB (100kHz to 100MHz)
• Number of Conductors: 3
• Number of Outlet Rows: 4
• Number of Power Switches: 0
• Number of Transformer Outlets: 0
• Outlet Strip Length: 13-13/16 in
• Plug Style: Straight
• Power Indicator: Yes
• Product Type: Outlet Strip
• Rated Energy Absorption: 644 J
• Special Features: Special Purpose Relocatable Power Tap (SPRPT)
• Standards: UL 1363A; UL 1363A AND CSA C22 2 No. 21; UL 60601 1 and CSA C22 2 No.60601-1; UL 60601-1; UL 60950 1 and CSA C22 2 No. 60950-1; UL 60950-1
• Surge Protection Indicator: No
• Total Number of Outlets: 4
• Trade Designation: SJT
• Wire Size: 14 AWG
• AC: 125 V
• output connectors: 4
• input: NEMA 5-15
• UPC: 078477611807
