Product Description

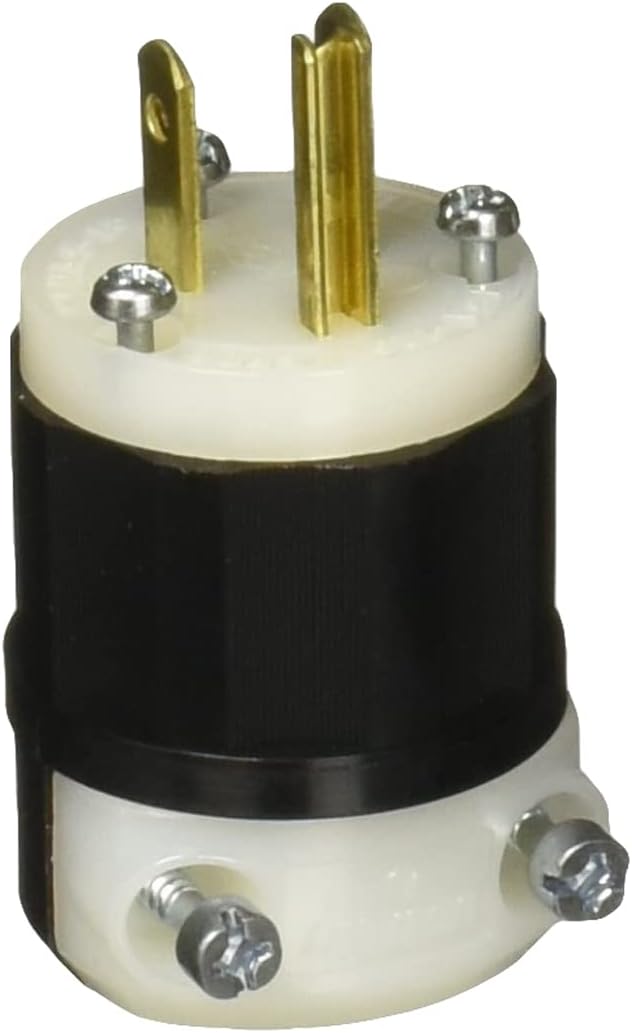

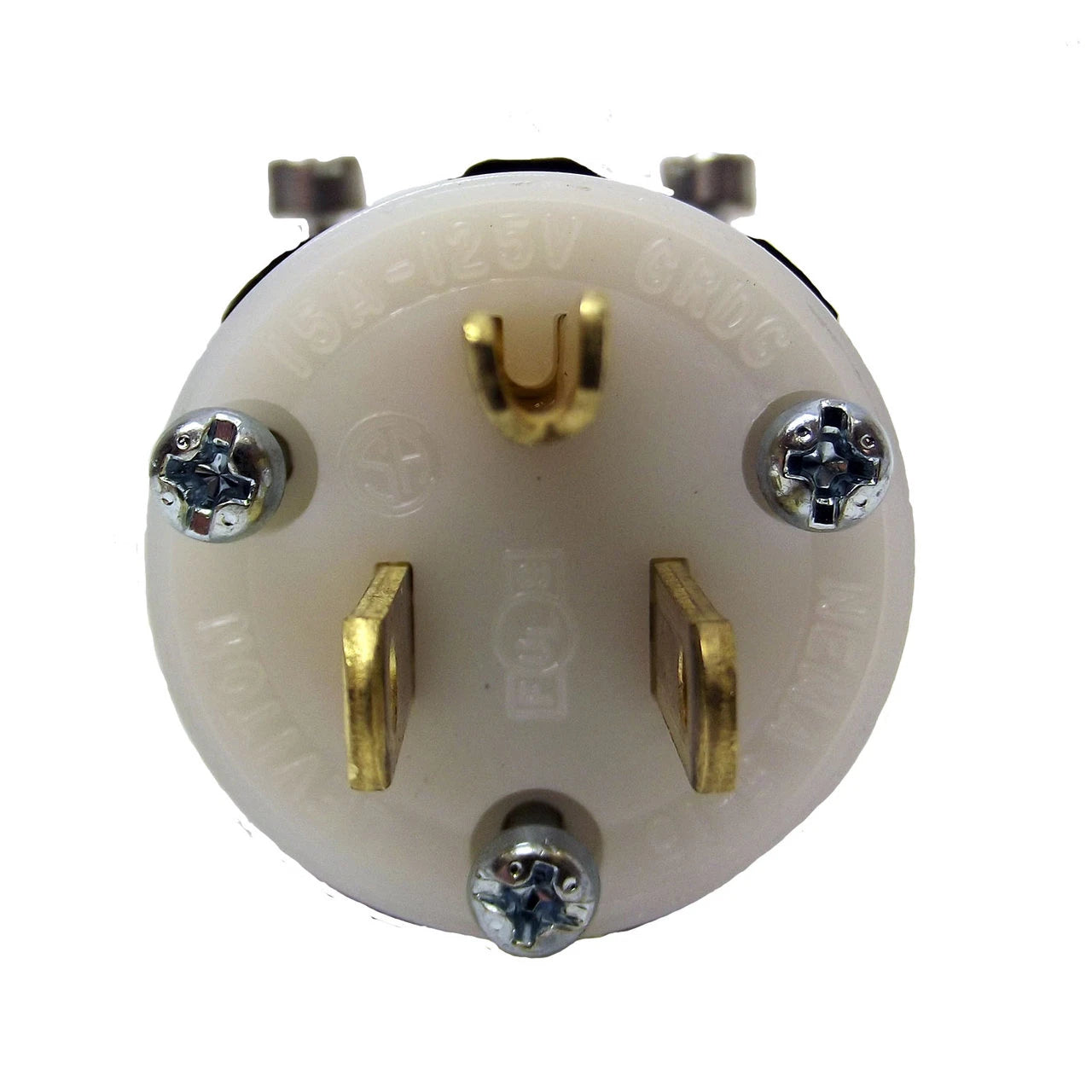

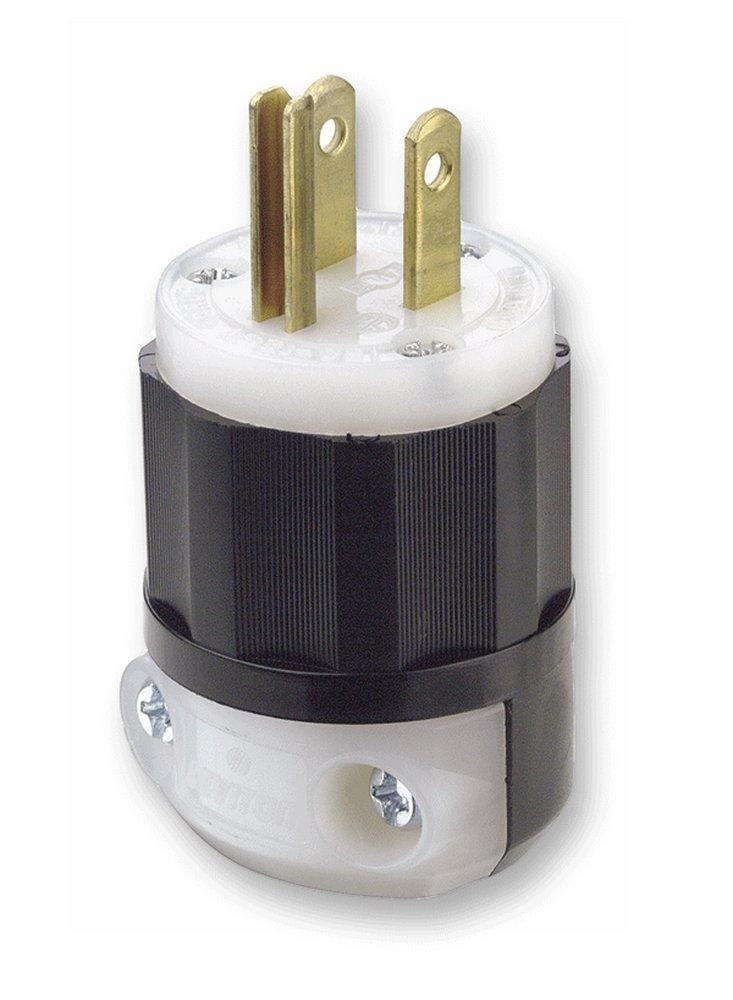

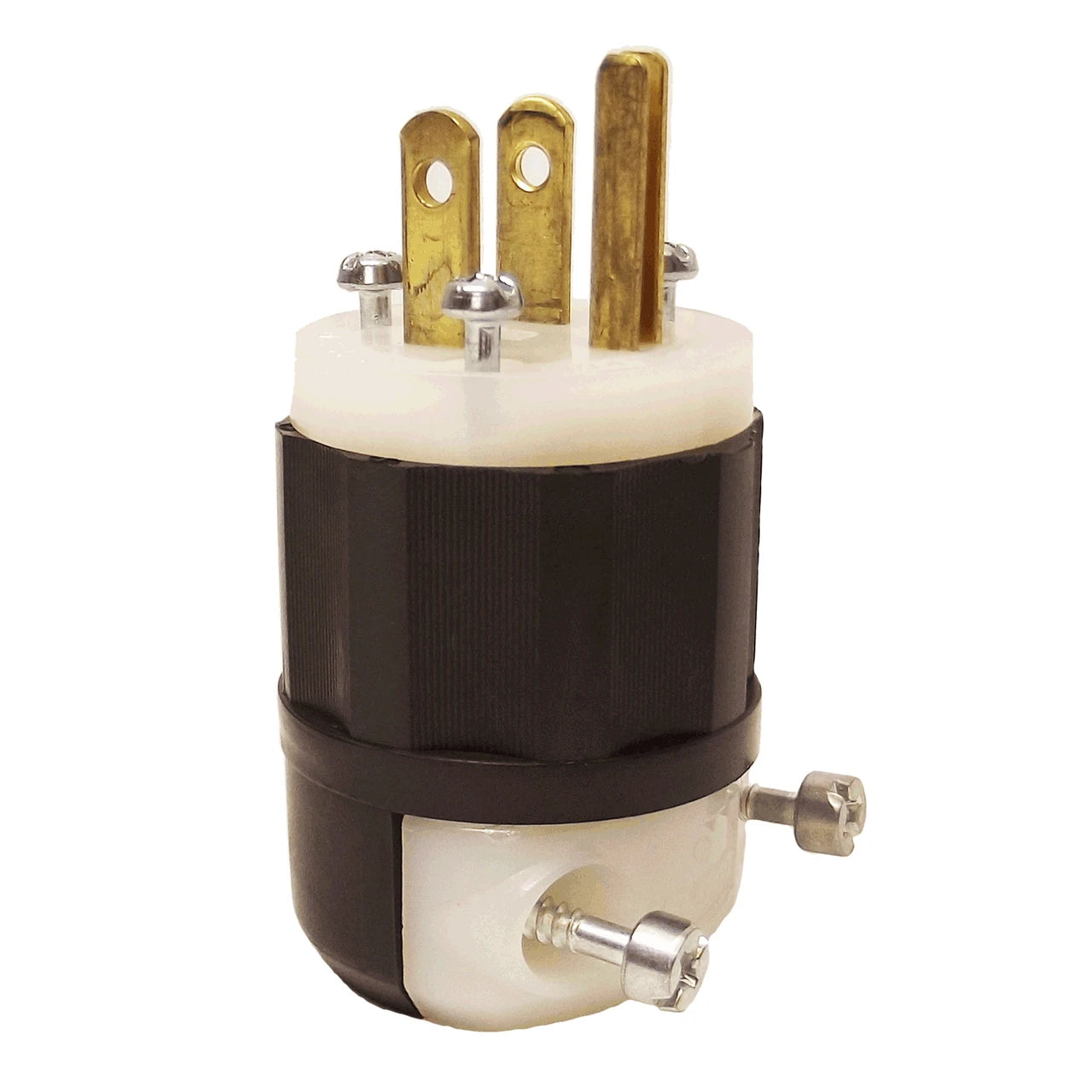

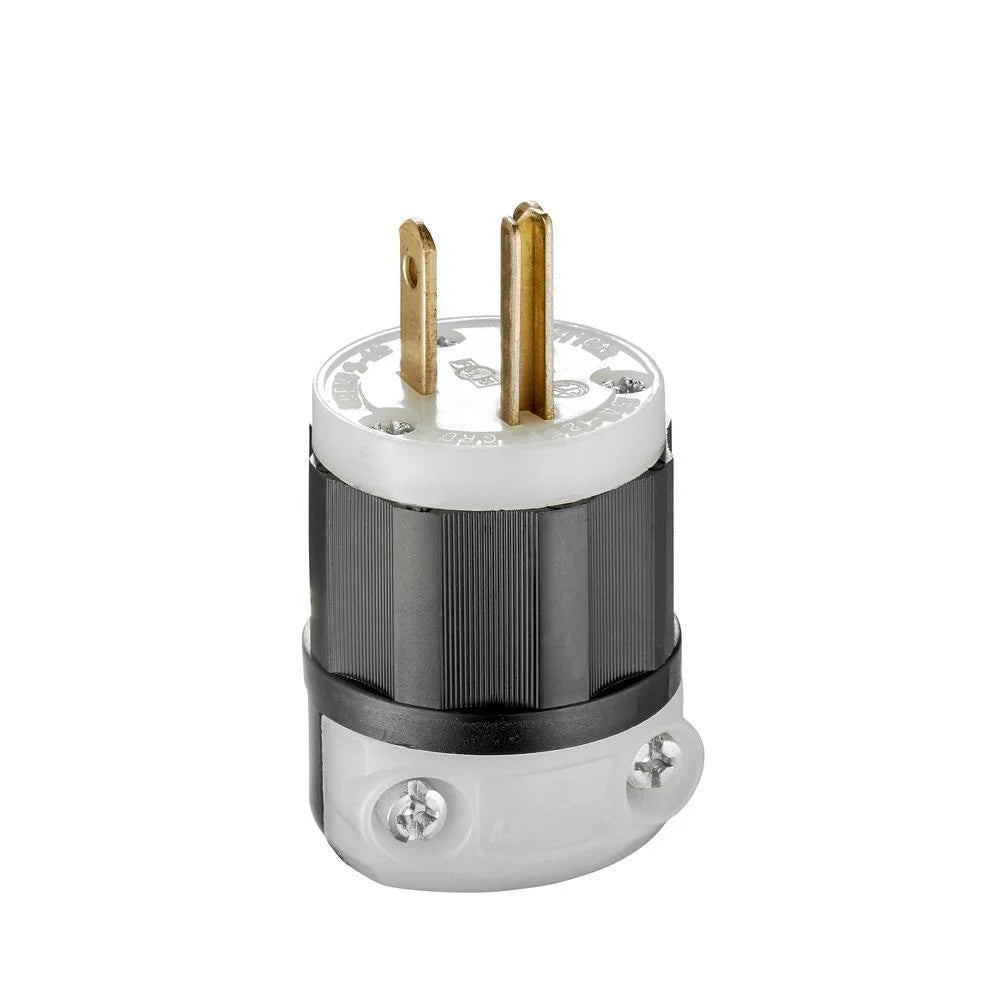

The Leviton 5266-C is an industrial-grade straight blade plug rated for 15A and 125V. Constructed with impact-modified nylon, this plug is designed for durability and resistance to chemicals and sunlight. It features solid brass contacts for enhanced conductivity and a unique cord clamp that accepts a wide range of cord sizes. Ideal for industrial applications.
- Industrial Grade
- Straight Blade
- Grounding
Product Highlights
Durable nylon construction, solid brass contacts, and a versatile cord clamp make this plug ideal for demanding environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5266-C
-
Country of Origin: US
Technical Specifications
-
Voltage: 125 Volts
-
Material: Nylon
-
Power Source: Wired Electric
-
Amperage: 15 Amps
-
Number Of Poles: 2
-
Number Of Wires: 3
-
Item [Specifications]: Straight Blade Plug
-
Grade [Specifications]: General Use
-
Phase [Specifications]: Single
-
Market [Specifications]: Industrial
-
Shrouded [Specifications]: No
-
Cord Size [Specifications]: 0.23 in to 0.685 in
-
Grounding [Specifications]: Grounded
-
IP Rating [Specifications]: Not Rated
-
Polarized [Specifications]: Yes
-
Standards [Specifications]: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393
-
Body Length [Specifications]: 1.98 in
-
Wiring Style [Specifications]: Standard
-
Face Diameter [Specifications]: 1.39 in
-
Housing Color [Specifications]: Black, White
-
Blade Material [Specifications]: Brass
-
Current Rating [Specifications]: 15 A
-
Overall Length [Specifications]: 2.81 in
-
Voltage Rating [Specifications]: 125V AC
-
For Environment [Specifications]: Dry
-
Housing Material [Specifications]: Impact Modified Nylon
-
Number of Blades [Specifications]: 3.0
-
Outside Diameter [Specifications]: 1.53 in
-
Special Features [Specifications]: Chemical Resistant, Resists Impact, Rough Use, Sunlight
-
Horsepower Rating [Specifications]: 1/2 hp
-
Maximum Wire Size [Specifications]: 10 AWG
-
Minimum Wire Size [Specifications]: 18 AWG
-
NEMA Configuration [Specifications]: 5-15
-
Insulation Material [Specifications]: Nylon
-
Wire Connection Type [Specifications]: Screw Terminals
-
NEMA Enclosure Rating [Specifications]: Not Rated
-
Resistance Properties [Specifications]: Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
-
Connection Orientation [Specifications]: Straight
-
NEMA Plug Configuration [Specifications]: 5-15P
-
UL 94 Flammability Rating [Specifications]: V-2
-
For Maximum Cable Diameter [Specifications]: 0.685 in
-
For Minimum Cable Diameter [Specifications]: 0.23 in
-
Amps - Plugs and Receptacles [Specifications]: 15 A
-
Item - Plugs and Receptacles [Specifications]: Straight Blade Plug
-
Color - Plugs and Receptacles [Specifications]: Black, White
-
Grade - Plugs and Receptacles [Specifications]: Industrial
-
Maximum Operating Temperature [Specifications]: 60 Degrees C
-
Minimum Operating Temperature [Specifications]: -40 Degrees C
-
Voltage - Plugs and Receptacles [Specifications]: 125VAC
-
Hazardous Location Specification [Specifications]: Not Applicable
-
Country of Origin (subject to change) [Specifications]: United States
-
NEMA Plug Configuration - Plugs and Receptacles [Specifications]: 5-15P
-
Approval: UL 498, CSA C22.2, NOM 057
-
Configuration: 5-15P
-
Constructional Feature: Impact/Sunlight/Chemical Resistant
-
Cord Size: 0.245 to 0.7 Inch
-
Ground Type: Grounding
-
Material [Specifications]: Impact Modified Nylon
-
Temperature Rating: -40 to 60 Deg C
-
Voltage Rating: 125-Volts
-
Current Rating: 15-Amps
-
Wire Size: 18 - 10-AWG
-
Cord Range: 0.245 - 0.7-Inch
-
Flammability Rating: HB per UL94
-
Dielectric Strength: 2000-Volts per UL498
-
Amperage Rating: 15 A
-
NEMA Rating: NEMA 5-15P
-
Type: Cable Mount Grounding
-
Terminal Type: Screw
-
Operating Temperature: -40 to 60 Degrees C
-
Assembly Screws: Steel, Zinc Plated
-
Blades/Contacts: Solid Brass
-
Body Material: Impact Modified Nylon
-
Wire Gauge: 18-10 AWG
-
Pole: 2
-
Wire: 3
-
Ground: Grounding
