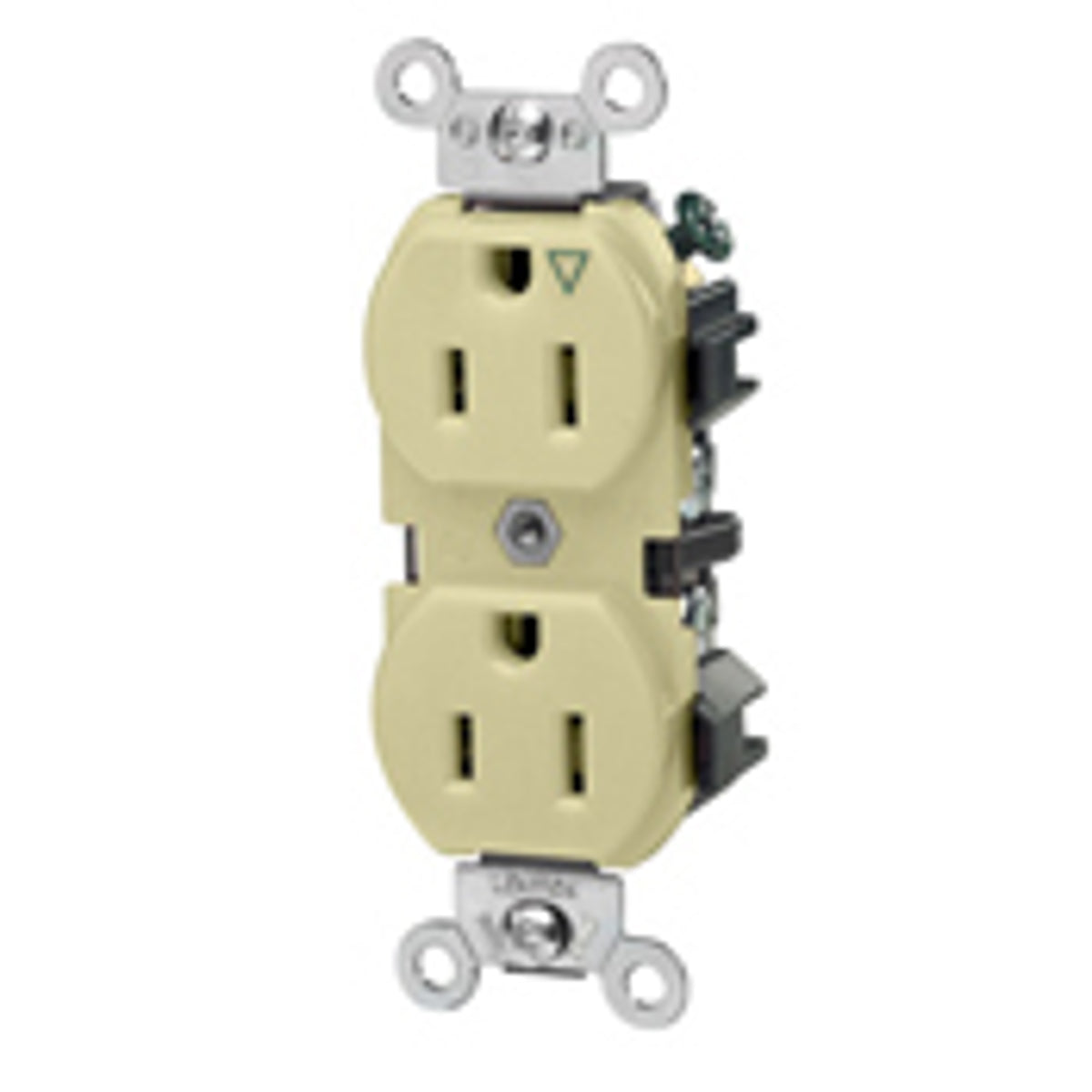

Leviton 5262-IGI Receptacle DX BL STR 125VAC 15A 2 3

Product Description

Leviton 5262-IGI is a heavy duty isolated ground duplex receptacle rated for one hundred twenty-five volts and fifteen amperes. It features a configuration of two poles and three wires. The receptacle has a NEMA 5-15R rating and is designed for industrial and specification-grade applications. Its thermoplastic construction allows for use in diverse environments, ensuring durability and safety.

• Impact-resistant thermoplastic nylon body
• Back and side wiring options for flexible installation
• NEMA enclosure rated for industrial use

Product Highlights

This receptacle supports fast and easy installation, ideal for both commercial and industrial settings. With features focused on connection reliability, it provides excellent conductivity and reduces oxidation.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Dimensions: 4.06 in H x 1.33 in W x 1.12 in D
• Material: Thermoplastic
• Enclosure: NEMA WD-1/WD-6
